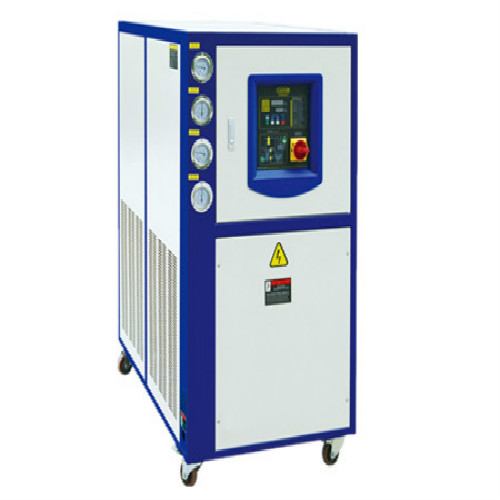

8HP-20HP(5RT~17RT)Water cooled scroll chiller

Description

8HP-20HP(5RT~17RT)Water cooled scroll chiller

Model ：DGET-8W(D),   DGET-10W(D),

              DGET-12W(D),  DGET-15W(D),    DGET-20W(D)

No.：25

Details information

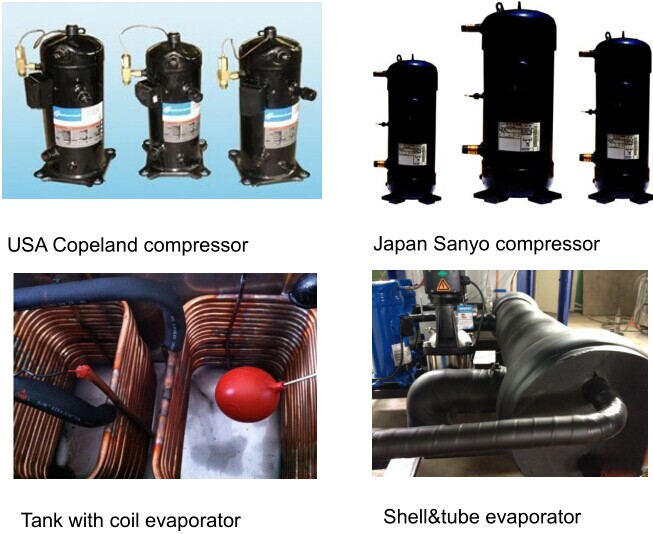

· Compressor:Hermetic scroll type, adopt import brand SANYO,COPELAND,DANFOSS and etc;

· Evaporator: two type optional, tank with coil/shell and tube, copper adopt 1mm to ensure the long working life;

· Condenser:Shell and tube, it have to connect with cooling tower.

· Refrigerant control:thermostatic expansion valve.

· Pump:Be included in the machine box, from 0.75kw to 2.25kw, customer can optional different according to your water flow need.

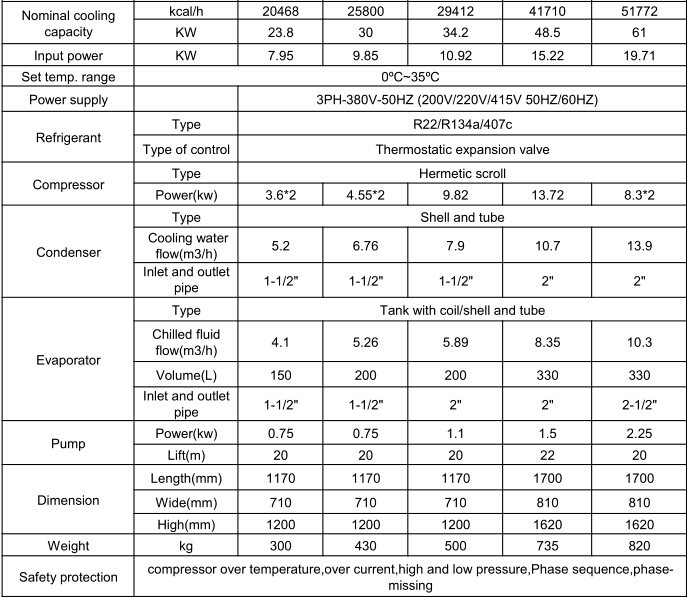

Note: Testing working condition:inlet chilled fluid temperature 12degree C,outlet chilled fluid temperature 7 degree C.

R22 charged, CFC free type R407C, R410A, R404A, R134A for option, high cooling efficiency;

Power supply: 3PH220V/380V/415V/440V/480V 50Hz/60HZ
