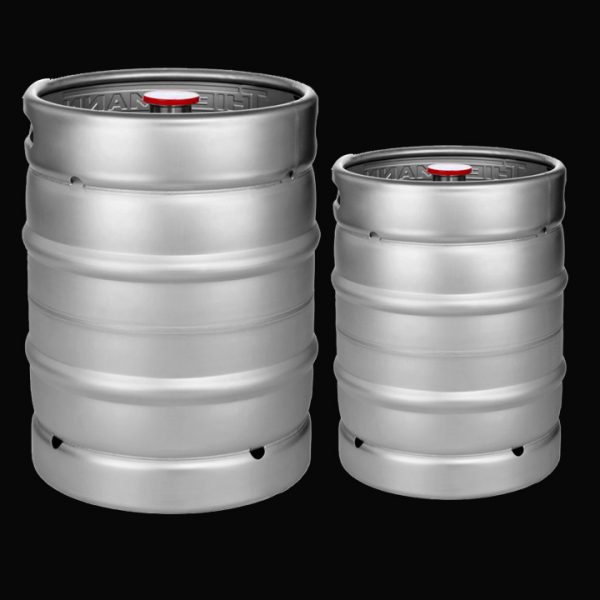

KEG-20 European stainless steel beer barrel KEG 20 liters

Description

Description

Stainless steel beer barrels type KEG-20 (equipped with one choosed coupler/connector from types A, G, S, M) with usable volume 20 liters = 1/6 barrel = 5.2 gallons = 41 pints = 55 12oz bottles (Sixtel). The beer barrels are produced according to the European standards. Beer kegs are special barrels for storage of carbonated beverages under pressure, designed for the distribution of beverages to restaurants. They are designed also for the serving beverages directly into glasses in pubs using a beer dispensing equipment.

High quality stainless steel, the highest standard of workmanship, the safety burst point and great advertising potential on the barrel, make this the perfect container for your beverage.

Main properties:

• Usable volume : 20 litres
• 3 bar or 7 bar operating pressure
• Material: 1.4301 or 1.4571
• Extremely robust and durable
• Safety bursting point
• All standard neck and fitting types
• Coding: character code, transponder, barcode, QR code
• Stacking rim on request

Barrel branding possibilities:

• 2-colour print on barrel
• Stickers on barrel
• Coloured rings on barrel
• Embossing on top ring
• Laser inscription on neck and base



Material thickness :

• Top chimb : 1.7 mm
• KEG body : 1.5 mm
• Bottom chimb : 2.0 mm



The basic price includes :

• Fine pitch thread neck 2″ x 14 TPI or coarse pitch thread neck Rd 52 x 1/6″
• Coupler (upper connector) – selected type
• Safety burst point
• KEG-numbering



Optional equipment :

• Colour band between the rolling rims : 1.00 Eur
• Colour printing : Price upon request
• Stackability (US-type gallon kegs are not stackable) : 1.60 Eur
• Top chimb of 2 mm wall thickness instead of 1.7 mm : 1.60 Eur
• Vent groove in the neck : 1.60 Eur
• MicroMatic safety neck : 1.00 Eur
• Draft safety neck : 2.90 Eur
• Safety neck type BS : 1.90 Eur
• Assembly of two-piece spear : 1.00 Eur
• Transponder (read only) : Price upon request



Delivery time : On request



Parameters  :

• Total volume : 20.5 liters
• Filling volume : 20.0 liters
• Height : 285 mm
• External diameter : 395 mm
• Weight (full) : 28.5 kg
• Weight (empty) : 8.5 kg
• Material : standard AISI 304 (EN 1.4301). optional AISI 316 (EN 1.4571)
• Operating overpressure : standard 3 bar, optional 7 bar



---

Sizing for beer barrels – available volumes of KEG

A barrel (Bbl) is the standard unit for measuring volumes of kegs for beer. Depending on the brewery, beer is filled into various size containers, as follows:

1. EURO edition :

• KEG-60 …. 60 liters = 1/2 barrel = 15.5 gallons = 124 pints = 165 12oz bottles – (Full Size Keg)
• KEG-50 …. 50 liters = 13.2 gallons = 105 pints = 140 12oz bottles (Euro Keg)
• KEG-30 …. 30 liters = 1/4 barrel = 7.75-8.1 gallons = 62-66 pints = 83-88 12oz bottles (Pony Keg)
• KEG-20 …. 20 liters = 1/6 barrel = 5.2 gallons = 41 pints = 55 12oz bottles (Sixtel)

2. US edition :

• KEG-8G …. 7.75 gallons
• KEG-16G …. 15.5 gallons
