10 BBL brewing beer equipment whole set of brewery system

10 BBL brewing beer equipment is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery with the productivity of 50L to 5000L (50hl) per brew.

The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete “turnkey” The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.


Description

10 BBL brewing beer equipment is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery with the productivity of 50L to 5000L (50hl) per brew.

The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete “turnkey” The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.

Output/Brew 10 bbl
Brew/Week 2~6
Output/Week 20~60 bbl
Electric Supply 3phase/380(220, 415,440…)v/50 (60)Hz
Single Phase/ 220(110, 240…)v/50(60)Hz
Heating Source Electric/Steam
Area Request >45M2
Brewmaster 1

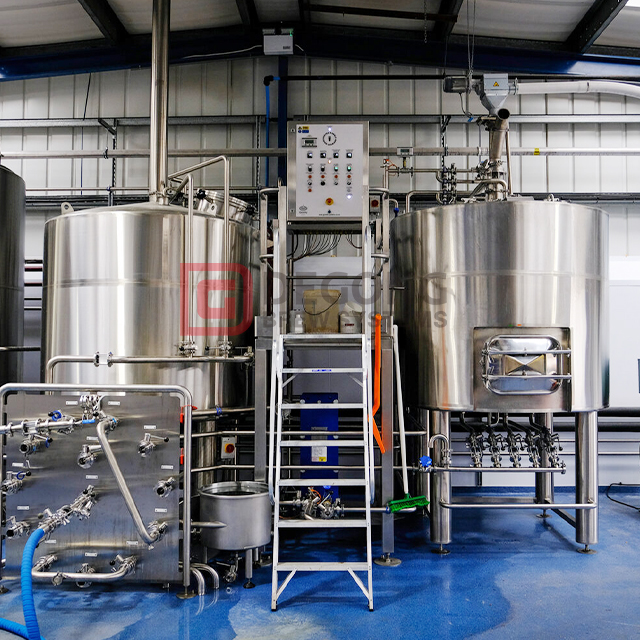

DEGONG 10 BBL brewing beer equipment

10 BBL brewing beer equipment Mash/Lauter tank

  • Mash/lauter tank with extra 20% head space
  • Dish head with top mounted manway
  • LED Light comes included in the tank, easy inside-checking between batches
  • CIP Spray Ball equipped with CIP Arm, butterfly valve on the end, easy to attach to your CIP Cart for cleaning ideally
  • Wort backflow pipeline equipped with sightglass
  • Hot & Tap water mixing valve trees& temperature gauge for sparging
  • Built-in Hot water sparging ring
  • Side mounted grain outdoor & grain chute

10 BBL brewing beer equipment Kettle/Whirlpool tank

  • Heating method: electric, steam heating
  • Working power: 220V, 60HZ, 1/3 Phases (customized)
  • Max working temperature: 100℃ (boiling up)
  • Kettle Tank with extra 40% head space
  • Tangential Whirlpool inlet equip on 1/3 position of kettle tank
  • Top mounted Steam condensing pipe (outdoor)
  • Top mounted glass manway
  • LED Light comes included in the tank, easy inside-checking between batches
  • CIP Spray Ball equipped with CIP Arm, butterfly valve on the end, easy to attach to your CIP Cart for cleaning ideally



How to develop a complete commercial brewery system?

For brewery system that will be setup in pub or restaurant, it has more factors need to be taken in to consideration:

1. Attractive
Brewery system is not only the equipment that provide beers, but also an art corner to attract clients. So, you need to consider the option that looks nice.

2. Save your time
Once you own your pub, the most treasureable thing would be your time, you need time to brew beers, finalize marketing, visit your clients, and manage the cash flow. Everybody has 24 hours a day, but you were trying to split it into 48 hours.

So, if there is a system can help you optimize the operation process, save your time to do more worthful works, then don’t hesitate, that is the suitable one for you.

3. Turnkey solution
Don’t worry, if you can find a supplier that can provide turnkey solution, don’t miss it. That will be the wonderful option at the moment.

From the owner’s point of view, all of them are important to start with. So sourcing the right supplier will be an significant choice. DEGONG provides consultation service from 0 to 1.
