Description
Decrisption of 1000L steam heated beer brewing equipment designed for brewpub / hotel
Customized 1000L steam heated beer brewing equipment (brewhouse + hot water tank)
1000L steam heated beer brewing equipment is specially designed and made for beer brewpub, hotel, restaurant. etc… Every set of beer brewing equipment can be made strictly based on customers’ specific requirements. Generally speaking, the 1000L steam heated beer brewing equipment can be divided into 2-vessel or 3-vessel. The cost of 3-vessel brewhouse is higher than that of 2-vessel, meanwhile, the working efficiency of 3-vessel is also higher. Brewing 2 batches of beer with 3-vessel 1000L craft beer brewing equipment is feasible, which means you can get 2000L wort per day. For technical paremeters of 1000L steam heated beer brewing equipment, please check below:
Mash/Lauter tun:
- Stainless steel 304 grist hydrator
- Upper and lower steam jackets (If the heating method is steam heating)
- Heavy duty false bottom with pillar support system
- CIP spray nozzles under false bottom
- Insulation: Polyurethane
- Thickness: Inner shell: 3.0mm; Outer shell:2.0mm; Dimple jacket: 1.5mm
- SS CIP high-low rotary spray ball
- Siemens/SEW motor with reducer
- Side manway for automatic spent grain discharge
- Automatic variable speed rake system
- Top manhole (Tempered glass)
Kettle/Whirlpool tun:
- Upper and lower steam jacket
- Design pressure of steam jacket:3.0 bar
- Working pressure: 1.5-2 bar
- Insulation: Polyurethane
- Tangential wort inlet
- Top manhole (Tempered glass)
- Thickness: Inner shell: 3.0mm; Outer shell:2.0mm; Dimple jacket: 1.5mm
Hot water tank:
- Steam heating method
- Capacity: 1000L which is double than that of brewhouse system
- Insulation: Polyurethane
- Thickness: Inner shell: 3.0mm; Outer shell:2.0mm; Dimple jacket: 1.5mm
- Top stainless steel manhole

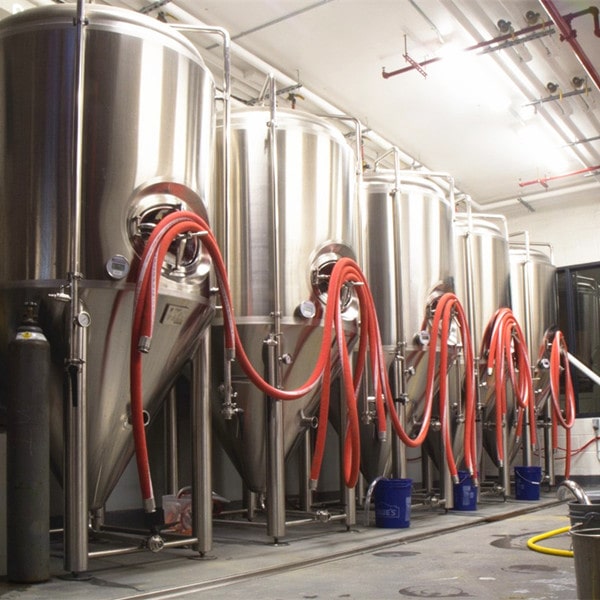

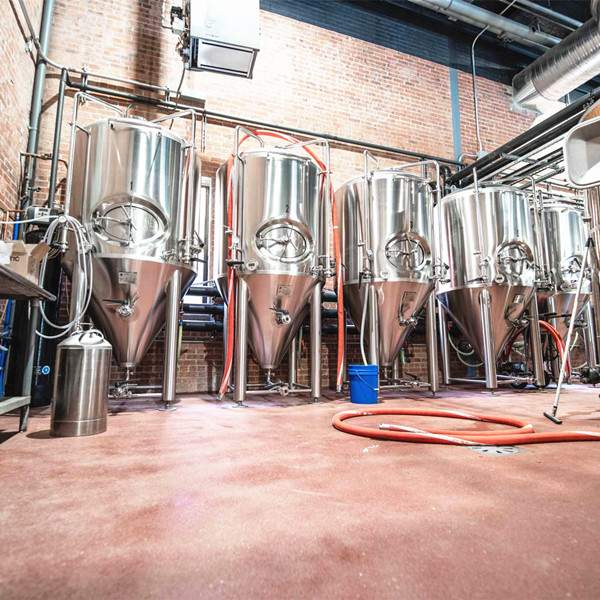

Description of fermentation tank of 1000L beer brewing equipment
Stainless steel pressurized and insulated 1000L beer fermentation tank
Beer fermentation tank:
- 100% TIG welded with sanitary stainles steel construction
- Thickness of inner shell: 3.0mm; outer shell: 2.0mm; glycol water jacket:1.5mm
- Design pressure: 3.0 bar
- Working perssure: 1.5-2 bar
- 4 pcs of heavy duty stainless steel legs with adjustable height and leveling footpads
Components for beer fermentation tank:
- Vacuum & pressure relief valve
- Dry hopping hole
- Pressure gauge
- Pressure bunding device
- Side manhole (Top manhole as option)
- Sample valve
- Temperature sensor
- Thermometer
- Racking arm
- Drain
Beer brewing process
Degong support your brewery project from the very beginning to the very end.
Certificate:
Our craft beer brewing equipment is CE ISO TUV approved.
Services
- As owning an experienced and creative engineering team, we could offer you professsional solutions for your plant and equipment.
- If you already have solutions, we could fabricate the equipment exactly as per your request.
- We could offer you trainning of brewing craft beer and operating equipment if needed
- 36months warranty
- Meanwhile, you can call or email to consult any relevant questions since we have a special line of after sale service, or you can communicate online and solve the problems
- Design of layout and 3D drawings
- Installation of craft beer brewing equipment
Delivery and packaging
