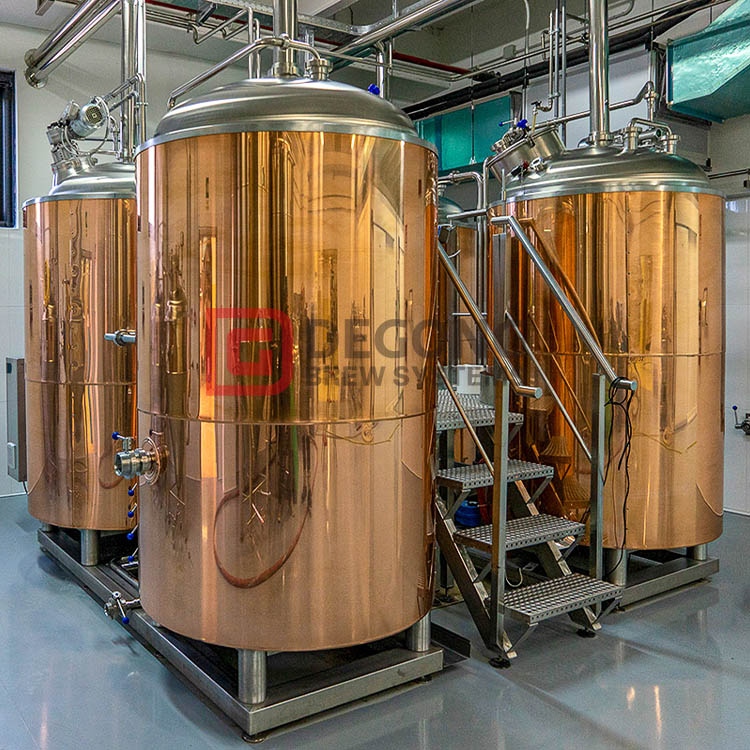

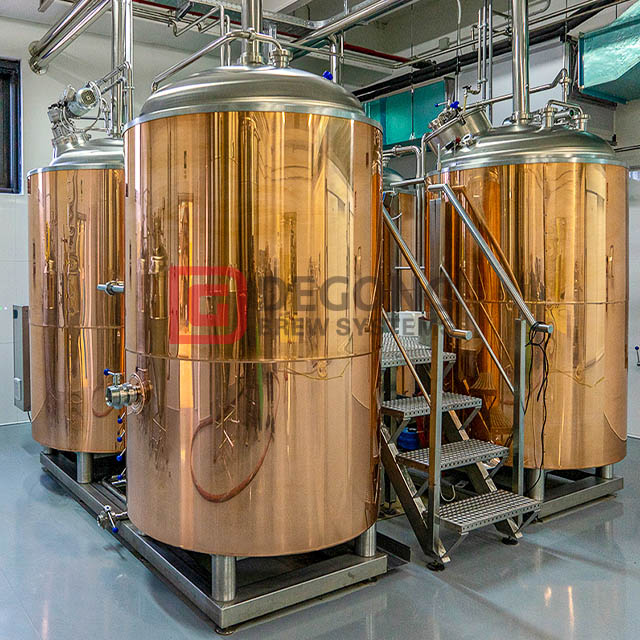

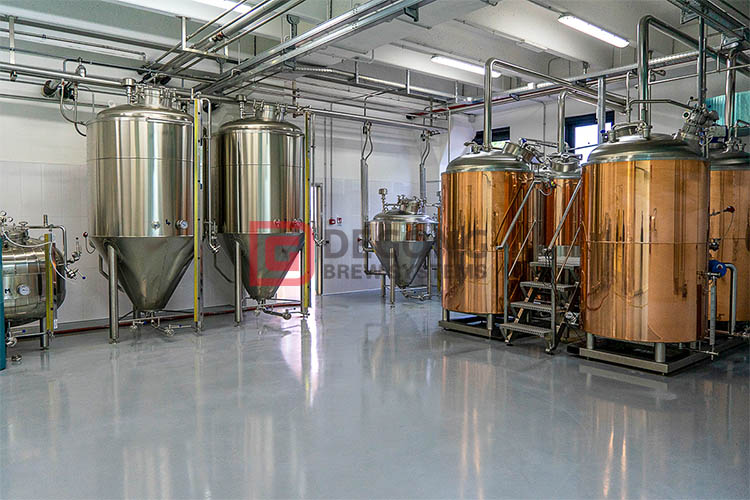

1000L copper beer brewing system 4 vessels copper brewhouse

Compared with stainless steel, copper beer brewing system looks much more luxury and attractive, so it is popular for brewing in some public houses such as brewpub, restaurant, hotel, bar, taproom etc. And copper beer brewing system can be installed behind bar counter or glass partition for attracting more visitors to observe the process of making beer. Brewhouse is typical 4-vessel, Mash tun+Lauter tun+Kettle+Whirlpool tun with hot liquor tank.


Description

1000L copper beer brewing system

Compared with stainless steel, copper beer brewing system looks much more luxury and attractive, so it is popular for brewing in some public houses such as brewpub, restaurant, hotel, bar, taproom etc. And the brewmaster can install a copper beer brewing system behind the bar or glass partition. The purpose is to attract more tourists to watch the beer making process. Brewhouse is typical 4-vessel, Mash tun+Lauter tun+Kettle+Whirlpool tun with hot liquor tank.

FEATURES

  • We plan and design complete breweries, all systems can be designed with the client’s input for a defined process;
  • Fully piped and wired, including valves and sensors;
  • Integrated pump system;
  • CIP system: separated CIP for individual tanks to prevent cross product interference;
  • Master brew interface control system (touch screen control panel),
  • Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;
  • Automated lautering, automated water mixing
  • High quality insulation effect: Rock wool thickness: 80mm
  • Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm
  • World’s top brands’ electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.
  • Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm
  • Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; Accurately calculate the number of tanks with the fermentation cycle of various beers; all manhole, valves, pressure gauges, fittings etc are included
  • Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included
  • Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request





1000L copper beer brewing system
