500L commercial automated steel beer brewery equipment for brewpub/ hotel/ restaurant

500L beer brewery system is always the most welcomed equipment for bar, hotel and restaurant. The material can be stainless steel or red copper which depends on the budget and preference. By far, our 500L brewing system has been distributed to Ireland, Switzerland, Germany, USA, Uruguay, Italy, Belgium, etc… It is CE, ISO, TUV certificated. Continue to read to learn more about it.

Category:

Enquiry about 500L commercial automated steel beer brewery equipment for brewpub/ hotel/ restaurant

Description

500L beer brewing equipment is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such 500L beer brewing equipment are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery (mini brewery) with the productivity of 500L (5hl) to 3500L (35hl) per brew.
The service includes: complete set of microbrewery equipment, turn key installation, recipes, free training. The performance of your Microbrewery (Brewery and mini brewery), can be also expanded in the future.



Brewhouse is deemed as the heart of a set of 500L beer brewing equipment. A 500L beer brewing equipment with a wonderful brewhouse can help you brew a batch of good beer. For 500L beer brewing equipment, it generally includes:

  • Mash/Lauter tank
  • Kettle/Whirlpool tank
  • Stainless Steel Work Platform with Handrails
  • 1000L Automated HLT
  • Fully Welded Sanitary Process Piping System
  • Complete Electrical Package

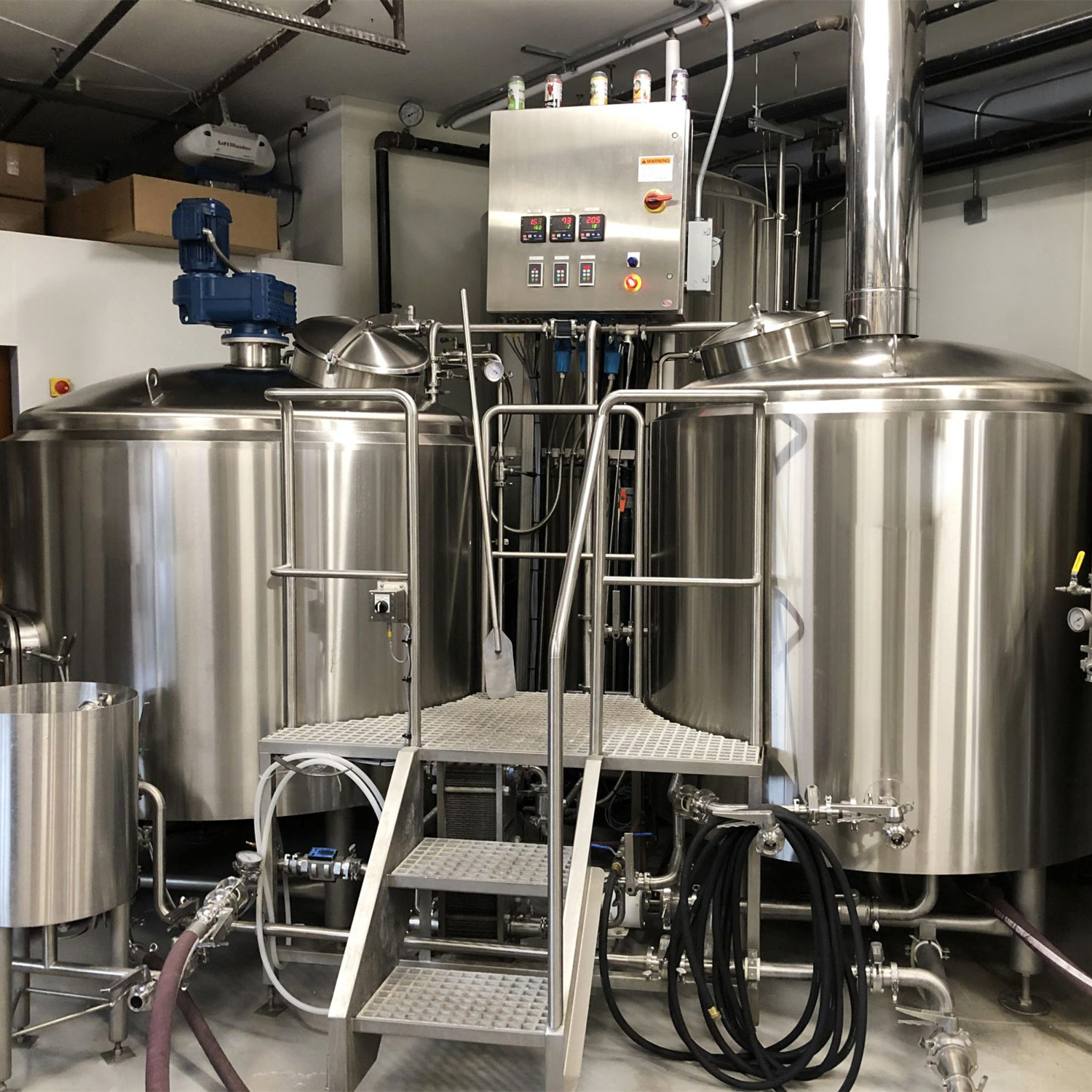

500L 2-vessel beer brewhouse beer brewing equipment assembly


Mash/Lauter assembly:



  • All stainless steel 304 construction, dished top and bottom.
  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
  • Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
  • Sealed access door.
  • Tempered glass top man door access.
  • Thermo-well installed with RTD for measuring temperature in mash / lauter tun; What’s more, RTD sensor is also provided
  • Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
  • Heavy duty legs assembly with standard leveling pads.
  • PU ( polyurethane) insulation with 14 gauge polished stainless steel outer shell.
  • ABB/ Siemens / SEW reducer for raker



Pneumatic valves for brewhouse



Stainless steel seamless hard pipes with TC connections



High quality steel 2-vessel automated beer brewhouse



Automated grain raker inside the the mash/lauter



Get the spend grain out of mash/Lauter tank through side man access



Kettle/Whirlpool tank assembly:



  • All stainless steel 304 construction, dished top and bottom.
  • Tempered glass top man door access.
  • 4 pieces of heavy duty leg assembly with standard leveling pads.
  • PU(polyurethane) insulation with 14 gauge polished stainless steel outer shell.
  • Steam flue slip flange with condensation gutter and drain port.
  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
  • Internally mounted/removable trub dam.
  • Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
  • Thermowell installed with RTD for measuring temperature in brew kettle.
  • Tangential wort inlet assembled inside the tank
  • With VFD blender assembled inside the tank to stir wort



Wort is boiled and whirlpooled inside the tank





Wort pumps:

  • 2 hp 208/230V 3 phase motor.
  • Pump mounted to the bottom of the access platform and complete with all piping connections.



Specification of 1000L fermenter



  • Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm; External-Jacket(SUS304) thickness: 1.5mm;
  • Heat exchange area：2.69 ㎡
  • Equipment with : cone 60°resist compression design，dripping
  • 100% TIG welding with pure argon gas shield
  • Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)
  • Exterior Finish: Oil brushed finish （ 2B, 8K Mirror finish optional)
  •  Interior full polished to 0.2~0.4 μm without dead corner
  • Insulated with high density Polyurethane foam 100mm
  • Glycol Jacket: Dimpled plate on cone and side
  • Stringent tank leakage test by water and pressured gas
  • Stringent Jacket leakage test by water and pressured gas
  • Sanitary side mounted manway with pressured door
  • TC connected CIP arm with 360° coverage spraying ball
  • CO2 blow-off arm with butterfly valve
  • Full sanitary metallic sealed sampling valve
  • Mechanical safe valve PVRV 2 bar on top
  • Hydraulic shock pressure gauge on CIP arm
  • Rotating racking arm and port on cone with butterfly valve
  • Tri-clamp discharge arm with butterfly valve
  • Thermowell for high accuracy temperature sensor
  • 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support
  • Dry hopping port 4” TC with solid end cap



Fermenter row



Brewer is adjusting the temperature of the fermenter



Brewer is recording temperature, status of beer inside the fermentation tank



Beer brewing process

Beer brewing process from malt milling to beer aging to bottling to delivery



Customer show









Delivery and packaging



Equipment is fit in container, parked at wharf





Wooden case will be needed if you just need a specific part of craft beer brewing equipment



Contact us



If you are eager to set up your own craft beer brewing equipment, then what are you waiting for? Just drop me a message and then I will do my best to support you.
