Description
1000L microbrewery equipment overview
Brand: DEGT
Material: stainless steel304/316 or red copper
Function: beer brewing
Heating method: steam/electric/gas
Welding: 100% Argon Arc welding
Electric element brand:
Siemens. Danfoss, Omron, Schneider
Condition:New
Voltage:220V/380V/440V(customized)
Certificate:CE/TUV/PED/ISO
Package:wooden box/sheet iron case
Origin:Jinan,Shandong,China
1000L microbrewery equipment introduce
system | configuration |
mill system | mill machine |
mash system |
mash/lauter tun boiling/whirlpool tun hot water tank plate heat exchanger pump operation plateform |
fermentation system |
fermentation tank yeast adding tank bright beer tank |
cooling system |
qlycol water tank chiller cold water tank |
CIP system |
alkali tank sterilization tank washing pump |
control system | siemens PLC control |
Filter system(optional) | Kieselguhr filter machine |
1000L microbrewery equipment details

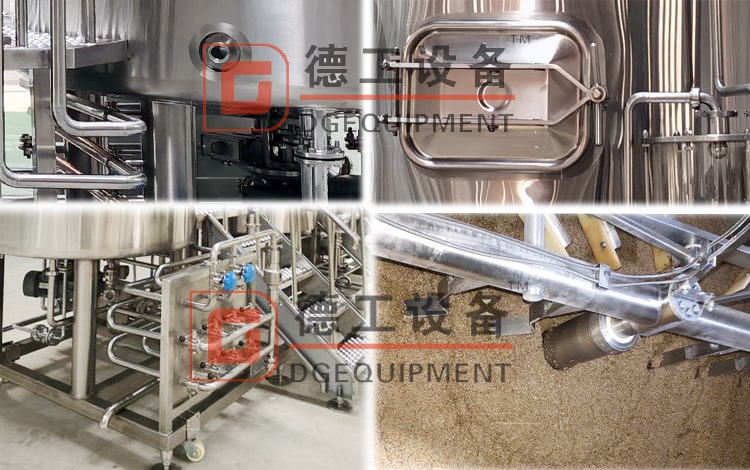

Brewhouse system:
This brewhouse system includes 3 tanks(mash/lauter tun + boiling/whirlpool tun + hot water tank),please check details as follows:
About brewhouse combination:(optional)
- mash/lauter tun+ boiling/whirlpool tun
- mash/boiling tun + lauter tun+whirlpool tun
- Mash tun+lauter tun+ boiling/whirlpool tun
- Mash tun+lauter tun+boiling tun+whirlpool tun
Interior wall stainless steel 304, 3mm;
exterior wall stainless steel 304, 2mm
Dome top, top manway with glass
Side manway, cone bottom 160 degree
insulation: polyurethane/rockwool 100mm;
with inside CIP washing ball, raking agitator, removable false bottom, sparging arm, sight glass,tangential inlet for whirlpool,thermowell for temperature sensor and thermometer…
spent grains hatch, plate heat exchanger(PHE),raker with ABB VFD motor
Fermentation system
Interior wall stainless steel 304, 3mm;
exterior wall stainless steel 304, 2mm
Dome top, conical bottom
Insulation: polyurethane 100mm
Glycol cooling jackets on both cylinder and cone
Inside 360 degree rotating CIP washing ball;
With CIP arm,Pressure gauge,relief&vacuum valve on top,sample valve,rotating racking arm on cone,thermometer,dry hops port on top
carbonation stone (optional)
100% TIG welding with pure argon gas shield
Interior Finish: Mirror polishing to 0.4~0.6μm without dead corner
Testing pressure: 3 bar, working pressure: 1.5bar
side manhole, temperature probe(PT100),mechanical regulation valve
For Your Reference:
1.We have the capacity of 100L, 200L, 300L, 500L, 1000L,1200L, 2000L, 3000L, 5000L, 8000L…for your reference. It can be customized, such as the capacity(dimension can be adjustable), material, voltage(like 380v, 50Hz, 3phases), heating method(electric, steam or gas heating), etc.
2.For electrical parts, we use SIEMENS, SCHNEIDER, DANFOSS, OMRON, ABB….etc.
3.The brewer can also brew draft beer, pale beer, brown beer, stout beer etc,to meet different taste of customers.
