1000L stainless steel conical customized commercial fermentation tanks



As an important part of beer brewing, fermenter ferments the wort from the heat exchanger to fermentation.The cone portion of the fermenter is 60 degrees, making it easier to collect yeast and obtain clear beer.

Description



1000L ss conical customized commercial fermentation tanks

As an important part of beer brewing, fermentation tank ferments the wort from the heat exchanger to fermentation.The cone portion of the fermentation is 60 degrees, making it easier to collect yeast and obtain clear beer.

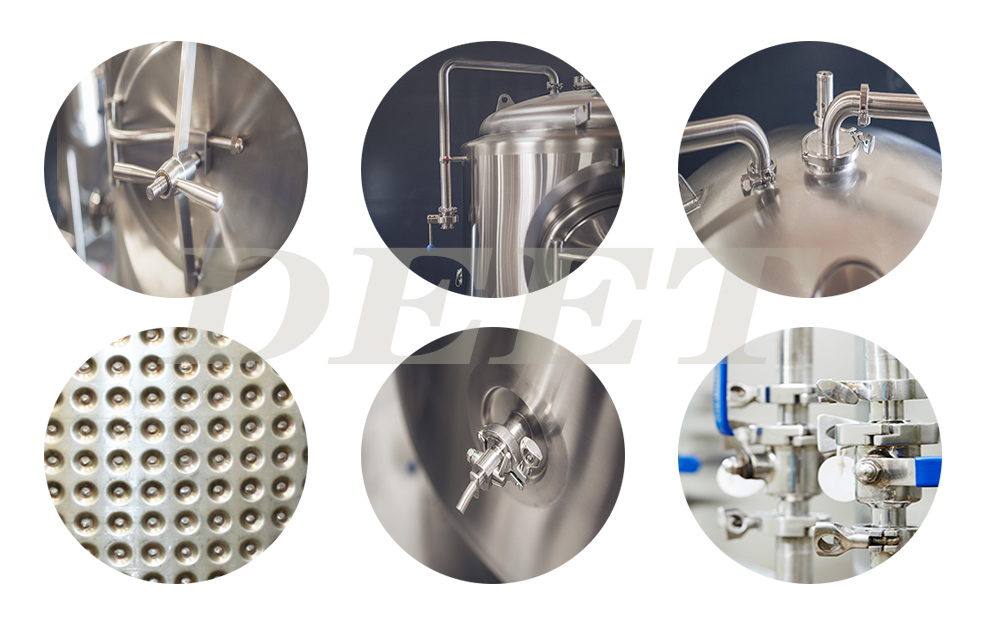

Commercial fermantation tanks components:

Safe relief valve: The temperature in the tank increases during fermentation, so it is necessary to install a safety release valve.

Breather valve: Prevent the tank from producing negative pressure, protect the safety of fermentation tank.

Sampling valve:Sampling holes in the tank help the winemaker keep an eye on the fermentation.

Temperature probe:With the continuous fermentation of wort, the temperature in the fermentation tank also rises continuously. At this time, the temperature is monitored through a thermometer, and the refrigeration system is started when the set temperature is reached.

Pressure gauge:The fermentation process produces a lot of carbon dioxide, so the pressure in the tank increases.The pressure gauge can be used to ensure that the pressure in the tank is within a reasonable range.

Fermentation tank 1000L

• Tank Capacity: 1000L

• Inner jacket (SUS 304), Thickness=3.0mm

• External jacket (SUS 304), Thickness=2.0mm

• Dish head (SUS304), Thickness= 3.0mm

• Insulation: PU-Thickness: 100mm

• Side manway: shadowless manhole

•Completely SUS304 heavy duty legs with leveling pad and legs support

• Glycol jacket: dimpled plate on cone and side

• Cooling media: glycol water or alcohol water

• Design pressure 0.3MPa

• Working pressure 0.15Mpa

• Stringent tank leakage test by water and pressured gas

• Stringent jacket leakage test by pressured gas

• 60°cone bottom

• CIP arm with360°coverage CIP spraying ball

• CO2 blowoff arm with butterfly valve

• Dry hops port on the top of tanks with butterfly valve and hopper

• Full sanitary sample valve, no seal ring, no pollution

• Mechanical relief valve with glass, 2bar on CIP arm

• Shockproof pressure gauge on CIP am

• Rotating racking arm and port on cone with butterfly valve

• Tri clamp discharge arm with butterfly valve

• PT100 Temperature sensor for high accuracy temperature control

• 100% TIG welded joints

• Complete valves, fittings and all parts




Company advantages:
Degong Equipment Technology Co., Ltd. specialize in designing, researching and manufacturing the brewery equipment, beer filling line and subsidiary equipment.

Our equipments have been CE ISO TUV UL certified. We are the only one who has got TUV certificate amongst all suppliers in north of China.

As a beer brewery equipment, craft beer brewing and brewhouse manufacturer/ supplier from China, we offering high-cost performance beer brewery equipment and craft beer brewing for hotel, restaurant, beer pub and beer plant.
