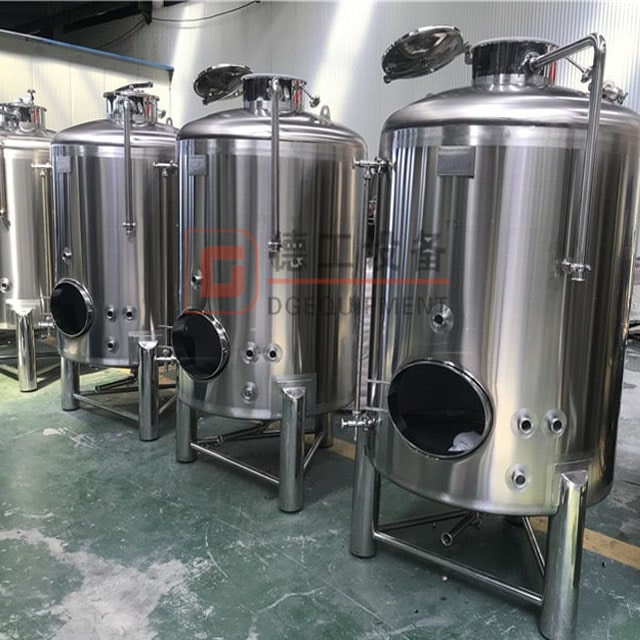

1000L Vertical Stainless steel standard jacketed beer aging tank brite tank

Description

Carbonating a full batch of beer with a carbonating stone in a brite tank provides for much quicker carbonation. The carbonating stone increases the surface area contact with the beer by producing tiny bubbles of CO2, which are more easily absorbed into the beer.

1000L Bright beer tank/beer storage tank/beer service tank/BBT/brite tank



What is a brite tank

BBT Often called a bright beer tank,brite tank, serving tank or secondary tank, a bright beer tank is the vessel in which beer stay after primary fermentation and filtering, so it can further mature, clarify and carbonate, as well as be stored for kegging, bottling, canning and packaging.



Main features of brite tank

Material Inner (SUS304)thickness: 3.0mm;

Outer(SUS304)thickness:2.0mm

External-Jacket(SUS304) thickness: 1.5mm;

Oval head cone bottom, thickness: 3.0mm.

Surface: Finish 2B – cold-rolled, annealed

Inner surface treatment: welds grinded to Ra 0.4μm (attached 360 degree Omni cleaning ball).

Mirror surface finish inside.

Insulation: Polyurethane-thickness:100 mm.

Equipment with : cone 150°resist compression design，

Vessel Pressure:1.5 bar / 3.0 bar

Heat exchange area：5.9m2

Glycol Jacket: Dimpled plate on cone and side

Stringent tank leakage test by water and pressured gas

Stringent Jacket leakage test by water and pressured gas



Main Components of brite tank

Sanitary side manway with pressured door

TC connected CIP arm with 360° coverage spraying ball

Full sanitary metallic sealed sampling valve

Mechanical safe valve PVRV 2 bar on top

Hydraulic shock pressure gauge on CIP arm

Tri clamp discharge arm with butterfly valve

Thermowell for high accuracy temperature sensor

4pcs completely SUS304 heavy duty legs with levelingpad and legs support

Complete valves, fittings and all parts

thermometer&pressure gauge&mechinery regulating valve

Carbonation stone&sample valve

DIN VALVE



Certification



Delivery&Packing

The packing is wooden case or iron frame according to the LCL OR FCL,to asure the tanks will not be destroyed during shipment.



Service

After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.





Why choose us:

1.Always delivery in time

2.Guarantee is 3 years

3.Install equipment freely

4.Real food grade SUS 304

5.Promise good pre service and after service
