10bbl brite beer tank vertical or horizontal single double wall

The design and fabrication are both following what is more suitable for local request, to make sure client has less extra cost on other issues when running the brewery. We make operating the system for brewing easier and more efficient as the priority, meanwhile we try our best to lower the cost of material and save energy, to help all clients all over the world find the best balance between investment and income.

Categories: , Tags: , , , , ,

Enquiry about 10bbl brite beer tank vertical or horizontal single double wall

Description

Brewery equipment 10bbl brite beer tank

Vertical Bright Beer Tank are often also called serving tanks,or clear beer tanks (=CBTs), Vertical Bright Beer Tanks (=BBTs) or maturation or conditioning tanks. These tanks are used for the storage of the beer prior to being served or packaged. Depending on their application the beer serving tanks can be glycol jacketed or can be located in a cold room.For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.



10bbl Vertical brite beer tank

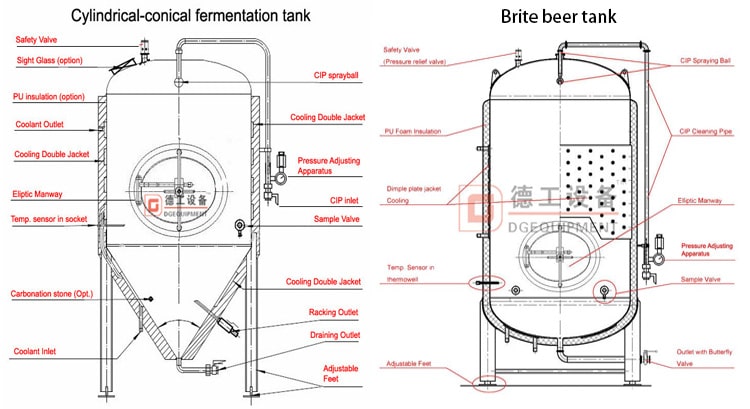

Fermentation tanks and brite beer tank drawings

清酒正反-min

Craft brite beer tank

Function:Beer maturation/conditioning/serving/filtered beer receiving

Tank Capacity: 10BBL (+25% Headspace minimum)

Interior Shell: SUS304 full welded; TH=3mm

Exterior Shell:SUS304 full welded; TH=2mm

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.4μm without dead corner

Insulation: Polyurethane; TH=100mm

Glycol Jacket: Dimple plate on side wall

Stringent tank leakage test by water and pressured gas

Stringent Jacket leakage test by water and pressured gas

Dished head and cone bottom

Sanitary side mounted manway

CIP arm with 360° coverage CIP spraying ball

Full sanitary sampling valve

Mechanical relief valve 2 bar on CIP arm

Carbonation port with stone

Shockproof pressure gauge on CIP arm

Tri clamp discharge arm with butterfly valve

Thermowell for high accuracy temperature sensor

4pcs completely SUS304 heavy duty legs with leveling pad

Sanitary level tube with stainless steel ball valves

Complete valves, fittings and all parts



Horizontal tanks brite beer tank

Feature Description:

The horizontal tanks mainly for beer storage, which can be stacked with 2 tanks, to make full use of the height. Fermentation finished in short time, then we use horizontal tank for storage for longer time.



Horizontal tanks brite beer tank model

2 tanks stacked with frame. With right beer outlet, carbonation unit etc. All glycol cooling line preassembled. Inside surface to be passivated. All fittings installed with tanks using top brand in China or famous brand from other countries. The tank working pressure up to 3bar to fit the requirement of carbonation when necessary.

Capacity range: 5HL-50HL or 5BBL-50BBL, or customized



Horizontal beer tanks can save floor space

Details:

● Horizontal type

● With frame for supporting tanks

● Double heads with domed seal

● Pressure: 2-3 bar

● Dimple plate cooling jacket, cylinder, Polyurethane insulation, Thickness: 80-100mm

● All glycol line pre assembled

● CIP arm with pressure gauge, rotating spray ball

● Side manway, sample valve

Contact Alice today

Talk to us about your requirements and we will design a brewing system to work for you and your company. wlcome to consult brewery to get a perfect quotation.
