10BBL conical beer fermenter/jacketed CCT | Degong

Conical beer fermenter is for brewing beer . Conical beer fermenter has the cone-shaped bottom that is for allowing the yeast slipping down easily. Different customers have different requirements on the design of fermenters. So we are open for your thoughts before manufacturing. The warranty period is 2 years, we will in charge of every natural malfunction occurred within this period. We’ve got many sales agent around the world for you as the customers reference. We always take the state of the art workmanship to build the equipments according to your requests. The capacity varies from 50L to 20000L. We aim for your success!

Description

Conical beer fermenter is for brewing beer . Conical beer fermenter has the cone-shaped bottom that is for allowing the yeast slipping down easily. Different customers have different requirements on the design of fermenters. So we are open for your thoughts before manufacturing. The warranty period is 2 years, we will in charge of every natural malfunction occurred within this period. We’ve got many sales agent around the world for you as the customers reference. We always take the state of the art workmanship to build the equipments according to your requests. The capacity varies from 50L to 20000L. We aim for your success!
conical beer fermenter

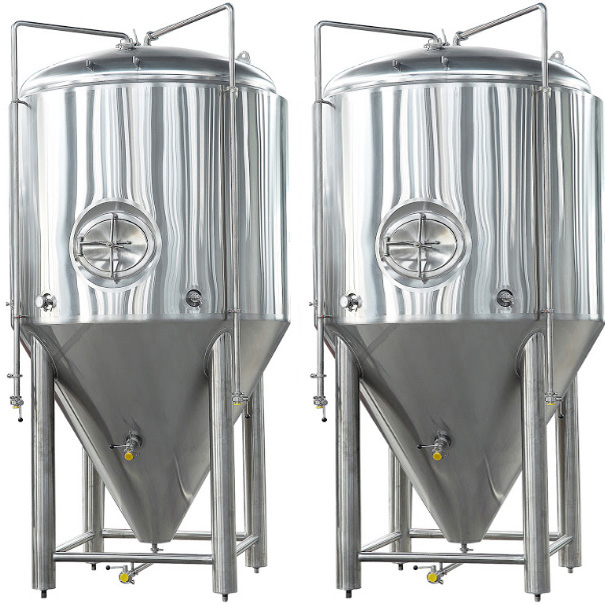

10BBL conical beer fermenter
  • Design pressure: 3bar (45 psi)
  • Working pressure: 1.5-2bar (21-29 psi)
  • 4 stainless steel feet with leveling feet
  • Inner shell: stainless steel 304    Thickness:3.0mm
  • Outer shell: same as above     2.0mm
  • Jacket: same as above     1.5mm
  • Mirror polishing interior; Welds are ground to Ra0.6μm
  • Dished head top and bottom, 25% head space
  • With side manway
  • Dual cooling zone at the cylinder and bottom
  • Insulation: polyurethane(PU)   Thickness: 100mm
  • Spraying ball and CIP arm
  • Perlick style sample valve
  • Carbonation stone port(optional)
  • Temperature probe and pressure gauge
  • All necessary components are included, such as valves, lifting lugs, mechanical regulation valve, etc..  (Solenoid valve can be purchased as your desire)

  • Certificated sanitary food grade SS304
  • High quality valves & components
  • Dual cooling areas which is easy to operate and good for saving energy
  • At least 25 years using life
  • Easy to maintain, operate. Saving time and labor
  • All fermentation tanks should pass the tank leakage test before leaving our factory
  • Carbonation stone port for special use
  • With dry hopping at the top
  • Fine welding seams treatment
  • More economical and competitive
  • Completely customizable as requested
  • CE, ISO, TUV approval
  • With tubular level meter for special use
  • Novel structure and attractive appearance
  • More humanized design
