10HL commercial custom built steel brewing system manufacturer in China

Description

2000L 3-vessel beer brewhouse

10HL stainless steel brewery system with platform



Configuration list of 10HL brewery equipment



Miller system200KG/H malt grinder * 1

Malt grist case * 1

Malt conveyor * 1

Brewhouse (Steam heating method)10HL mash/lauter * 1

10HL kettle/wrhilpool * 1

20HL hot water tank * 1

Wort pump with ABB motor * 2

10 square meters plate heating exchanger * 1

Working platform * 1

Wort aeration device * 1

Hop back * 1

Individual control box for brewhouse * 1

Fermentation system5HL fermentation tank * 2

10HL fermentation tank * 4

10HL bright beer tank * 2

Individual control box for fermentation system * 1

CIP system100L alkali tank * 1

100L acid tank * 1

Washing pump * 1

Control box *1

Wheeled cart *1

Cooling system7HP chiller (Copeland compressor) * 2

1500L glycol water tank * 2

Circulation pump * 1

2000L cold water tank * 1

AccessoriesSpare parts like butterfly valve, solenoid valve, sight glass, pipes, seals, etc…



10HL brewhouse



– Food grade sanitary stainless steel 304

– Thickness: 3.0mm for inner, 2.0mm for outer and 1.5mm for jacket

– Tempered glass manhole & Lamp

– VFD wort pump with ABB motor

– Dual stage heat plate exchanger

– SS CIP high-low spraying ball with 360° of coverage

– Fully insulated vessel with PU

– Tangential wort inlet

– SEW/Siemens gear motor for blender and raker

– Wort aeration assembly

– External wort grant

Mashing in tun

Mashing process inside the tun

Spent grain out

Discharging spent grain from side manhole of lauter tun

Pipe integrator

Pipes integrator



5HL& 10HL fermentation tank



– 100% TIG welded with argon gas protection

– Stainless steel 304 sanitary construction

– Design pressure: 0.3MPa, working pressure: 0.15-0.2MPa

– Interior shell: thickness 3.0mm,  mirror polished

– Exterior shell: thickness 2.0mm, 2B-Pickled

– Dimple jacket: thickness 1.5mm

– 4 heavy duty stainless steel legs with leveling foodpads

– Dual cooling zones on the cylinder and cone

– Sample valve

– Thermometer well

– Pressure gauge

– Vacuum valve/ PVRV

– Racking arm

– Side manhole

– SS CIP spraying all with 360° of coverage

– Dry hopping hole

– Lifting lugs

– Carbonation stone well reserved

Connecting pipes of fermenter

4 pieces of Stainless steel heavy duty pipes

Customers at the brewery site

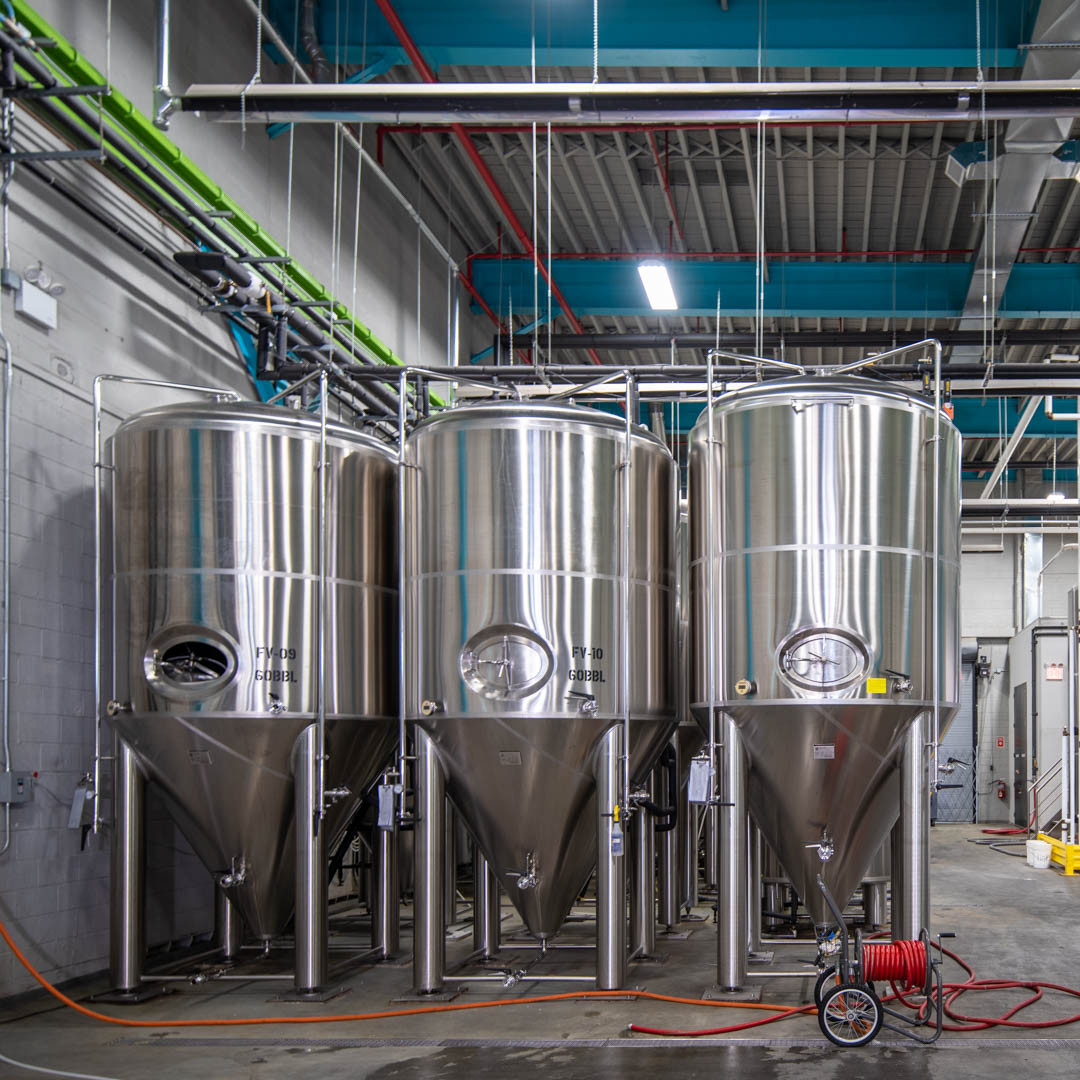

Premium 1000L beer fermentation tank in a row

Components of fermenter



Brewing process illustration

Brewing process illustration



Service & guarantee

– It doesn’t begin and end with a quote. DEGONG goes the extra mile before the sale to assist with equipment layouts, utility requirements and other critical information so our “potential” customers can make educated decisions regarding the suitability of a property.

– We provide the potential customer the technical supports like 2D and 3D drawings according to the practical layout

– Once your facility is ready for equipment startup, it is time for commissioning and training. We are responsible to dispatch our engineer to assemble your brewery equipment at site and then train your staff by brewing 1 or 2 batches of pilot brew.

– For the malfunctions beyond the warranty period, Degong will also be responsible to it, but the seller should take in charge of the expenses.

3D drawing for Ireland customer

Molasses making equipment



Certificate



Delivery

Forklift moving beer kegs

Tanks arrive to customer's site
