15 bbl Fermenter | Jacketed – Stainless Steel

$90,000.00

The DEGONG’s 15 bbl jacketed cone fermenter is backed by a 1-year warranty.Here you will find a range of brewery fermenters with work capacities ranging from 100 to 10,000 barrels. We can also customize any fermenter to the size and specifications required by your brewery. A copper cladding can also be provided instead of a stainless steel cladding. Please call us at +86 15688463345 for a custom quote.

Description

Brewhouse system:

The DEGONG’s 15 bbl jacketed cone fermenter is backed by a 1-year warranty.Here you will find a range of brewery fermenters with work capacities ranging from 100 to 10,000 barrels. We can also customize any fermenter to the size and specifications required by your brewery. A copper cladding can also be provided instead of a stainless steel cladding. Please call us at +86 15688463345 for a custom quote.

15BBL 4-vessel steam heated brewhouse

General technical parameters:

  • Structure: Customizable (can be 2-vessel, 3-vessel or 4-vessel which depends)
  • Heating method: Steam heating method
  • Material: Food grade stainless steel 304
  • LED light
  • SEW variable frequency drove motors for raker
  • Programmable logic controller(PLC) control system for brewhouse system
  • Tublar level meter built
  • Automatical spent grain discharging
  • Automatically controlled pneumatic valves
  • Wort pump with variable frequency drove ABB motor
  • Skidproof platform
  • CIP spraying ball of 360° coverage
  • Thickness of inner shell: 3.0mm   outer shell: 2.0mm   dimple jacket: 1.5mm
  • Insulation: PU



Fermentation system:

Fermentation system comprises of fermentation tank, bright beer tank and connecting pipes. After being cooled by plate heating exchanger, the wort is transferred to fermentation tank for fermentation process which is generally consisted of two phases – aerobic respiration and anaerobic respiration. The type of the beer determines the fermentation period. The beer is drinkable after the process.

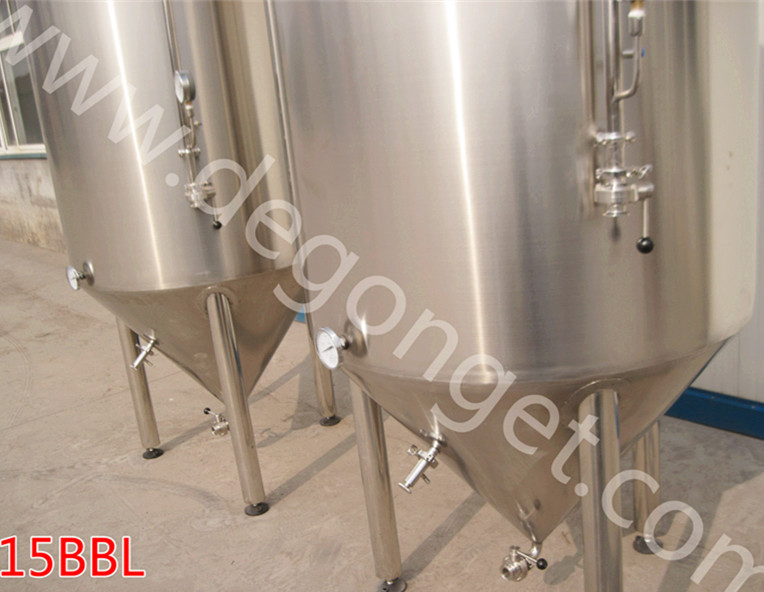

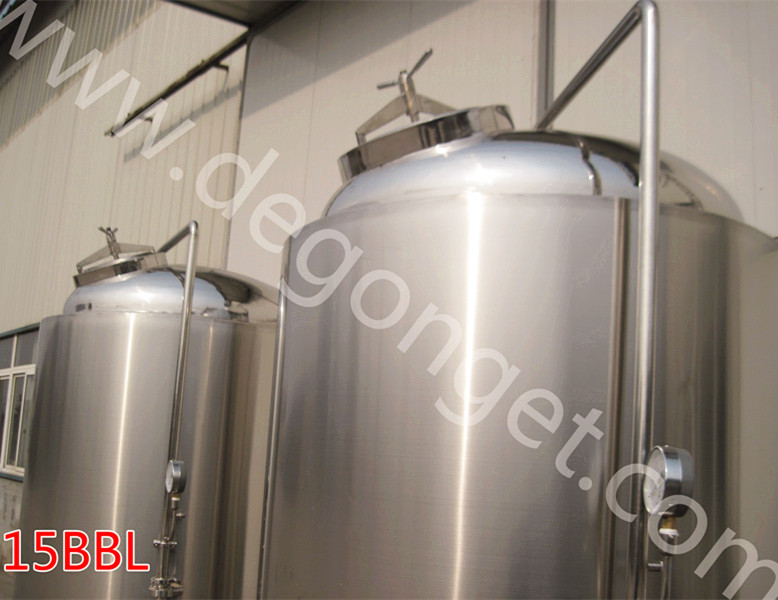

15BBL fermentation tank

General technical parameters:

  • 100% stainless steel 304 TIG welded construction
  • 0.4um mirror polish interior finish
  • Reinforced stainless steel legs with adjustable height for leveling
  • Dual cooling zones – body and cone part
  • Design pressure: 3.0 bar     Working pressure: 1.5-2 bar
  • Perlick type sample valve
  • Vacuum relief valve
  • Temperature sensor
  • Overflow pipe for discharging the foam
  • Side manhole
  • Dry hopping hole at the top
  • All connections are tri-clamp connecting method
  • Racking arm with tri-clamp connecting method
  • CIP spraying ball with 360° coverage
  • Lifting lugs
  • Uni-tank option avaible for carbonation stone assembly
  • Mechanical regulation valve with pressure gauge

Where you can put brewery system

Packing&Logistic

Application



Certifications



If you have interest to know more details,please get in touch wiht me freely.

Email:jana@degonget.com

WhatsApp: +86 15688463345

Thank you !
