Description
2 vessel 3D drawing brewhouse equipment

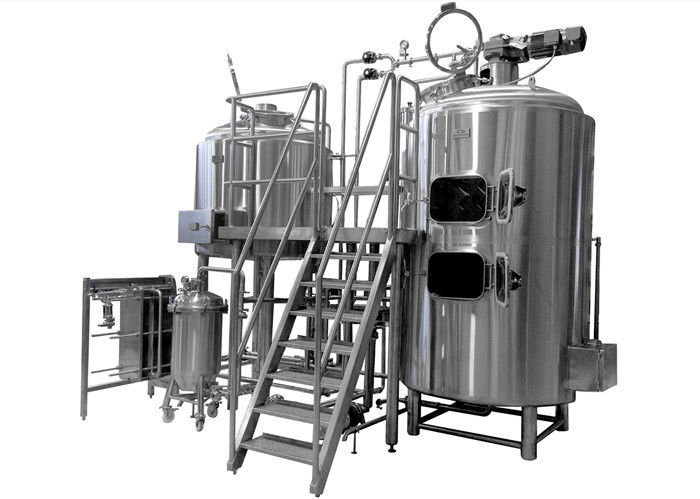

Brewhouse Equipment Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel are popular because of easy maintenance and clean, copper cladding for optional
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
Brewhouse equipment basic technical:
Material: SUS 304
Volume:500L-20000L
Design pressure: 0.3Mpa;Working pressure:0.12Mpa-0.15Mpa
Polyurethane insulation, side and bottom insulated
Dimple plate cooling jacket
Cooling stage: cylinder and cone
Exterior: stain removed, and brightened on regular margin
Interior surface: Polished, and welding joint acid cleaned
Domed top,Stainless steel leg, with adjustable leg bolt
Top fittings: CIP arm, spray ball, manhole (top or side)
Side fittings: Glycol inlet/outlet, thermometer well, sample port, manway (side or top)
Bottom fittings: Drain valve, beer outlet, carbonation unit (optional),CIP arm including pressure gauge, pressure regulating valve
Dry hopping port on top(optional)
5BBL beer brewhouse equipment | 1000L beer brewhouse equipment |
![]() |
![]() |
Our advantages
Quality Control:After that, the customers or the third party can come here to inspect the equipment again if available.
Mirror Polishing: Inside Polishing: Overall polishing to 0.6μm without dead corner .
Outside Polishing: Mirror polishing, smooth enough.
Purpose: The tank itself has high precision and small details of the tanks have to be observed by a telescope.
Function: To make tanks become tidy and smooth, beautiful and durable.
Finished Product: All the finished product will be inspected by X-ray testing, to find out whether there have something defect.
