Description
Industrial beer brewery equipment feature
- Highly competitive price.
- CE (2014/68 / EU),PED,LVD certification.
- Strictly quality control, meet the European quality standard.
- Accept customized service, professional engineers will provide design solutions for your brewery project.
- Easy to operate: Include all the tanks to brew by the control cabinet.
- Compact: floor space around 100-150 s.q.m.,provide the layout drawing according to your workshop.
- Wonderful Technology:Fermentation-Double jacket conical fermenter with dimple-plate cooling jacket, perfect welding by professional welders.
Industrial beer brewery equipment brewhouse system
2000l Brewery is really a commercial size that requires multi batches a day to maximize its utilization.
4-vessels, which is mash tun, lauter tun, boiling tun and whirlpool tun.It can be save time and get the fastest brewing process.
Most common design for 2000L brewhouse may be 3 Vessels.
- mash/lauter tun, boiling tun and whirlpool tun.
- mash tun, lauter tun, boiling/whirlpool tun
You can chose the suitable one according to your brewing technology. If you have your special design,we can discuss the design with engineer.
| 2000L BREWERY | ||
| System | Model | Specification |
| Mill system | 300kg-500kg/h mill machine |
Material: stainless steel Roller Material: alloy This machine can remove the iron and dust automatically |
| Brewhouse system |
2000L 3-vessel or 2000L 2-vessel +hot water tank |
Main equipment: mash/lauter tun+boiling tun+whirlpool tun; mash/lauter tun+boiling/whirlpool tun+hot water tank Material: stainless stee or red copper Heating method: steam/electric/direct fire heating Inner: TH=3.0mm, outer: TH=2.0mm The inner surface polishing to Ra 0.4um Tangential whirlpool inlet Equipped with hops back 100% stainless steel two stage plate heat exchanger Include: raker, thermometer, operation plateform, moter, pump and other accessories |
| Fermentation system | 2000L or 4000L fermentation tank & bright beer tank. You decide quantity |
Inner material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing to Ra 0.4um Cone bottom: 60° Design pressure 3 bar; Working pressure 1.5bar Manhole: top manhole or side manhole Cooling way: dimple jacket Equip with carbonated port, dry hops port,sample valve, mechanical regulator valve, pressure gauge, racking arm |
| Cooling system | Glycol water tank & chiller |
Inner material SUS304, thickness: 3.0mm External Jacket material: SUS304, thickness: 2.0mm The inner surface polishing to Ra0.4um Pump is Stainless Steel Model Cooling media: glycol water Includes pipeline, valve, and all other accessories |
| Cleaning system | 200L CIP |
Main equipment: alkali tank, acid tank Equip with control cabinet Centrifugal pump |
| Control system | PID or PLC |
Material: stainless steel Component has CE,ISO certificate Optional: UL Certificate, Siemens component, Omron component |
3-vessel: mash/lauter tun+boiling tun+whirlpool tun

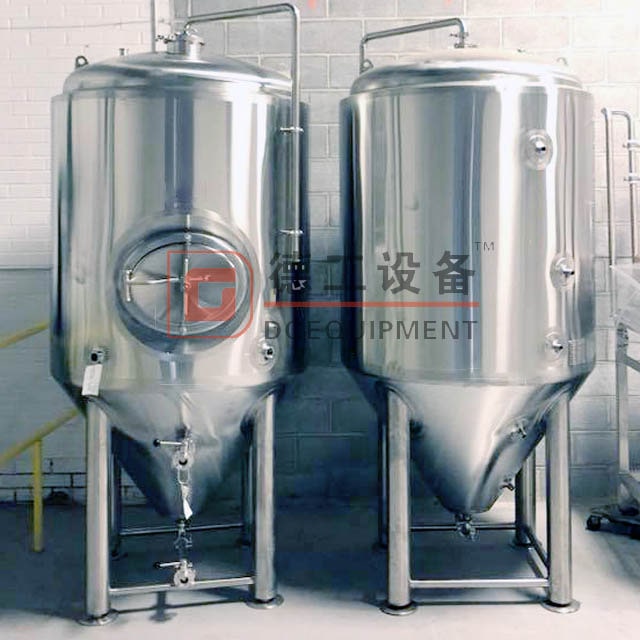

industrial beer brewery equipment conical fermenter
