200L Custom Stainless Steel Beer Brewing Equipment in home restaurant for Sale

Description

Quick view

Degong’s beer brewing equipment is certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory in more than 50 countries all over the world. It will be the best choice for the  buyer who want establish the  commercial and industrial brewery for brewing the unique taste of beer.

Processing:Beer brewingApplicable Industries:Hotels, Food & Beverage Factory, Restaurant, Retail, Food Shop, Food & Beverage Shops
After Warranty Service:Video technical support, Online support, Field maintenance and repair serviceCondition:New
Place of Origin:Shandong, ChinaBrand Name:DEGONGET
Processing Types:AlcoholVoltage:380V or customized
Power(W):15-70Kw depends on capacityDimension(L*W*H):Depends
Weight:Various in different modelsCertification:CE ,ISO,TUV
Warranty:3 yearsAfter-sales Service Provided:Field installation, commissioning and training, Engineers available to service machinery overseas
Equipment Material:SUS304 or Red Copper M2 for outer shellThickness of Tanks:3mm for inner container/2mm for outer shell
Color Availabl:Mirror SUS, Luxury red copperHeating:Electric/steam/direct fire heating
Heat Insulation:Polyurethane with Thickness 80mm-100mmInner Polishing Precision:0.4 Micrometer
Volume Design:200LControlling System:PLC; HMI or Touch Panel

Malt miller

Particle adjustable rolling crusher

Flexible or steel auger for optional

  • 300-500kg/h
  • Doubel roller
  • Nosie: 45db or so



00005



Brewhouse system

  • 200L Mash/Lauter tun
  • 200l Kettle/whirlpool tun
  • Steam heating method
  • Tubular glass level indicator
  • Tangential wort inlet
  • Side mounted grain outdoor with grain chute
  • Laser cutting V-wire False Bottom
  • Heating exchanger: 10 square meters
  • Wort pump: ABB motor, VFD control
  • Wort aeration device
  • Yeast adding tank: 30L
  • Seamless food grade stainless steel 304 pipes

3 (2)_副本_副本-min

ALL in one equipment

The all in one beer brewing equipment is turnkey system with electric heating. It is easy to operate  and you just need to connect it with power.The matrial can be choose from stainless steel and red copper.

QQ图片20200507152258_副本

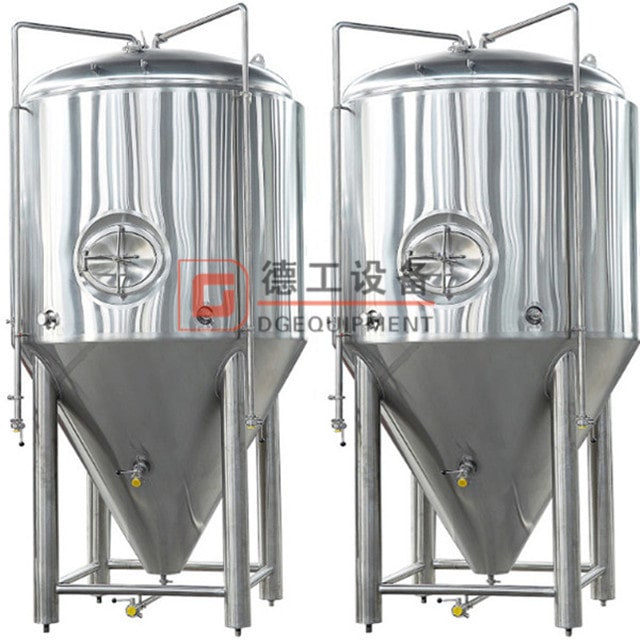

Fermentation tank

  • Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
  • External-Jacket(SUS304) thickness: 1.5mm;
  • Oval head cone bottom, thickness: 3.0mm.
  • Surface: Finish2B – cold-rolled, annealed, pickled
  • Inner surface treatment: welds grind to Ra 0.6μm (attached 360 degree Omni cleaning ball).
  • Mirror surface finish inside.
  • 100% TIG welding with pure argon gas shield
  • Insulation: Polyurethane-thickness 100 mm.
  • Equipment with : cone 60°resist compression design,dripping 10.Temperature drop.
  • Cleaning System: All-round cleaning
  • Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar



fermention tank (2)_副本-min

Cooling system

Cooling system is always consisted of circulation pump, glycol water tank and chiller. How to equip a suitable cooling system depends on the quantity and capacity of fermenters. The glycol water tank is for filling the glycol water. And the chiller is for generating the cooling capacity to reduce the temperature of the glycol water heated during the process of fermentation.

14615872_1285840951435930_2567650140628383106_o

glycol water tank

CIP system

CIP system is a vital part of the beer brewing equipment and  generally consisted of 2 tanks which are separately sanitary tank are alkali tank. For most micro brewery equipment, CIP system is with 4 wheels at the bottom of platform so it is removable. There is also a washing pump so that the mixture liquid or sole liquid can be transferred to clean tanks.

CIP

Control system

Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.



控制系统

control cabinet

Why choose us

Quality

Quality is the soil of an enterprise. We can offer you competitive advantage beer brewing equipment.With us,your money in safe and your business in safe.

Delivery

Time is vital for both of us,so we have professional team work and production line to make sure the delivery in time.

packing and delivery-min



Certificate

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components which all reach the food sanitary standard for customers. The quality, specification and function all meet the treaty of contract.



01-min

Contact us

Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
