30BBL stainless steel beer brewery equipment

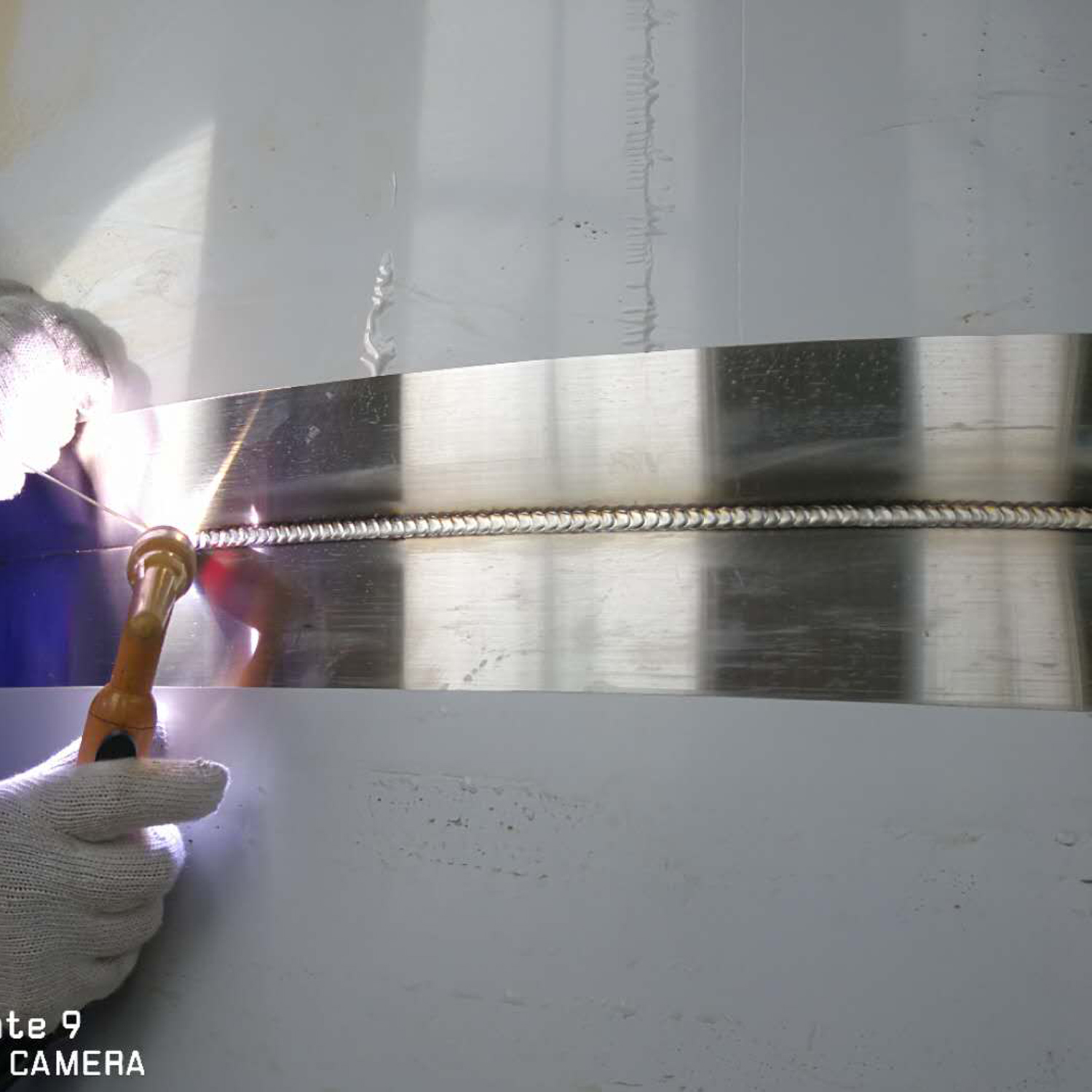

Our brewing systems are all built turnkey and offer several advantages that outshine those of our competitors. All vessels have an impeccable heating and cooling system through our jacket design. All rakes in our brewhouses include an automatic outplow paddle design. This allows the brewer to plow out spent grain just by reversing the direction of the rake. On the areas that need to be welded, we make sure to grind smooth, polish and passivate every TIG weld. Even the largest possible stainless steel sheets are joined and butt-welded to create a stronger tank. To further ensure sanitation and quality, everything that comes in contact with your product, from the handles to the motor is 100% stainless steel and is made to be fully dismantled and easy to clean. We hope for best and do best!


Description

Our brewery systems are all built turnkey and offer several advantages that outshine those of our competitors. All vessels have an impeccable heating and cooling system through our jacket design. All rakes in our brewhouses include an automatic outplow paddle design. This allows the brewer to plow out spent grain just by reversing the direction of the rake. On the areas that need to be welded, we make sure to grind smooth, polish and passivate every TIG weld. Even the largest possible stainless steel sheets are joined and butt-welded to create a stronger tank. To further ensure sanitation and quality, everything that comes in contact with your product, from the handles to the motor is 100% stainless steel and is made to be fully dismantled and easy to clean. We hope for best and do best!

Industrial brewery equipment

30BBL stainless steel beer brewery equipment



Brewhouse:

  • Model: 30BBL commercial beer brewery equipment
  • Structure: 4-vessel steam heated beer brewhouse
  • Material: Stainless steel
  • 304 SS TIG weld construction
  • Multi-pass plate heating exchanger
  • With Glass grant
  • Interior mirror polishing & 2B finish exterior surface
  • Design pressure: 3.0 bar    Working pressure: 1.5-2 bar
  • Steel manhole(Glass manhole optional)
  • Platform as optional
  • ABB sanitary wort pump(variable frequency pump)
  • With 360 coverage spraying ball attached at the top
  • With flow meter installed on the hard connecting pipes

Fermenter:

  • 304 SS TIG weld construction
  • Operating pressure rated at 1.5-2 bar
  • Reinforced stainless steel legs with adjustable height for leveling
  • Side and bottom cooling jackets
  • Tri-clover sanitary fittings
  • Sample valve
  • Pressure/vacuum relief valve
  • Temperature gauge
  • RTD sensor
  • Side man way door (top manway optional)
  • CIP arm and rotating spray ball 360° of coverage
  • Gas arm with mechanical regulation valve
  • Lifting Lugs
  • Butterfly valves included
  • Optional racking arm available with DIN, or tri-clover fitting

  • This set of equipment is for micro brewery, especially for pub, restaurant, hotel, etc…
  • Novel structure and attractive appearance
  • More competitive price and better quality
  • CE, ISO, TUV approved equipment
  • More humanized design which allow you to operate easily
  • Compact design saving your space

  • All the materials touching the beer directly are all top quality food grade stainless steel.
  • We use the first rate valves and manholes for all our equipments.
  • I am here to guarantee all our customers that the materials are nonmagnetic.
  • The thickness of the material exactly fit in with what showed in the specification sheet.
  • If you are a new comer to the beer making field, Don’t worry, I will give you our professional recommendations. And the equipment must be top quality engineered.
  • Engineer is always available to make the relative 2D and 3D drawings for you for your reference.
