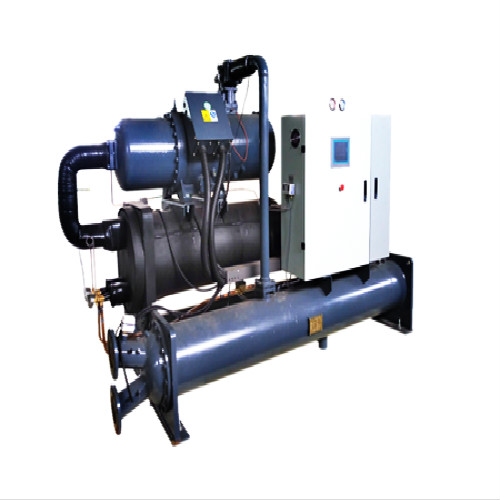

-5 Degree Glycol Chiller Air / Water Cooled Glycol Chilling System For Dairy

Description

-5 Degree Glycol Chiller Air / Water Cooled Glycol Chilling System For Dairy

Model ：DGET-90W  ,DGET-125W,

              DGET-165W~  DGET-800W

No.：1

This series machines are widely used in chemical industry, brewery plant, electroplating, plastic, metal, chemical, electronics, food preservation, laser engraving, vacuum coating, ultrasonic cleaning, high frequency and other industries.

Adopt high-quality, new design scroll compressor, high performance, mute, power and durability.

Equipped with sophisticated electronic circuitry, its temperature precision controlled within ±1℃, just start inching power switch to the desired temperature can operate automatically when the system into acid, cooling water drying up, blower protection, pump protection, phase sequence protection, compressor protection, when protection, frost.

All of the air cooled chiller price components adopt the imported brand, all of the pasrt from original supplier directly, such as BITZER, COPELAND, DANFOSS, SCHNEIDER and etc.

1. Cooling capacity: 45kw~161kw

2. liquid inlet temperature is 0 degrees, outlet temperature is -5 degrees.

3. Input power: 3P-380V-50Hz, Allowable fluctuate voltage: ± 10%, allowable voltage difference in phase: ± 2%. ( 3P-415V-60HZ and 3P-230V-60HZ is ok)

4. Accept orders for special requirements.

5. Industrial and durable design, with stainless steel water tank and high-lift pumps.

6. Wide range of variable chilled water temperature to meet the industrial requirements throughout whole year.

7. Designed as an independent refrigeration circuit, each compressor corresponding to one refrigeration circuit.

8. Refrigerant use R22 or Friendly choose to use environmentally R404A or R134A refrigerant.

Model				DGET-90WSL	DGET-125WSL	DGET-165WSL	DGET-180WSL	DGET-220WSL	DGET-240WSL	DGET-280WSL
Cooling Capacity	kw			63	87	114	122	152	164	193
Power				220V/380V/415V/460V, 50HZ/60HZ; 3PHASE
Refrigerant	Type			R22/R407c/R404A
	Control			Thermostatic expansion valve
Outlet Temperature				-5℃
Compressor	Type			Semi-closed screw type
	Power (kw)			22	29	36	40	48	53	59
	Start			Y-△
	Capacity			25%-50%-75%-100%
Evaporator	Type			High efficiency copper tube shell and tube type
	Flow		m³/h	10.8	14.9	19.5	20.9	26.1	28.1	33.1
	Inlet/Outlet			DN50	DN65	DN80	DN80	DN80	DN80	DN100
Condenser	Type			High efficiency threaded copper tube shell and tube type
	Flow	m³/h		18.3	23.6	30.5	33.2	40.7	44.1	51.5
	Inlet/Outlet			DN50	DN65	DN80	DN80	DN80	DN80	DN100
Protection System				Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L		mm	2300	2300	2500	2500	2500	2800	3200
	W		mm	750	750	750	750	800	800	800
	H		mm	1500	1500	1500	1500	1500	1500	1500
Noise (dB)				73.1	73.7	74.8	78.4	79	80.4	80.4
Weight (kg)				660	700	800	975	1000	1150	1250

Note:

1.Nominal cooling capacity is according to:

        Inlet chilled fluid temperature: 0℃

        Outlet chilled fluid temperature: -5℃

        Inlet cooling water temperature: 30℃

        Outlet cooling water temperature: 35℃

        Fouling factor:0.0001m²℃\W

2.We reserve the right to modify the above dimension or parameter Without further notice.

  And we can manufacture different type chillers as per your need.
