Brewery Equipment 500L 1000L 2000L SS304/316 Isobaric Beer Unitank-fermentation tank

DEGONG Beer Unitank are constructed using SS 304 or SS 316 as desired, designed as cylinder conical tanks with cone angle between 65 to 72 degrees. These tanks are equipped with dimple jacketed glycol cooling system and insulated with 100mm poly urethane foam. Tanks are fitted with high quality solenoid valves that regulate tank temperature. The cooling surface includes the cone and cylinder area.


Description

Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.

beer brewing equipment



DEGONG Beer Unitank use SS 304 or SS 316 material, which is a cylinder conical tanks with cone angle between 65 to 72 degrees. These tanks has a dimple jacket for cooling and 100mm poly urethane foam for temperature keeping. Choose high quality solenoid valves to regulate tank temperature. The cooling surface includes the cone and cylinder area.

beer Unitank



Technical parameter of Beer Unitank-fermentation tank

  • Inner Shell: 3mm,  304 Stainless Steel
  • Outer Shell: 2mm,304 Stainless Steel
  • Inner shell design pressure 29PSI(2bar), testing pressure 29PSI(2bar)
  • Inner cooling jacket design pressure 29psi (2 bar).
  • 25% headspace for fermenting process.
  • Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets.
  • Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
  • Tank inner side is  0.6µm sanitary finish at least.
  • Tank outside is 2B stainless steel plate
  • Shell and bottom cone cooling jacket for better temperature control.
  • Pillow Plate on shell body and cone; Omega laser welded and inflated.
  • Hook outside on the shell for ladders.
  • Other customization possibly available upon request.

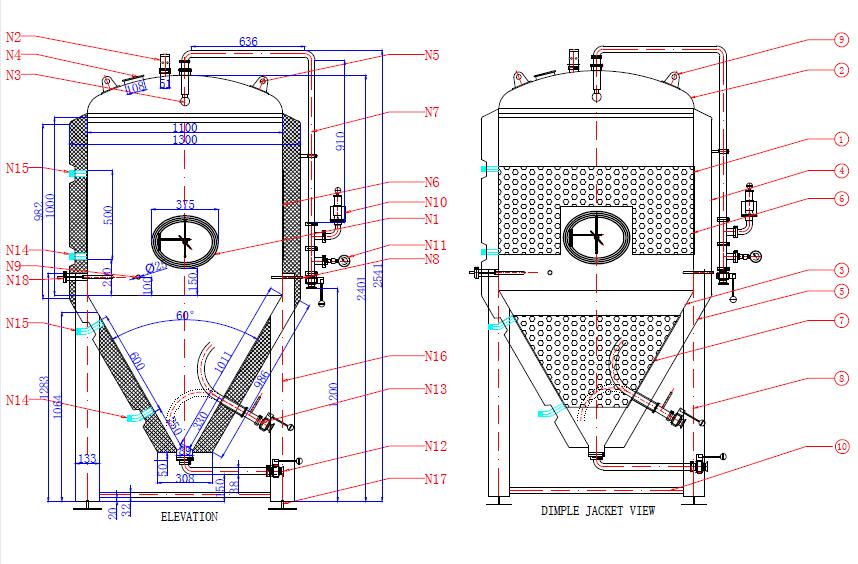

Component on Beer Unitank-fermentation tank

Take 1000L fermentation tank as a reference

N1.Side manhole     N2.Breathing valve      N3.Cleaning ball       N4.Dry hops adding port       N5.Lifting lug

N6.Cooling jacket    N7.CIP Pipe       N8.Temperature sensor   N9.Sample valve     N10.Mechanical regulation valve

N11.Pressure gauge   N12.Drain outlet   N13.Racking arm      N14.Cooling inlet     N15.Cooling outlet

N16.Legs        N17.Base plate     N18.Carbonation stone

QQjietu20200708161302-min

Useful capacity Total capacity Inner/outer diameter(mm) Total height(mm)
100L 130L 500/640 1300
200L 260L 600/740 1750
300L 370L 700/840 1850
500L 630L 800/960 2150
1000L 1300L 1100/1300 2550
1500L 1800L 1200/1400 2900
2000L 2500L 1300/1500 3150
3000L 3850L 1500/1700 3750
5000L 6250L 1800/2000 4350





If you want to know more knowledge about beer brewing or you want to buy beer equipment,welcome to get in touch with me.
