500L 1000L 2000L SUS304/316 Double/single beer serving tank storge tank bright beer tank

Beer Serving tanks, also called bright beer tanks, are the containers structurally identical to maturing tanks.Their typical feature is the certification for pressure 3.0 bar, since for their main function, which is filling the transport packaging ( kegs, bottles ) and draught beer ( in the adjacent restaurant ), it is necessary to keep beer under a higher pressure than is used in maturing tanks.

Description

Bright beer tank/beer serving tank introduction

BBT Often called a “brite” beer tank,beer serving tank or secondary tank, a bright tank is the vessel in which beer is placed after primary fermentation and filtering, so it can further mature, clarify and carbonate, as well as be stored for kegging, bottling, canning and packaging.Their typical feature is the certification for pressure 3.0 bar, since for their main function, which is filling the transport packaging ( kegs, bottles ) and draught beer ( in the adjacent restaurant ), it is necessary to keep beer under a higher pressure than is used in maturing tanks.

The BBT can be horizontal bright beer tank and vertical bright beer tank according to customer’s requirement.

Vertical stainless steel beer aging tank

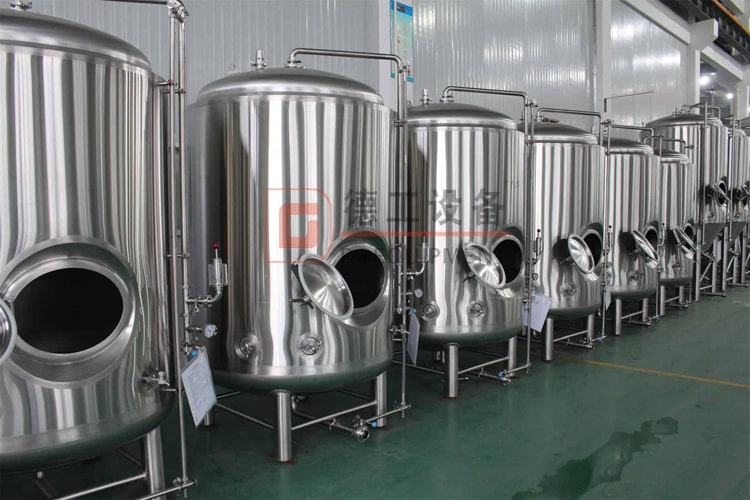

Vertical bright beer tank/beer serving tank

beer serving tank

Horizontal bright beer tank beer serving tank



Main features of beer serving tank

– All tanks are made of food grade stainless steel 304.

– Adopting advanced world famous brand components in electric parts and operation parts.

– Thickness: inner 3.0mm; out 2.0mm; jacket: 1.5mm

– Insulation: Polyurethane   thickness: 100mm

– Working pressure: 1.5-2.0 bar      Design pressure: 3.0 bar

– Cone 150° resist compression design

– Pressure controlled by pressure gauge automatically.

– 100% TIG welding with pure argon gas shield.

– Glycol jacket: dimpled plate on cone and side

– Heat exchange area: 2.69 square meter

– Interior surface: mirror polishing

– Exterior surface: oil bushed finish

– Interior full polished to Ra0.6µm without dead corner

– TC connected CIP arm with 360° coverage spraying ball

– Sanitary side mounted manhole with pressured door

– Main accessories: breathing valve,hops adding port,mechanical type safety valve, sampling valve, pressure gauge, temperature probe,  leveling tube, solenoid valve, etc…

750-fer-xijietu-min2

QQjietu20200708161302-min



Service

servide

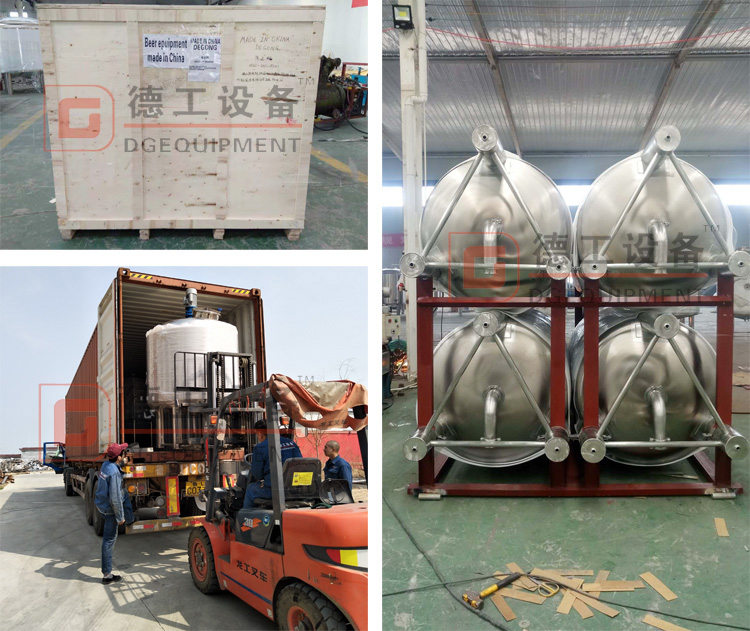

Delivery&Packing

The packing will be wooden case or iron frame according to the LCL OR FCL,to asure the tanks will not be destroyed during shipment.

未标题-1



Contact us

DEGONG Equipment Technology Co.,Ltd is a professnional manufacture of beer brewing equipment,if you have interest,welcome to contact me freely.
