Description

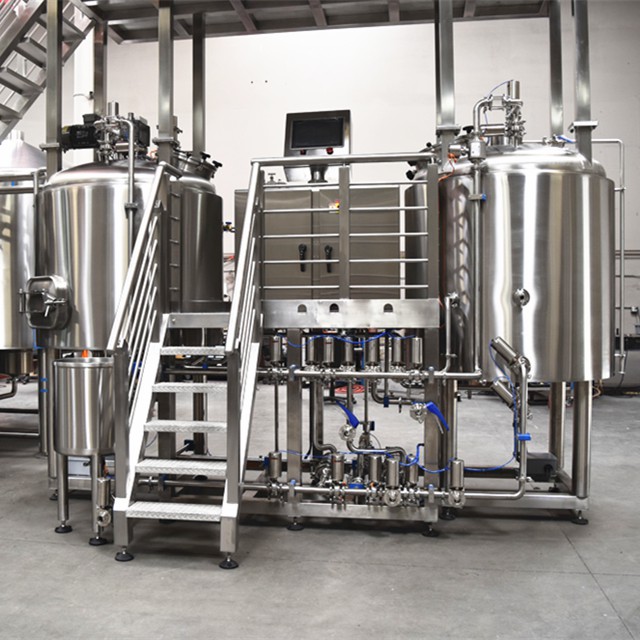

Description of 500L beer brewing equipment



Our 500L beer brewing equipment is custom-built to fit each customer’s individual needs. Our staff works with you on everything from designing your brewery layout, to thinking of the setup and size of your brewhouse and fermentation tanks. We can also design the piping for you, so you don’t need to worry about the low ceiling and cramped quarters. What’s more, every brewhouse is built with stainless steel 304 and uses ABB/Siemens motors, so they are as durable and heard working as you are. More importantly, every single set of brewhouse goes through a strict quality control inspection before it leaves our factory located in Dezhou city to ensure every part of the 500L beer brewing equipment can work perfectly.





































Features of 500L beer brewing equipment



Mash/Lauter tun assembly:

  • All stainless steel 304 construction, dished top and bottom.
  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
  • Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
  • Sealed access door.
  • Tempered glass top man door access.
  • Thermo-well installed with RTD for measuring temperature in mash / lauter tun; What’s more, RTD sensor is also provided
  • Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
  • Heavy duty legs assembly with standard leveling pads.
  • PU ( polyurethane) insulation with 14 gauge polished stainless steel outer shell.
  • ABB/ Siemens / SEW reducer for raker













Kettle/Whirlpool tank assembly:

  • All stainless steel 304 construction, dished top and bottom.
  • Tempered glass top man door access.
  • 4 pieces of heavy duty leg assembly with standard leveling pads.
  • PU(polyurethane) insulation with 14 gauge polished stainless steel outer shell.
  • Steam flue slip flange with condensation gutter and drain port.
  • Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
  • Internally mounted/removable trub dam.
  • Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
  • Thermowell installed with RTD for measuring temperature in brew kettle.
  • Tangential wort inlet assembled inside the tank
  • With VFD blender assembled inside the tank to stir wort







Sanitary piping system



– Stainless steel work platform with handrails chem-grate material decking. You will not need to remove this for any wash down procedures.

– Fully welded sanitary process piping package including:

  • All Sanitary Gaskets
  • Butterfly Valve
  • Site Glasses
  • Tri Clamps



Standard Control/Electrical package will include:



– UL Listed stainless steel wash down electrical box to include:

  • 10” touch screen HMI display.
  • Temperature readout for the mash tun, brew kettle & HLT.
  • Automated temperature control for the HLT.
  • VFD for main transfer pump.
  • Float switch controllers for the grant/hop back kettle.
  • VFD for the hot liquor tank pump.
  • On/Off/Auto switch for the transfer pump assembly.

– Wiring diagram for operation of the system.





Fermentation tank of 500L beer brewing equipment



  • Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm; External-Jacket(SUS304) thickness: 1.5mm;
  • Heat exchange area:2.69 ㎡
  • Equipment with : cone 60°resist compression design,dripping
  • 100% TIG welding with pure argon gas shield
  • Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)
  • Exterior Finish: Oil brushed finish ( 2B, 8K Mirror finish optional)
  •  Interior full polished to 0.2~0.4 μm without dead corner
  • Insulated with high density Polyurethane foam 100mm
  • Glycol Jacket: Dimpled plate on cone and side
  • Stringent tank leakage test by water and pressured gas
  • Stringent Jacket leakage test by water and pressured gas
  • Sanitary side mounted manway with pressured door
  • TC connected CIP arm with 360° coverage spraying ball
  • CO2 blow-off arm with butterfly valve
  • Full sanitary metallic sealed sampling valve
  • Mechanical safe valve PVRV 2 bar on top
  • Hydraulic shock pressure gauge on CIP arm
  • Rotating racking arm and port on cone with butterfly valve
  • Tri-clamp discharge arm with butterfly valve
  • Thermowell for high accuracy temperature sensor
  • 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support
  • Dry hopping port 4” TC with solid end cap











Delivery and packaging









Brewing process





Services



♦ Pre-sale:
Recommending suitable equipment according to customer requirements;customized process flow drawing;to design site layout according to the customer work site;craft beer project cost benefit analysis;providing several success project for your reference.

♦ Sale of services:
Timely communication with customers about equipment production schedules;guide customers to do site preparation work;to help customers handle the relevant business license procedures;help customers check and acceptance of the equipment,and coordinates delivery equipment

♦ After sale service:
Professional engineers free guide for installation;teach craft beef brewing technology;provide a variety of craft beer brewing recipe;supply of raw materials ;lifetime technical support



♦ Pledge:
from the customer contracted to buy our equipment the company will establish a special project file for tracking service.Our professional and technical service.Our professional and technical services staff will provide 24-hour technical support,if you have any questions,our technical staff will provide you with a reasonable solution at first time;make a solution within 12 hours if complex situations,engineer go to the scene to resolve the problem to ensure the normal operation of your equipment.
