Description
Micro Brewery can be a good start of your own brewery business with the size from 500L to 2000L. The brewhouse comprising of 2 or more vessels is mounted on a stainless steel skid or on the floor with piping, pumps, platform, etc, which are pre-built for convenient installation on site.
Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.
500L Beer brewing equipment
| Name |
500L brewery equipment for craft beer |
|
Heating method |
Electric/steam/direct fire heating |
|
Structure |
2-vessel, mash/lauter tank & kettle/whirlpool tank Combi-vessel |
|
Usage |
Pub/hotel/restaurant beer brewery equipment Mini beer brewery equipment |
|
Material of the board |
High-quality stainless steel |
|
Interior |
SUS304, thickness 3.0mm |
|
Exterior |
SUS304, thickness 3.0mm |
|
Insulation |
Polyurethane, thickness 80mm |
|
Cleaning |
CIP arm, 360° spray ball |
|
Temperature |
High accuracy temperature sensor, PT100 |
|
Cooling |
High efficiency plate heat exchanger |
|
Control |
Semi-auto control cabinet |
|
Wort ventilate |
Sanitary wort aeration device with sight glass |
|
Milling V-wire false bottom With lauter rakes Side spent grain manway Stainless steel top manway With tangent whirlpool inlet Efficient centrifugal wort pump Heating: dimple steam jacket/ stainless steel electric heating elements Sanitary stainless steel butterfly valves and pipeline connection Stainless steel heavy duty supporting legs Argon gas protection welding, well polishing |
|
Brewing equipment with pump,motor and raker
Two stage plate heat exchanger and yeast add tank
| Fermentation tank description: |
|
Description |
Jacketed Pressure Conical Beer Fermentation tank |
|
Capacity |
500L |
|
Material |
Stainless SUS 304 |
|
Main workmanship |
Pure argon gas welding; professional machine polish for inside and outside . |
|
Product characteristic |
1. Double jacketed conical fermentation tanks with dimple cooling jacket |
|
2. Technology :German method |
|
|
3. Finishing: mirror polishing ≤ 0.6um |
|
|
4. Interior thickness:3 mm; Exterior thickness:2 mm; Jacket:1.5mm |
|
|
5. Insulation: Polyurethane 80mm |
|
|
6. Pipeline connection : full stainless steel pipeline |
|
|
7. Matched fittings: the butterfly valves , the manway door , sight glass , CIP cleaning arm and rotatory balls , pressure gauge and temperature probe , adjustable feet |
|
|
8.Customized |
|
|
A) Capacity : from 500L -10,000L |
|
|
B) Cone degree:60; |
|
|
C) The position of manway door , on cylinder or dish head; |
|
|
D) Cooling jacket can be dimple jacket; |
|
|
E) Outter jacket finish can be mirror finish , brushed stainless steel finish |
|
|
F) The type of the manway door can be flange type or the nor type . |
|
|
G) The dish head can be signal or double |

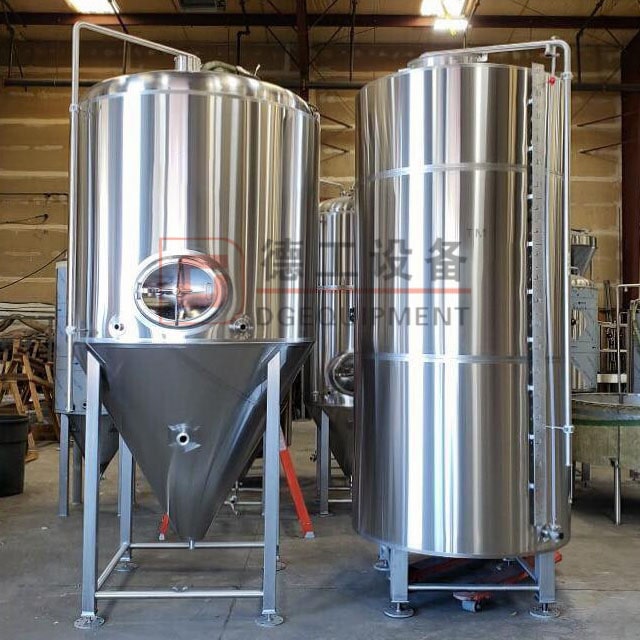

Brewing equipment fermentation tank with top manhole
(Side manholes are also available)
| Our company: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
Brewing ingredients:water;malt;yeast and hops
Brew process:Milling(Miller)–Mashing(Mash tank)–Lautering(Lauter tank)–brewing(Brew kettle)–Cooling–Fermentation(Fermentation tank)–Maturing/Conditioning(Conditioning tank)–Bottling–Packing
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.
Ready to ship
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
