Description
DEGONG mini beer equipment feature
- Certificate: CE, ISO, TUV
- Warranty: 3years
- Weight:Various in different models
- Inner Polishing Precision:0.4 micrometer
- We only use quality 304 stainless steel or 316L stainless steel
- Key components only use internationally renowned brands
- No matter which part of the weld is welded, we shall protect it with argon of 100% purity.
Mini beer equipment 500L Brewhouse unit details
Material: stainless steel 304
Heating method: steam heating or electric heating
Mash/lauter tun: raker with ABB motor,spent grains hatch, false bottom,temperature sensor,sparage ring and 360 spray cleaning ball
Boiling/whirlpool tun: Siemens VFD motor for agitator
Hot water tank:steam jacket or electric heating pipe,temperature sensor,360 spray cleaning ball.
Combination:
2-vessel:mash/lauter tun+boiling/whirlpool tun+hot water tank(optional)
3-vessel:mash tun+lauter tun+boiling/whirlpool tun
mash/lauter tun+boiling tun+whirlpool tun
For 500L brewhouse system, 2-vessel is the most suitable.3-vessel improve the saccharification efficiency, if you want to expand the brewery in the future, 3-vessel will be more suitable for you.
2-vessel:mash/lauter tun+boiling/whirlpool tun
mini beer equipment details
Mini beer equipment 500L/1000L fermentation system
Fermentation tank brief introduce
DEGONG stainless steel fermenters can be individually temperature controlled through glycol jackets and are mostly equipped with accessories such as pressure relief valve, CIP cleaning jet, sanitary sample valve, manhole,etc. The design of DEGONG fermenter is based on our vast beer knowledge and especially the conical fermenter bottom and the fact that we combine fermentation and maturation in the same vessel is very important. When calculating your fermenting and lagering capacity and configuration, sufficient time for fermenting and lagering to produce quality beers must be taken into consideration.

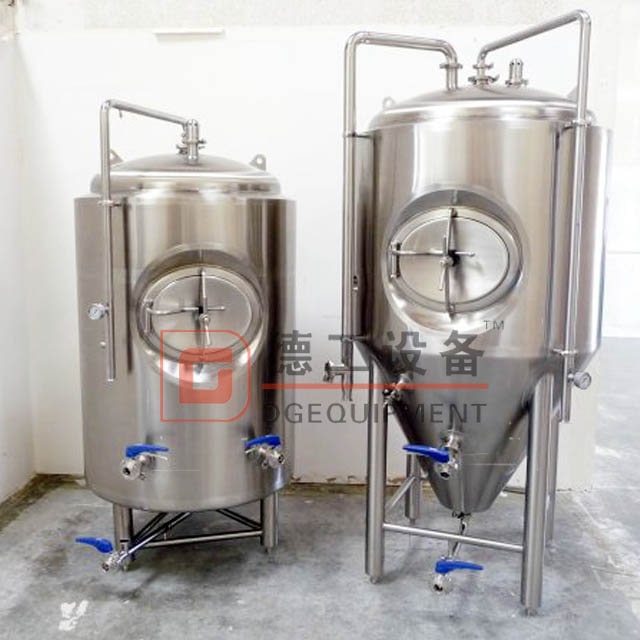

conical fermentation tanks
Mini beer equipment fermentation tank more information
Function: Used for keep wort fermentation or maturation.
Standard stainless steel conical cylindrical fermentation tanks
Single, double, triple or more size as brewhouse is common used in commercial breweries
Tanks quantity is exactly calculated by fermentation cycle for various beers
Roof walkway is for special request
Cooling method: dimple plate or glycol cooling jacket.
With all manhole, valves, pressure gauges, fittings etc.
Design pressure is 3bar; Working pressure is 1.5bar.
