The heart of any brewery is an efficient and consistent brewhouse.Utilizing state-of-the-art, PLC’s and automation allows DGET to deliver semi-automatic or fully-automated brewhouses that deliver repeatable, efficient and high-yield brews at the right price.
Brewery equipment —Brewhouse system features:
We manufactures brewhouses ranging from 1bbl up to 100bbl. Brewhouses are available in 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool), 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool), and 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool). All brewhouses are built of high-grade, 304 stainless steel.

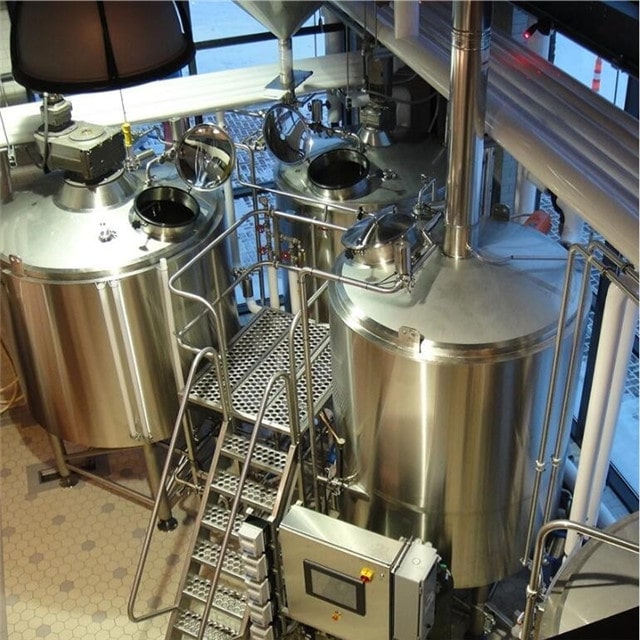

3 vessel brewhouse (Brewery equipment)
Standard Brewhouse configuration:
1. Mash / Lauter Tun with side grain out access
2. Brew Kettle / Whirlpool Vessel with temperature control
3. Semi-Automated Controls with PLC & Remote Access Support
4. 304 Stainless Steel Sanitary Pumps with VFD Controls
5. 304 Stainless Steel Plate Heat Exchanger
6. Manual Sanitary Butterfly Valves
7. Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions
8. Semi-auto control cabinet
9. High accuracy temperature sensor, PT100
10. Heating: stainless steel electric heating elements
11. Usage:Pub/hotel/restaurant beer brewery equipment
Brewhouse equipment details(such as platform,motor,filter board etc.)
Brewery equipment—Fermentation system features:
Fermenting vessel in brewery
We offers a wide array of fermenters(fermentation) and brite tanks(maturation) tanks that are designed accordingly to our customers’ specifications and their needs. Our fermenter and brite tanks come in three different generalized builds (customizable tanks are also available): single wall, un-jacketed and jacketed. All of our tanks can be pressurized (unless otherwise requested) and the fermenters have an added bonus of functioning as both a fermenter and BBT tank.
Standard fermentation tank Specifications:(Brewery equipment)
Interior Tank Thickness: 3.0 mm
Outer Shell Thickness: 2.0 mm
Polyurethane Insulation Thickness: 100 mm
Glycol Jacket (Dimple-Welded) Thickness: 1.5mm
Stainless steel (304) sanitary construction
100% TIG welded and sanitary polished
Blow Off Arm(x1)
Pressure Relief Valve(x2):
Units will be located on Top Dome & Blow Off Arm
CIP arm with rotating 360° spray ball(x1)
Racking Arm with DIN Fitting(x1)
Side Shadowless Manway(x1)
Dual Zone Cooling Jacket with glycol inlet and outlet
Glycol Inlet & Outlet located on Cylinder(x1)
Fermentation tank components
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.
Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.
For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.
|Package & Delivery|
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
