5BBL Beer Brewery Equipment for Craft Beer Brewhouse Free Combination Mash System 2/3/4-vessel Sus304/316 Or Red Copper for Sale

Free combination mash system  is to change the malt into a substance soluble in water, including mash, lauter, kettle, whirlpool. Then, if the wort is clear, it pumped via pipe into fermentation tank for its first fermentation. If the wort is not clear, it needs to be re-filtered. The heating method of mash system can be steam, electric and direct fire. The material of mash system is stainless steel or red copper.


Free combination mash system, what’s this?

Free combination mash systems are comprised of several key pieces of brewing equipment. The mash tun, lauter tun, brew kettle, and whirlpool, the brewmaster convert grain that has been milled through a grain mill, into sweet liquid called ‘wort’. Wort is subsequently fermented and finished in fermenters and bright beer tanks.

Free Combination Mash System

mash system basic technical parameter
Heating method steam/electric/direct fire heating

2-vessel: mash/lauter tun+boiling/whirlpool tun

               mash/lauter tun whirlpool tun+boiling tun

Optional: hot water(liquor)tank

Interior Stainless steel 304, thickness 3.0mm
Exterior Stainless steel 304, thickness 2.0mm
Usage Pub/hotel/restaurant beer brewery equipment
Insulation Polyurethane, thickness 100mm
Cleaning CIP arm, 360° spray ball
Temperature High accuracy temperature sensor, PT100
Control Semi-auto control cabinet
Wort ventilate Sanitary wort aeration device with sight glassmash

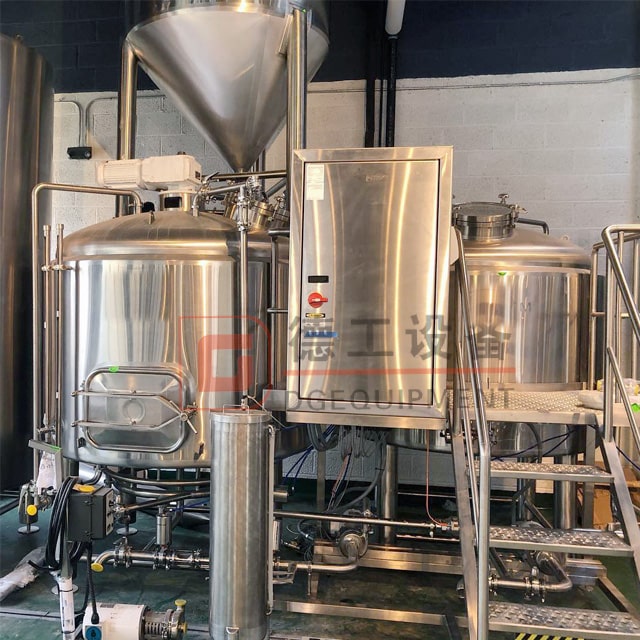

Free Combination Mash System 2-vessel: mash/lauter tun+boiling/whirlpool tun

Free Combination Mash System 3-vessel: mash/lauter tun+boiling/whirlpool tun+hot water tank


Free Combination Mash System 2-vessel: mash/lauter tun whirlpool tun+boiling tun

Free combination mash system characteristic
  • Milling V-wire false bottom
  • With lauter rakes
  • Side spent grain manway
  • Stainless steel top manway
  • With tangent whirlpool inlet
  • Efficient centrifugal wort pump
  • Heating: dimple steam jacket/ stainless steel electric heating elements
  • Sanitary stainless steel butterfly valves and pipeline connection
  • Stainless steel heavy duty supporting legs
  • Argon gas protection welding, well polishing

Free Combination Mash System Free combination mash system details


Free Combination Mash System Free combination mash system connections details

If you have interest, get in touch with me freely.
