5HL 10HL mash/kettle/whirlpool tun & lauter tun brew system brewery for sale

Every brewery project is custom from the ground up and our on-site teams will be able to configure your project from concept to commissioning. Our team will help build reach your output goals with the right sized brewhouse and proper vessel configuration.

Description

The 5 or 10 hl. DEGONG’s brewery is the ideal model for microbreweries and brewpubs that want to enter into the craft beer world, but also for wineries, farms, beverage manufacturers and restaurant owners looking to diversify an existing business.

Consisting of an AISI 304/316 stainless steel single-block structure with all its parts already connected, this Brewhouse is ready for operation after connection to the electric, water and/or gas supply lines. Complete with a mash / kettle / Whirlpool tun, a lauter tun, a hot liquor tank and a cooling exchanger, the single-block Brewhouse also provides the possibility to connect another tun for the production of double batches.

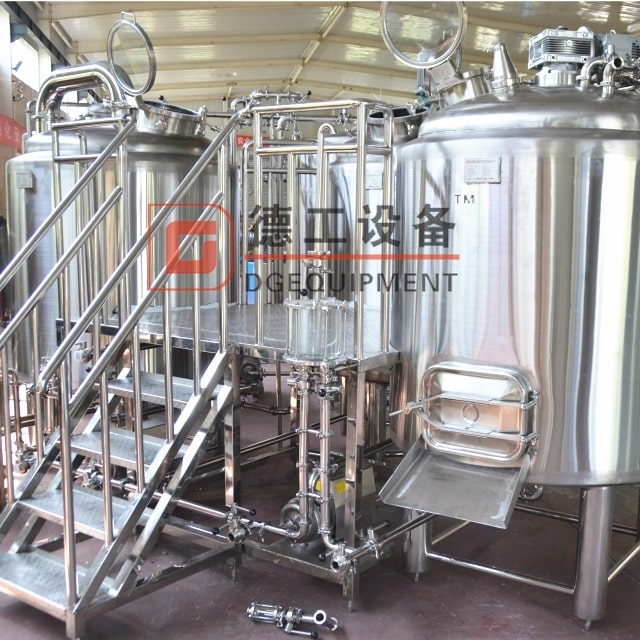

5HL DEGONG brew system



Suitable for the production of any types of beer, this Brewhouse is user-friendly, simple to operate and requires no extra labour when being moved or replaced. The wort recirculation process inside the wall under the level of the liquid and the transfers from the lower part that limit the possibility of oxidation of the wort, together with the lautering performed in a independent tun, guarantee the high efficiency of this Brewhouse.

QQ截图20200508154907

5HL brew system with HLT

Mash/Kettle/Whirlpool tun(brew system)

  • AISI 304 stainless steel material
  • Steam or electrical heating
  • Mechanical Agitator with two blades connected to the bottom
  • Internal cleaning spray-ball
  • Termal insulation 100mm
  • Tangential inlet for Whirlpool
  • Safety probe to control overboiling

Lauter tun(brew system)

  • AISI 304 stainless steel material
  • Stainless steel removable filtration plate trapezoidal passage.
  • Side hatch with chute to unload spent grain
  • Internal cleaning spray-ball
  • Double wall thermal insulation
  • External glass level indicator to control filtration speed
  • Rake
  • Rotating blade to cut and extract spent-grain

Components

  • AISI 304 stainless steelone or two-stage tubular/multitube or plate heat exchanger
  • Plate degree (°P) cooled inspection station and basin
  • Hygienic stainless steel piping and valves
  • Flowmeter
  • Flowmeter to check the filtration speed and wort clarity
  • Liquid transfer pump

Electric control

  • AISI 304 stainless steel panel
  • Pump and agitator control
  • Touch-Screen PLC for the automatic control of the mash and production process with the possibility to memorize the recipes
  • Inverter to regulate the speed of pumps and agitator



Hot Liquor Tank(brew system)

  • AISI 304 stainless steel tank
  • Internal washing device
  • Termal insulation
  • Water heating system
  • Water delivery pump
  • Temperature control



Brew system FERMENTATION TANKS



DSC_8839Brew system cellar tanks in our factory



FERMENTATION TANKS/UNITANKS

Useful capacity from 1 to 200 hl; Available with simple or cooled/insulated wall; with conical bottom.

  • Possibility to choose among various finishing: satinized, 2B, mirror polished;
  • Constructed with at least 20% more useful volume, in order to prevent spilling of foam during the fermentation phase, and high-quality, hermetically welded AISI 304 stainless steel coating;
  • Constructed with food-grade TIG welding with Argon inert gas protection;
  • Complete with insulating system at the bottom and on the shell in order to avoid temperature loss;
  • Supplied with upper manhole or side manhole
  • Equipped with spray balls to guarantee complete cleaning;
  • CE Certified



 fermenting vessel

Brew system Fermentation tanks details

DEGONG BREWERY



QQ截图20200804174018
