600L customized industrial beer brewing equipment for sale

Mash system, it is the most important part of beer brewery equipment. The brewhouse is the beating heart of brewing operation. A weak, inefficient heart cannot be exerted and doesn’t last. A durable and efficient brew house from DG Equipment ensures your brewery every opportunity to thrive. We understand that each brewer has his or her own brewing methodology and budgetary requirements, therefore DG offers varying levels of automation and customization of two, three and four vessel brewhouse configurations.

Category:

Description

600L customized industrial beer brewing equipment for sale20190510005780768076.jpg

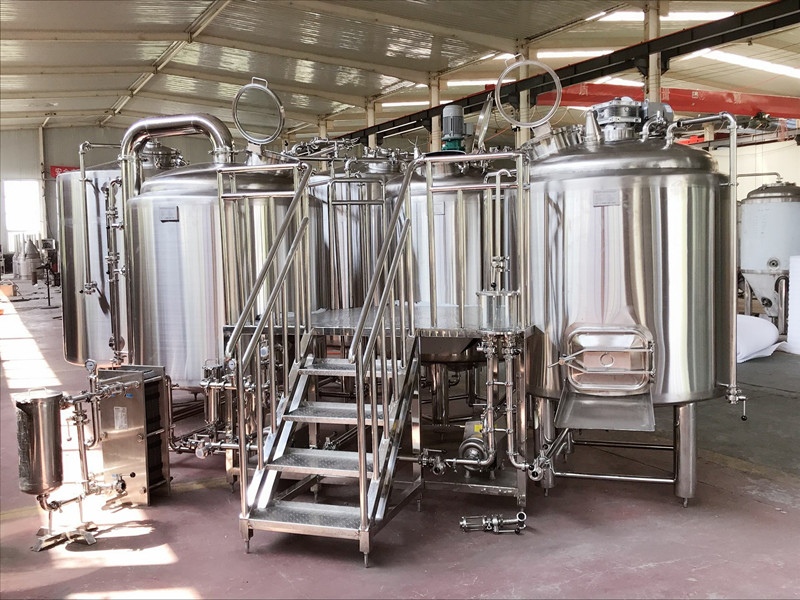

For 600L brewhouse,mash system includes mash/lauter tank and boiling/whirlpool tank and hot water tank.

The heating method can be electric heating,steam heating and direct fire heating.In particular, steam is heated more evenly and more quickly.

Effective volume:600L Total volume:700L
Inner thickness:3mm Outer thickness:2mm
Material:stainless steel Design pressure:0.3Mpa
Insulation:polyurethane 70mm Working pressure:0.12-0.15Mpa
The precision of polishing can up to Ra 0.6 µm Interior:mirror polish
CIP 360 degree omni bearing cleaning  Temperature way:double metal thermometer

Features:

All connections are fully welded Tri Clamp fittings

0.12 -0.15Mpa operating pressure; 0.3Mpa design pressure

Pressure gauge

Versitile port for dry hopping, CIP, and the pressure relief valve

Sampling valve

Thermowell for thermometer

Carb stone with 1/4 in ball valve

Blow off cane ,ball valve

Polyurethane insulation jacket

Custom ss butterfly valves with racking arm

Stainless lower shelf

Adjustable feet

Industrial beer brewing equipment details


Beer brewing equipment SUS304 600L
Interior SUS304 Thickness 3mm
Exterior SUS304 Thickness 2mm
Bottom cone 60 degree for fermentor 150 degree for brewhouse
Heating/Cooling method Steam heating/Glycol cooling Dimple jacket
Temperature control PT100
Pressure display SUS304 Pressure gauge
Pressure relie SUS304 Pressure relief valve
Cleaning SUS304 CIP arm with 360 spary cleaning ball
Insulation layer Polyurethane 70mm
Manway SUS304 Clamp or flange manway
Sampling valve SUS 304 Aseptic type, no dead coner
Dry hops adding port SUS304 Optional, clamp type
Carbonation device SUS304 Optional
Yeast adding tank SUS304 30L
Bright beer tank SUS304 single or double walled available



Exhibition


Our company&factory

DEGONG equipment technology Co., Ltd. specializes in designing, researching and manufacturing beer brewery equipment, beer bottling and canning line and the subsidiary equipment.




Certifications

 DSC_7164_copy_2000x_



We have CE&ISO certification, etc., which is praised by the industry for its high quality and excellent service level.

We are a reliable partner of professional brewing equipment.
