+7℃~+35℃ Air Coold Screw Chiller

Description

+7℃~+35℃ Air Coold Screw Chiller

Model ：DGET-CS

Cooling capacity: 22TR~200TR

Refrigerant: R22/R134a/R407c/R410a

Power supply: 3Phase-380V/415V/440V/460V/480V-50HZ/60HZ

Lead time: 15~20 working days

No.：12

DGET-CB series air cooled screw chiller widely used in plastic injection, extrusion, plating, mold, hydraulic, chemical, leather, printing, profiles of oxidation, reaction kettle, chemical fiber, vacuum coating, paper making, textile, central air conditioning refrigeration and various aspects of water centralized water supply, especially suitable for the inconvenience for water and the water pipe ground.





Air Cooled Screw Chiller Normally Temperature Series( Single System)
Model		DGET-30C	DGET-40C	DGET-50C	DGET-60C	DGET-80C	DGET-100C	DGET-120C	DGET-150C	DGET-180C
Cooling capacity	USRT	22.2	31.0	40.4	43.2	58.3	72.5	87.6	114.9	133.6
	Kcal/h	67080	93740	122120	130720	176300	219300	264880	347440	404200
	KW	78	109	142	152	205	255	308	404	470
Power supply		3PH-380V-50Hz
Refrigerant	Type	R22
	Controler	Thermostatic expansion valve
Compressor	Type	Semi-hermetic screw
	Power(kw)	28	38	47	52	68	83	97	124	146
	Start	Y-△
	Capacity control	25%-50%-75%-100%
Evaporator	Type	Shell and tube
	Water flow(m³/h)	13	19	24	26	35	44	53	69	81
	Dia.of inlet/outlet(inch)	DN65	DN65	DN80	DN80	DN80	DN80	DN80	DN100	DN100
Condenser	Type	Inner screw copper tube aluminum plate fins
	Air cooling flow(m³/h)	27000	40000	50000	60000	80000	100000	120000	150000	180000
Protection System		Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	2350	3200	3200	3300	3300	4400	3850	4750	5850
	W	1450	1450	1450	2300	2300	2300	2200	2200	2200
	H	2150	2150	2150	2400	2400	2400	2350	2450	2450
Weight(kg)		1800	1900	2300	2480	3200	3800	3300	4000	5000

* Testing working condition: chilled water inlet/outlet temperature 12℃/7℃，Cooling water inlet/outlet temperature 30℃/35℃。

* Customise accept for the special working need.

* Any specification will be changed based on technical update.

• Adopt the world famous semi-hermetic screw compressor, low noise, and super cooling.
• Adopt high efficiency evaporator with seamless welded inside screw heat exchange tubes.

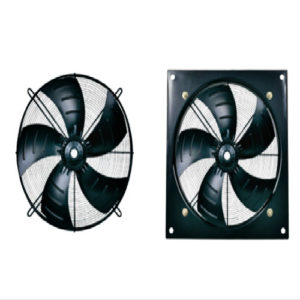

• Adopt the top row of suction type finned radiator, low noise fan motor, strong air cooling and high efficiency heat exchanger.
• Adopt the metal antirust type machine box which can suitable for waterproof which can work in outdoor , to avoid the air cooled chiller unit ventilated limited and lead to the high pressure indoor.
• Adopt the most advanced industrial third generation 5 to 6 teeth asymmetrical design of double screw compressor.
• Adopt micro-computer controller, display the temperature, protect, fault code and etc to the control panel, easy operate.
