7BBL customized customized popularity brew tanks for sale

DEGONG provides semi and fully automated beer brewing equipment worldwide, including installation, training to start your production. We deliver Brewhouses & turnkey projects and like tanks, CIP unit, Keg cleaning, pasteurizer, yeast propagation. we build brewery systems with high technology, perfect craftsmanship at best value for money.

Category: Tags: , , ,

Description

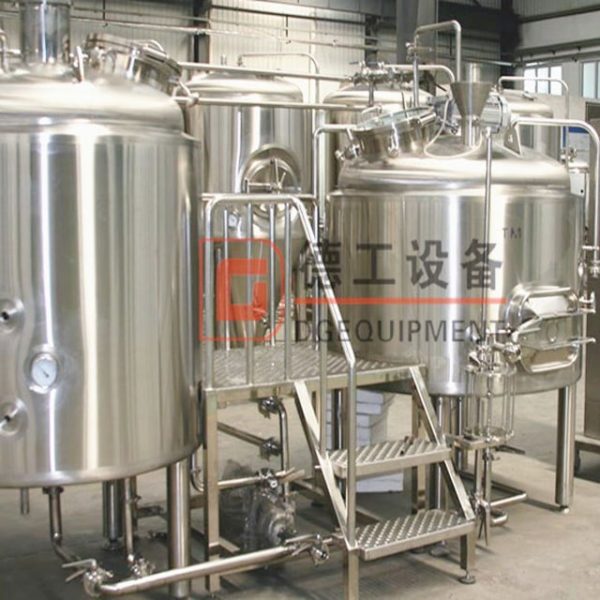

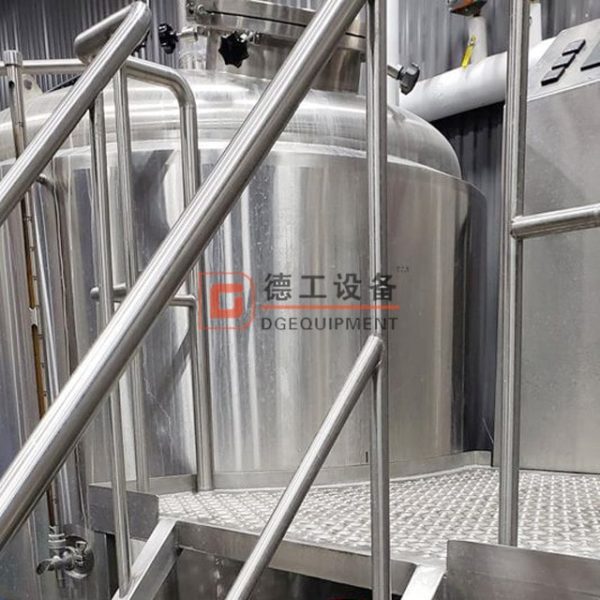

2-vessel brew tanks

Hot Liquor Tanks:

Electric element tri-clamp ports or steam jacketing

Insulated & non-insulated available

Tangential input is standard on our turnkey systems. This is used to recirculate the water to be sure the temperatures are consistent throughout the tank.

CIP Port

Mash Tuns:

heated for electric systems or steam jacketed

Insulated & non-insulated available

Available with a rake / plow on sizes larger than 5bbl

Grist hydrators available on the larger sizes

Circulation ports (double tri-clamps) are standard

CIP Port

Automated wort grant available

Brew Kettles:

Insulated & non-insulated available

Tangential whirlpool port standard

Condensate stack adapter available

Condenser available

CIP Port

Platforms:

100% Stainless

Sized to match the brewing tanks in your system



Brew tanks features:

All connections are fully welded Tri Clamp fittings

0.12 -0.15Mpa operating pressure; 0.3Mpa design pressure

Pressure gauge

Versitile port for dry hopping, CIP, and the pressure relief valve

Sampling valve

Thermowell for thermometer

Carb stone with 1/4 in ball valve

Blow off cane ,ball valve

Polyurethane insulation jacket

Custom ss butterfly valves with racking arm

Stainless lower shelf

Adjustable feet

Made from 304 stainless steel



The grains are mashed in the mash tun and then separates the wort from the grains through a plate heat exchanger and then to the fermenter:

Raker;Top manway;Conical head;False bottom

Warranty period:

  1. For main parts of the equipment such as brewhouse tank, fermentation tank, bright beer tank, hot water tank, glycol water tank, etc… the warranty period is 24 months.
  2. For other components such as refrigeration unit, control components, etc… the warranty period is 12 months.
  3. Our equipments have been approved by TUV. Our equipments is accord with the German standard quality.



Contact Alice today!

Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered. Get in touch with me.

​
