Description
Nano beer brewery can be a good start of your own brewery business with the size from 200L to 1000L.The 800L brewing equipment is customized for customers by senior engineers of DEGONG.With customized design, you could have your own nano brewhouse according to your craft for your brewpub, restaurant, hotel, etc. We have engineer teams, knowing about starting gravity of beer you want to produce and capacity of brewery, we will work with you together on the specific designs.
800L Nano Beer Brewery | ||
Mill system | mill machine |
Material : stainless steel Roller Material: alloy This machine can remove the iron and dust automatically |
Mash system |
2-vessel:mash/lauter tun+boiling whirlpool tun+hot water tank 3-vessel:mash tun+lauter tun+boiling/whirlpool tun |
Inner stainless steel 304 TH=3.0mm Outer stainless steel 304 TH=2.0mm The inner surface polishing precision: Ra 0.4um |
Heating method:steam/electric/direct fire heating 100% Stainless Steel Plate Heat Exchanger With hot water pump, wort pump, raker, operation platform, false bottom, motor, cleaning ball |
||
Fermentation system |
800L or 1600L fermentation Tank Bright Beer Tank. You decide quantity |
Inner stainless steel 304 TH=3.0mm Outer stainless steel 304 TH=2.0mm The inner surface polishing precision: Ra 0.4um Cone bottom:60 degree Design pressure 0.3MPa; Working pressure 0.15Mpa |
Cooling way:dimple jacket With sample valve, mechanical regulation valve, pressure valve, thermometer, raking arm |
||
Cooling system |
glycol water tank |
Material:SUS304,brushed outer shell Insulation:polyurethane ;TH=80mm Interior Shell:full welded;TH=3mm Exterior Shell:full welded;TH=2mm Level gauge Inner tank mechanical polishing and out Plate Surface protection, ribbon polished on welds 100%TIG welding with pure argon gas shield |
chiller | Sufficient cooling capacity, self protect control Refrigerant:high efficiency | |
Control system | PLC cabinet |
Material: Carbon Steel OR Stainless Steel Component has CE certificate Optional: UL Certificate, Siemens component, Omron component |

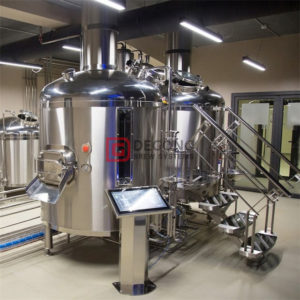

800L Nano Beer Brewery picture
800L Nano Beer Brewery brewhouse system
Nano Beer Brewery fermentation system
cooling system(glycol tank &chiller)
Nano Beer Brewery control system
DEGONG brief introduce
If you have interest, get in touch with me freely.
