Description
The heart of any brewery is an efficient and consistent brewhouse.Utilizing state-of-the-art, PLC’s and automation allows DGET to deliver semi-automatic or fully-automated brewhouses that deliver repeatable, efficient and high-yield brews at the right price.
Brewhouse system features: |
We manufactures brewhouses ranging from 1bbl up to 100bbl. Brewhouses are available in 2-vessel systems (Mash Tun/Lauter Tun and Kettle/Whirlpool), 3-vessel systems (Mash Tun, Lauter Tun, Kettle/Whirlpool), and 4-vessel systems (Mash Tun, Lauter Tun, Kettle, Whirlpool). All brewhouses are built of high-grade, 304 stainless steel.
Sus 304 Brewery equipment
Customized brewhouse configurations:
-
1.Mash Tun / Lauter Tank & Brew Kettle / Whirlpool Tank (2 vessels)
-
2.Mash Tun & Lauter Tank & Brew Kettle / Whirlpool Tank (3 vessels)
-
3.Mash Tun / Lauter Tank & Brew Kettle & Whirlpool Tank (3 vessels)
-
4.Mash Tun & Lauter Tank & Brew Kettle & Whirlpool Tank (4 vessels)
Heating method:
-
Steam heating(Optional):electric boiler;gas boiler;diesel boiler
-
Burner(Optional)
-
Electric Heating(Optional)
Brewery equipment–brewhouse
Description | Customized brewhouse brewery equipment |
Mash tun(1000L) | Steam jacket on bottom and side |
Agitator inside | |
Wort hydrator mounted top of mash tun | |
Lauter tun(1000L) | Grain rake with VFD |
Laser cutting V-wire False Bottom | |
Easy clean and detachable sparging spray ring | |
Anti-rinser(optional) | |
Brew Kettle Tun(1000L) | Steam Jacket on bottom and side |
Steam vent with condensate ring for kettle stack | |
Whirlpool Tun | Steam Jacket on bottom and side |
Hot water tank(1000L) | Or 2000L available |
Heat exchanger | SUS304 plate |
single or two stage |
Rakers,Spent grain hatch,Agitator
Grain slide channel and Sanitary sight glass
Fermentation system features: |
A set of fermentation tank in the brewery cellar
Brewery equipment–ferment
Description | Conical Beer Brewery Fermentation tank |
Capacity | 1000L |
Material | Stainless steel SUS 304 |
Quality control | Pressure testing |
Main workmanship | Pure argon gas welding; professional machine polish for inside and outside |
Product characteristic | 1. Double w conical fermentation tanks with dimple cooling jacket |
2.Finishing: mirror polishing ≤ 0.6um | |
3. Interior thickness:3 mm;Exterior thickness:2 mm;jacket:1.5mm | |
4.Insulation: Polyurethane 100mm | |
5.Pipeline connection : full stainless steel pipeline | |
6.Matched fittings: the butterfly valves , the manway door , sight glass , CIP cleaning arm and rotatory balls , pressure gauge and temperature probe , adjustable feet | |
Customized | Capacity : from 500L -20,000L |
Cone degree:60 | |
The position of manway door , on cylinder or dish head; | |
Cooling jacket can be dimple jacket; | |
The type of the manway door can be flange type or others. | |
The dish head can be signal or double |

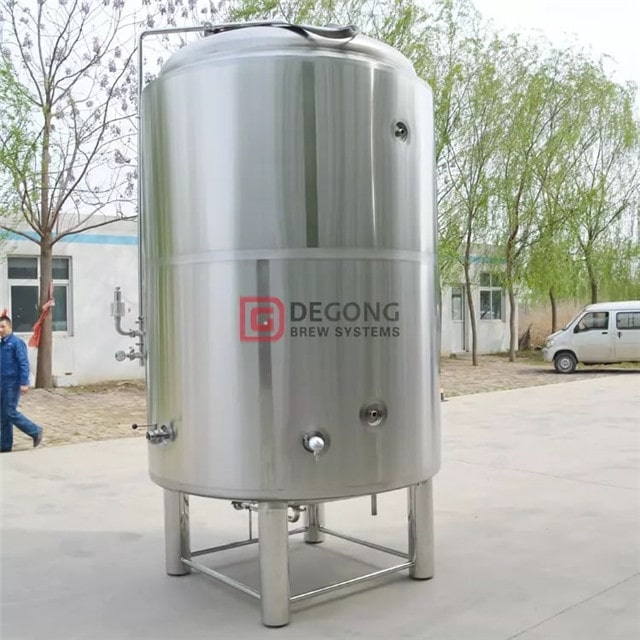

Premium quality brewery Brite tank
Brite Vessel details:
-
304 stainless steel, TIG weld construction
-
Reinforced stainless steel legs, leveling foot pads
-
Shadowless manway
-
Multi-zone glycol dimpled cooling jackets
-
Rotary spray-ball CIP 360° coverage
-
Rotating racking arm, DIN fitting & easy-grip handle
-
Sanitary thermowell
-
Sample valve
-
Pressure / vacuum relief valve (PRV)
-
All butterfly valves included
DGET introduction: |
Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.
After-sales service:
- After delivering the equipments to our customers, DEGONG will arrange special worker to do the track service, because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service.
- Within the warranty period, any malfunctions caused by the quality issues, DEGONG will be responsible to it.
- For the malfunctions beyond the warranty period, DEGONG will also be responsible to it, but the seller should take in charge of the expenses.
Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.
Wooden box packaging,Load into container and fix
Contact information: |
If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
