Micro Brewery can be a good start of your own brewery business with the size from 500L to 2000L. The brewhouse comprising of 2 or more vessels is mounted on a stainless steel skid or on the floor with piping, pumps, platform, etc, which are pre-built for convenient installation on site.
By learning each brewer’s individual needs, we will work with you on first stage layout design, on just right lauter tun size, on piping design, on planning your expansion project in very first start to make your own micro brewhouse.
We design and produce a line of complete microbreweries to your specifications. Alternative brewhouse configurations are of 2-vessel, 3-vessel styles and customized. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry. Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.

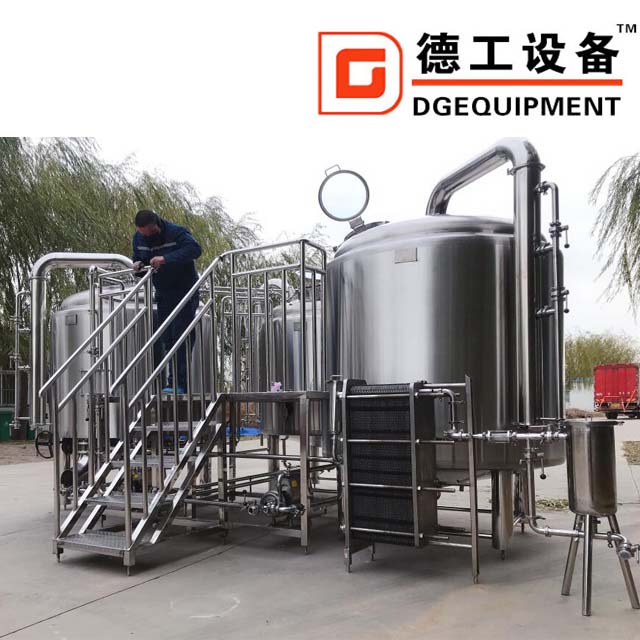

A set of brewhouse system with plate heat exchanger

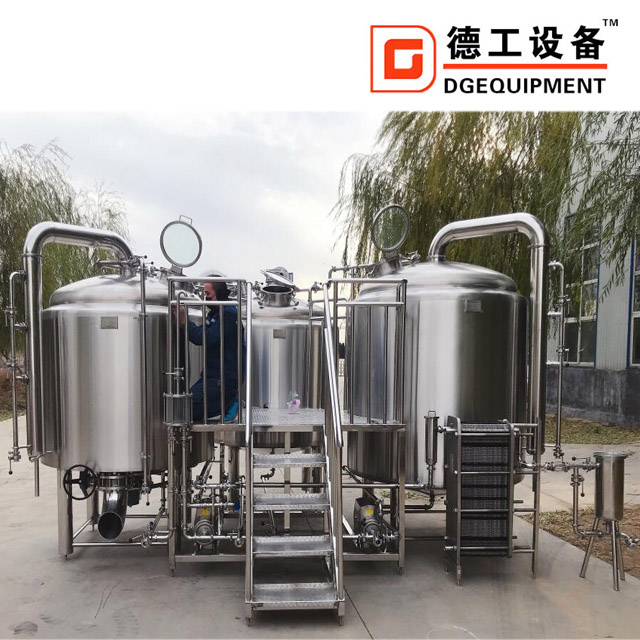

Brewery equipment–brewhouse system
2-vessel brewhouse configuration offer brewers a simple and cost effective solution. Through combining mash tun & lauter tun, and kettle & whirlpool into a 2-vessel solution, it will help you on space and cost saving without compromising brewing quality and control.
3-vessel brewhouse configurations offer brewers a more efficient and faster brewing solution and achieve multi temp. control for step mash. It can be comprised by mash/lauter, kettle/whirlpool, and hot water tank.
4-vessel brewhouse configuration offer brewers a professional and higher performance brewing solution for multi batches brew per day. It is comprised by mash, lauter, kettle, whirlpool. DG’s 4-vessel brewing system offer you options of semi-auto or automation controlling and overall flexibility.
Combining the mash tun and lauter tun functionality into a single tank unit increases your efficiency and reduces your brewing equipment costs.
Plate heat exchanger
Spent grains port
2000L brewery equipment plant for craft beer
Electric/steam/direct fire heating
2-vessel, mash/lauter tank & kettle/whirlpool tank
Combi-vessel, lauter/whirlpool, kettle
Pub/hotel/restaurant beer brewery equipment
Mini beer brewery plant equipment
Stainless steel 304/316
Stainless steel 304, thickness 3.0mm
Stainless steel 304, thickness 2.0mm
Polyurethane, thickness 100mm
CIP arm, 360° spray ball
High accuracy temperature sensor, PT100
High efficiency plate heat exchanger
Semi-auto control cabinet
Sanitary wort aeration device with sight glass and carbon stone
Milling V-wire false bottom
With lauter rakes
Side spent grain manway
Stainless steel top manway
With tangent whirlpool inlet
Efficient centrifugal wort pump
Heating: dimple steam jacket/ stainless steel electric heating elements
Sanitary stainless steel butterfly valves and pipeline connection
Stainless steel heavy duty supporting legs
Argon gas protection welding, well polishing
|Fermenter technical parameters|
Brewery equipment–fermentiing system
The task of brewer yeast in the primary fermentation stage is to convert part of the sugars in the wort into alcohol. At the set degree of fermentation the fermentation process is interrupted (not to be the full conversion of 100 % sugar).
This section includes all tanks designed to the primary fermentation of beer.
A row of conical stainless steel fermentation tank
Fermentation tank with bright side manhole
Pressure gauge,racking arm and valve
Jacketed Pressure Conical Beer Fermentation tank
Pure argon gas welding; professional machine polish for inside and outside .
1. Double jacketed conical fermentation tanks with dimple cooling jacket
2. Technology :German method
3. Finishing: mirror polishing ≤ 0.6um
4. Interior thickness:3 mm;Exterior thickness:2 mm;jacket:1.5mm
5. Insulation: Polyurethane 80mm
6. Pipeline connection : full stainless steel pipeline
7. Electric elements : With high quality Chinese famous brand or the international famous brand also is avalilable .
8. Matched fittings: the butterfly valves , the manway door , sight glass , CIP cleaning arm and rotatory balls , pressure gauge and temperature probe , adjustable feet
A) Capacity : from 500L -10,000L
B) Cone degree:60;
C) The position of manway door , on cylinder or dish head;
D) Cooling jacket can be dimple jacket;
E) Outter jacket finish can be mirror finish , brushed stainless steel finish
F) The type of the manway door can be flange type or the nor type .
G) The dish head can be signal or double
|Packaging & Delivery|
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.
Ready for shipment
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
