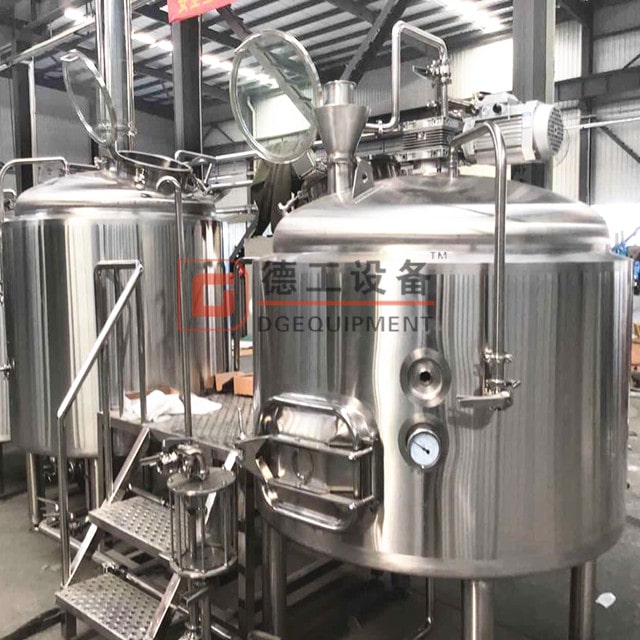

Turnkey Craft Brewhouse Equipment with Steam Jacket for Sale

DEGONGET brewhouse system are built entirely of 304 stainless steel and can be customized entirely to your needs. Whether you are looking for smaller, single tanks for nano/pilot systems or large, full rake agitation systems with combination vessels or separate mash mixer and lauter tuns, we can manufacture the tanks which can fit your need for your brewery.

Category: Tags: , , , , , ,

Description

DEGONGET brewhouse equipment are built entirely of 304 stainless steel and can be customized entirely to your needs. Whether you are looking for smaller, single tanks for nano/pilot systems or large, full rake agitation systems with combination vessels or separate mash mixer and lauter tuns, we can manufacture the tanks which can fit your need for your brewery.

  • Mush/brewhouse heated via steam, (electric or direct fired are also available)
  • Flexible brewhouse designs to accommodate your available square footage and ceiling heights
  • Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination，configurations from 2-vessel to multi-vessel designs

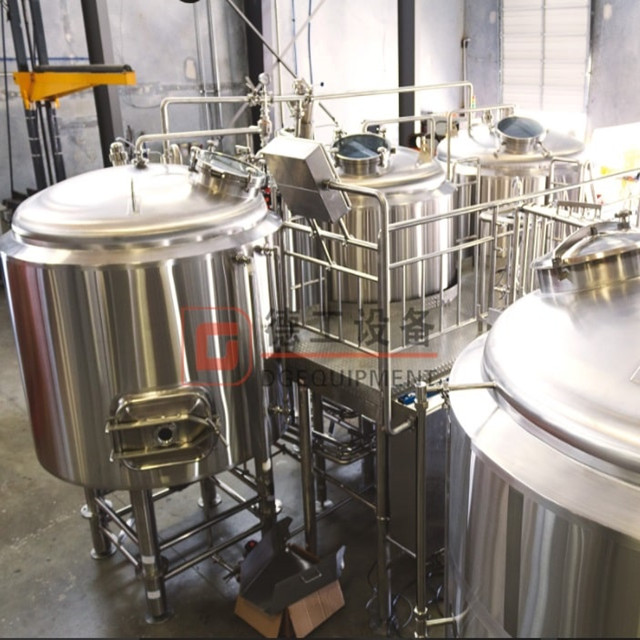

mash system_副本-min

 Brewhouse system

Mash/lauter tank

  • Material: Inner(SUS304),thickness: 3.0mm;
  • External-Jacket(SUS 304), thickness: 2.0mm;
  • Cylinder (sharp type, SUS304), thickness: 2.0mm.
  • Inner surface treatment: welds grinded to Ra 0.6µm.
  • Insulation: Polyurethane-thickness 100 mm.
  • Temperature way:Double metal thermometer
  • Outer surface processing: Weld polishing processing
  • Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
  • CIP 360 degrees Omni bearing cleaning
  • Integrated CIP System
  • Hot Liquor Tank –Designed and Sized for Double Brew efficiency
  • Cold Liquor Tank –Fully insulated and integrated
  • Stainless steel 304 pump with ABB or Siemens motors
  • Grain raker
  • 304 stainless steel operate platform and stairs

Mash+Tun+2_副本-min-min

over view of the mash/lauter tank

Kettle/whirlpool tank

  • Material: Inner(SUS304),thickness: 3.0mm;
  • External-Jacket(SUS 304), thickness: 2.0mm;
  • Cylinder (sharp type, SUS304), thickness: 2.0mm.
  • Inner surface treatment: welds grinded to Ra 0.6µm.
  • Insulation: Polyurethane-thickness 100 mm.
  • Temperature way:Double metal thermometer
  • Outer surface processing: Weld polishing processing
  • Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
  • CIP 360 degrees Omni bearing cleaning
  • Integrated CIP System
  • Hot Liquor Tank –Designed and Sized for Double Brew efficiency
  • Cold Liquor Tank –Fully insulated and integrated
  • Stainless steel 304 pump with ABB or Siemens motors
  • whirlpool port and stir blades
  • 304 stainless steel operate platform and stairs



QQ图片20200424091453-min

wort pump& ABB motor

Hot water tank

  • Material: Inner(SUS304),thickness: 3.0mm;
  • External-Jacket(SUS 304), thickness: 2.0mm;
  • Cylinder (sharp type, SUS304), thickness: 2.0mm.
  • Inner surface treatment: welds grinded to Ra 0.6µm.
  • Insulation: Polyurethane-thickness 100 mm.
  • Temperature way:Double metal thermometer
  • Outer surface processing: Weld polishing processing
  • Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
  • CIP 360 degrees Omni bearing cleaning
  • Integrated CIP System
  • Hot Liquor Tank –Designed and Sized for Double Brew efficiency
  • Stainless steel 304 pump with ABB or Siemens motors



Beer brewing process

The brewhouse equipment are the vessels for the process of mashing.

After the malt is crushed, it should be transferred into the mash/lauter tun to dissolve the substances in the malt. The crushed malt is then mixed with the brewing water and heated.The insoluble substances in the mash are separated from the liquid in the lautering tun. The husks and other matter sink to the sieve base. They form spent grains cake, which is a natural filter.

Wort boiling is a fundamental step in the production of premium-quality beer. Hops are added to the wort and boils the mixture in the kettle. Then it will be drain out in the whirlpool tank.

0000-min

BrewingProcess_1_副本-min

Packing&delivery

Standard packing:

Cord ,film membrane

Firm membrane, wood box for free fumigation

Transport: by sea

Delivery :

– We put your order into our tight production schedule to ensure the punctual delivery time.

– Production or inspection report before your order packed.

– Shipping notice/ insurance to you as soon as your order is shipped.

0001-min

Our certificate

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.



01-min

Contact us

Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
