Industrial 1000L beer brewing equipment Available Customized in Cellar

Description

.png

Beer brewing process diagram

Milling-Mashing-Lautering-Boiling-Whirlpool-Cooling-Fermenting-Maturing-Packing

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components. Breweries have classic packaging arrange consisting of brewing kettle,fermentation vessels and additional equipment.The brewery equipped with semiautomatic control panel.Staff training occurs during installation of equipment and test brews.



Brewhouse system:(Beer brewing equipment


Two roller malt mill machine

Malt mill machine(beer brewing equipment Auxiliary)

Specially designed for higher extraction rates and brewhouse yields

Consistent grind and precise particle size control

Machine reliability and ease of use

Thicker steel for more durability

Reliable direct drive grinding rolls

Easy access grease banks

Sample ports easily accessed so you can check your product anytime

Multiple attachments to accommodate your in feed and discharge needs, including appropriately sized stands to allow for proper clearance

Made in the USA

12 month warranty

Dust Tight

100% Customer Satisfaction Guarantee on all brew mills




Beer brewing equipment(2 vessel)

The system can be heated by steam,electricity or gas;and controlled by manual,semi-automatic or full automatic.The mainstream of two-vessel brewhouse is steam heated and manual controlled system.



Brewhouse feratures:Standard Brewhouse configuration:

1. Mash / Lauter Tun with side grain out access

2. Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control

3. Semi-Automated Controls with PLC & Remote Access Support

4. 304 Stainless Steel Sanitary Pumps with VFD Controls

5. 304 Stainless Steel Plate Heat Exchanger with integrated temperature controls

6. Manual Sanitary Butterfly Valves

7. Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions

8. Semi-auto control cabinet

9. High accuracy temperature sensor, PT100

10. Heating: dimple steam jacket/ stainless steel electric heating elements

11. Usage:Pub/hotel/restaurant beer brewery equipment




Raker(frequency conversion)


Pipeline;false bottom filter and heat exchanger



Fermentation system:(Beer brewing equipment)

These fermenters have the minimum characteristics that we advise for the professional production of beer. They are made of stainless steel 304, they are cylindro-conical at 60º and they have a double jacket in the cylinder and cone to control the temperature.


Stainless steel conical fermenter in yard


Mechanical control valve;pressure gauge;racking arm;

Side manway;thermometer and carbon stone

Fermentation tank features:(beer brewing equipment)

-Food grade 304 stainless steel construction, interior/exterior

– Dual zone dimple cooling jacket with glycol inlet and outlet

– Sanitary interior finish with all welds ground and polished

– Fully welded exterior

– Polyurethane insulation for cooling jacket on sidewall and bottom

– Side shadowless manway door (optional top manway)

-60 degree conical bottom with 25% free head space

– CIP arm and 360 degree spray ball

– Racking port with Rotating racking arm

– PRV

– Pressure gauge

– Sample valve

– 4 legs with cross braces and adjustable feet

– 3 bar design pressure

– Tank valves and fittings

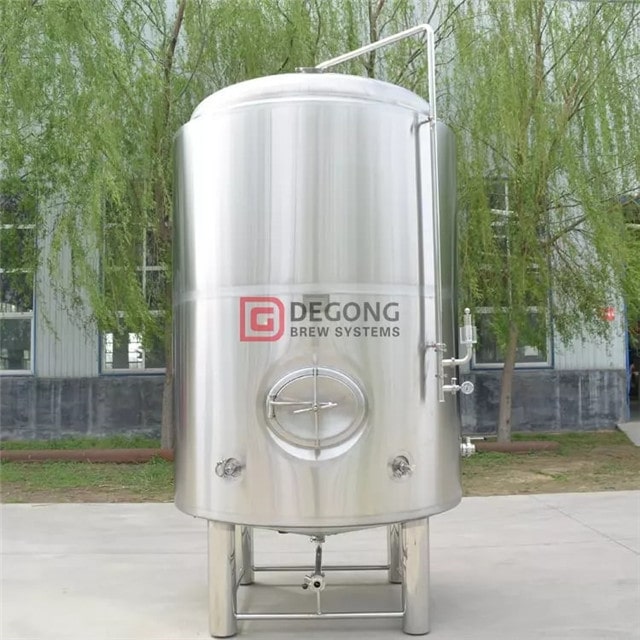

Brite tank front and back view

Brite tank features:

Outer shell: SUS304, 1.5mm thickness, brushed finished

Inner container: SUS304, thickness 3mm, smooth ground welds – 2B finish

Glycol jacket: SUS304, thickness 2mm, dimple welded

Insulation material: polyurethane, 100 mm thickness

Head space: 25% over stated size

Pressure rating: 0.15Mpa working pressure

Connections: PVRV, coolant inlet/outlet, Pt100 interface, sample valve, side man-door, carbonation stone, pressure gauge, analog temperature gauge, volume sight-glass, analog temperature gauge, rotating CIP ball and piping, center bottom product port.




Rotating racking arm and thermometer


Control panel(mashing,fermenting…)
