Looking for 800L Beer Brewbery Equipment One Barrel Brew System Local Microbrewery

Local Microbrewery or minibrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. Such breweries are generally characterized by their emphasis on flavor and brewing technique. The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete “turnkey” The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.


Description

Local Microbrewery or minibrewery is typically applied to breweries that are much smaller than large-scale corporate breweries and are independently owned. The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete “turnkey” The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.

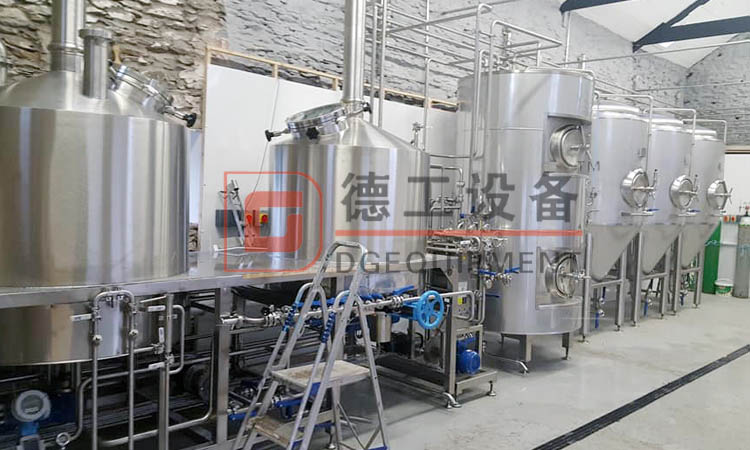

Local Microbrewery

A complete of brewery equipment

800L brewhouse unit configuration

Mash/lauter tun + Boiling/whirlpool tun + hot water tank

800L brewhouse unit heating method

Steam heating: it need a bolier. The bolier can be electric boiler, gas bolier and diesel bolier. Attention! Some countries are very strict about the using of boiler(like Ireland), we recommend electric heating.

Electric heating: it need electric heating tube.The advantage is cost saving. In some countries electricity is more expensive and the cost of using it is very high.

Direct fire heating: Compared with some countries, electricity is more expensive and the using of steam boiler is very strict, this way of heating is suitable.

800L Local Microbrewery brewhouse details

  • SUS304 operation platform with the workstation on it
  • Thickness of inner shell, outer shell and jacket is separately 3.0mm,2.0mm and 1.5mm.
  • Glass manhole at the top of the brewhouse tanks. (Logo of brewery can be printed on it freely)
  • 38mm piping for transferring fast.
  • ABB variable frequency pump; Siemen motors for the raker and
  • Equipping chute for removing the spent grain from the lauter easily



Local Microbrewery

Local Microbrewery Cooling system

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing

Efficiency chillers or refrigeration unit with fryonto supply cooling energy

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger

All pipes, fitting, insulation materials

Local Microbrewery Control system

Electrical controlling cabinet with temperature, on-off controlling for brewhouse

Electrical controlling cabinet with temperature, on-off controlling for cooling parts

Temperature controller, thermocouple, solenoid valves etc

PLC with touch screen panel for special request



Local Microbrewery



Local Microbrewery CIP system

Washing pump: Stainless steel anticorrosion pump

Alkali tank: Stainless steel 304; welds grinded to Ra 0.6μm

Sterilization tank: Stainless steel 304; welds grinded to Ra 0.6μm



If you want to know more about brewery, please contact with me any time.
