1000L commercial stainless steel brew kettle beer brewing system for sale

Description

Have you ever dreamed of setting up your own brewery or brewpub? Will you be excited if customers stop by your brewpub specially for a pint of beer brewed by you? Do you wanna get involved into an association where brewmasters in a certain region feel free to comment on brewing recipes and a series of thing related to beer brewing? If your answer is yes, then I guess you need a set of beer brewing system to start your own brewing career.

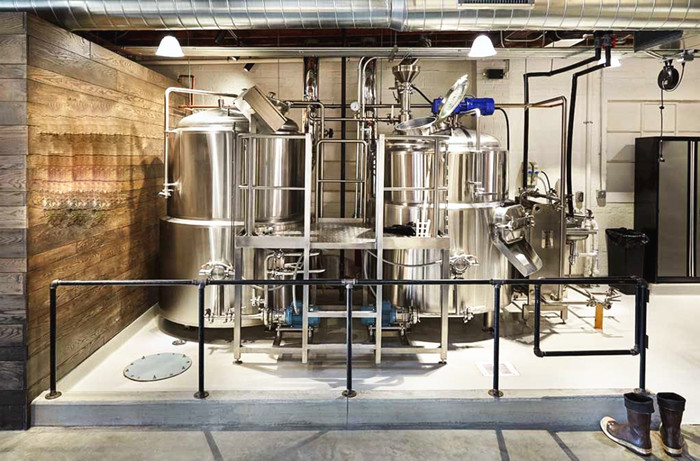

1000L stainless steel micro beer brewing system line



For those who are new to beer brewing field, a comlete set of beer brewing system is mainly consisted of 6 essential parts, which are respectively malt milling system, beer brewhouse system, fermentation system, CIP system, Cooling system and control system. Of course you can see many auxiliary equipment including bottling or canning line, kegs, kegs washer and filler, pasteurizer ,etc… in a brewery.



Quality of beer brewing system has a direct influence on quality of beer. So it is critical to make sure the beer brewing system is sanitary and high quality. Here I am gonna introduce you two main parts of DEGONG’s beer brewing system: Beer brewhouse system and beer fermentation system. Please check below:



Beer brewhouse system:



Beer brewhouse system is to extract useful matters including sugars, proteins, etc… from milled malt and boil it with hops. Beer brewhouse system can be designed as 2/3/4 vessel structure which depends on customer’s specific requirements. The more tanks a brewhouse system has, the more efficient a beer brewhouse system is. By the way, there are three heating method you can choose for your beer brewhouse system: Gas, electric and steam. For such a set of 1000L beer brewing system, steam heating method is the most used one since its heating evenness is better.





Standard technical parameters of a beer brewhouse system:


  • Complete stainless steel material
  • Steam, gas or electric heating method for your choice
  • CIP arm with stainless steel spraying ball of 360 coverage
  • Tempered glass manhole
  • Variable speed control rake system and wort pump
  • 2 vessel, 3 vessel or 4 vessel for your choice
  • Grist hydrator
  • Mini control cabinet for beer brewhouse system
  • Fully insulated with Polyurethane
  • Steam jackets on cone and body (Only for steam heating method)
  • Thickness of inner shell: 3.0mm
  • Thickness of outer shell: 2.0mm
  • Thickness of steam jacket: 1.5mm
  • Side manhole on lauter tun for discharging spent grain automatically



Auxiliary device for beer brewhouse system:

  • Operating platform which is completely made of stainless steel 304
  • Plate heating exchanger, Single-stage or dual stage for cooling wort
  • VFD sanitary wort pumps
  • Seamless stainless steel pipes
  • Wort aeration device, also known as Venturi tube
  • Yeast dosing tank



Fermentation system:


Fermentation tank is where the fermentation process happenes. Once the wort gets into fermentation tank, there will have 2 reactions occuring. The one is aerobic respiration and the other is anaerobic respiration. After the fermentation process is done, the beer can be drinkable.



  • 100% TIG welded with argon gas protection
  • Sanitary stainless steel construction
  • Thickness of inner shell: 3.0mm
  • Thickness of outer shell: 2.0mm
  • Thickness of glycol jacket: 1.5mm
  • Working pressure: 1.5-2 Bar
  • Design pressure: 3 Bar
  • Fully insulated with Polyurethane
  • Glycol jackets on body and cone
  • Mirror polishing for inner shell and 2B treatment for outer shell
  • 4 pcs of heavy duty stainless steel with leveling footpads
  • Dual cooling zones with glycol water inlet and outlet





Components (From top to bottom):

  • Pressure relief & vacuum valve
  • Dry hopping hole
  • Top manhole or side manhole
  • Pressure gauge
  • Pressure bunging device
  • Thermowell for RTD
  • Thermometer
  • Sample valve
  • Racking arm
  • Drain with fittings
  • CIP pipes



Certifications




Customers reference


We have customers in almost every concer of the world, including Ireland, UK, Switzerland, Sweden, Belgium, Italy, Germany, Czech, Turkey, South Africa, USA, Chile, etc… We are willing to give you contact info of our customers if you need.



Delivery and package


Standard packing:

  • Cord ,film membrane
  • Firm membrane, wood box for free fumigation

Delivery :

  • We put your order into our tight production schedule to ensure the punctual delivery time.
  • Production or inspection report before your order packed.
  • Shipping notice/ insurance to you as soon as your order is shipped.



Our services


  • As owning an experienced and creative engineering team, we could offer you professsional solutions for your plant and equipment.
  • If you already have solutions, we could fabricate the equipment exactly as per your request.
  • We could offer you trainning of brewing craft beer and operating equipment if needed
  • 36months warranty
  • Meanwhile, you can call or email to consult any relevant questions since we have a special line of after sale service, or you can communicate online and solve the problems
  • Design of layout and 3D drawings
  • Installation of craft beer brewing equipment



Contact us


If you are interested in our beer brewing system, feel free to let me know
