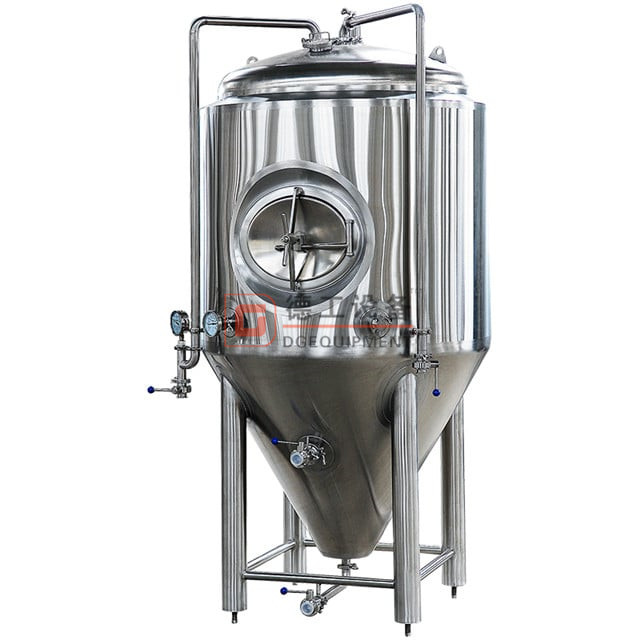

1000L Stainless Steel Universial fermentation Tanks Beer fermentor with Top / Side Hatch

The fermentation area consists of a specific (at the customer’s choice) number of CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.

CCT have a cooling jacket over the entire height of the cylindrical and conical part.  ССT are warmed by polyurethane foam 70-100 mm thick. The external covering of CCT is made of food mirror stainless steel.

Descripción

Fermentation system features:

The fermentation area consists of a specific (at the customer’s choice) number of CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.

CCT have a cooling jacket over the entire height of the cylindrical and conical part.  ССT are warmed by polyurethane foam 70-100 mm thick. The external covering of CCT is made of food mirror stainless steel.

QQjietu20191227101231.webp-min

Fermentation Tanks with side hatch

CCT equipped with:

  • top or side (at the choice of the client) the inspection sealed hatch;
  • a small hatch for a yeast (top hatch);
  • fittings for connecting CIP-station and carbon dioxide baloon;
  • rotary washing head;
  • bottom valve for draining yeast sediment and washing liquid;
  • tap for supply wort and beer drain;
  • sampling valve;
  • beer temperature sensor;
  • automatic valve.

bright-beer-tank-detail-min

Fermentation tank components
such as side manhole;thermometer,carbonation stone etc.
Brewery fermentation tank’s Technical parameters:

-Head space: 25%

-Thickness: Inner shell 3mm;outer shell 2mm

-100mm insulation

-Dimple cooling jacket with inlet and outlet

-Top dry hopping

-Shadow less side man way

-Relief valve

-CIP connections

-Racking arm

-Temperature and pressure gauges

-Level gauge, carbonation stone, sight glass as option

清酒正反-min

tanque de cerveza brillante

Bright beer tank features:

  • Glycol cooling jacket on cone and bottom
  • Side or top manway
  • CIP arm and CO2 blow off arm
  • Mechanical relief valve
  • Shockproof pressure gauge
  • Rotating racking arm
  • Dry hopping port
  • piedra de carbonatación
  • Sight level

拼图1_副本

Components(pressure gauge;safety valve,raking arm etc.)

Our services:

1. Will provide tank design drawings for your confirmation before production;

2. Customized design is avaliable;

3. Packing & Delivery:

Packing: LCL: Plstic films, bubble films, steel frame, wooden case

FCL: Plstic films, bubble films inside the container

Delivery time: 30-35 days depends on quantity

4. Warranty:

We’ll provide free maintaining the main equipment within three years and accessory equipment within one year.

We’ll supply lifetime maintenance and technical service.

H2-min

Pakage and delivery

Información del contacto:

If you have any qustions about beer brewing equipment,please feel free to contact me.
