Single compressor water cooled screw chiller

Description

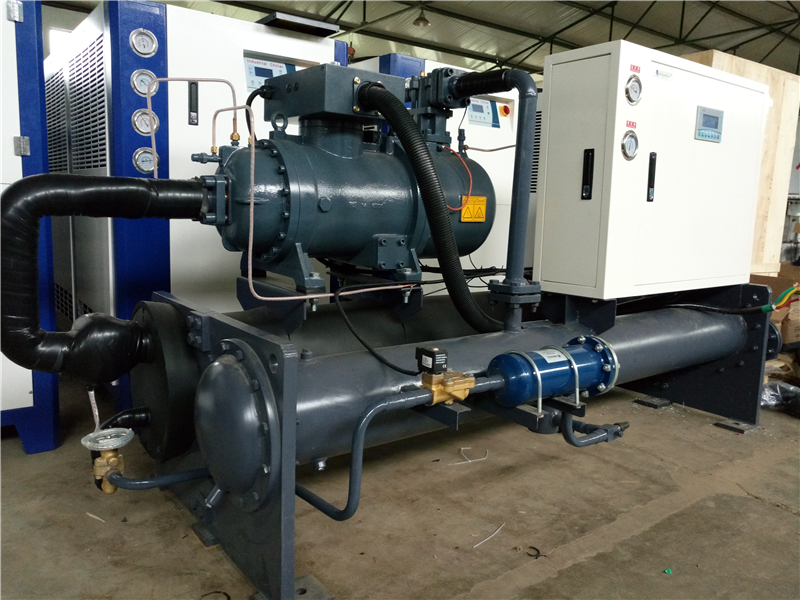

Single Compressor Water Cooled Screw Chiller

Model ：DGET-WS

No.：13

Application

They are also widely used in Plastic Injection & Molding,Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Electronics industry, Textile,

Electroplate, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military.

Our chillers can be used in almost every industry that need cooling ,as long as your cooling product is one of industry above, please kindly contact us

Water Cooled Screw Chiller
Model		DGET-30W	DGET-40W	DGET-50W	DGET-60W	DGET-70W	DGET-75W	DGET-85W	DGET-90W	DGET-100W	DGET-110W
Cooling capacity	USRT	25.1	34.2	44.9	48.9	59.6	65.4	77.1	81.4	89.1	96.4
	Kcal/h	75938	103458	135794	147834	180256	197800	233060	246304	269524	291712
	KW	88.3	120.3	157.9	171.9	209.6	230	271	286.4	313.4	339.2
Power supply		3PH-380V-50Hz
Refrigerant	Type	R22
	Control	Thermostatic expansion valve
Compressor	Type	Semi-hermetic screw
	Power(kw)	21.4	28.2	35.4	38.8	47.2	51.4	57.9	60.9	67.0	73.1
	Start	Y-△
	Capacity	25-50-75-100（%） or 25-100（%）
Evaporator	Type	Shell and tube
	Water flow(m³/h)	15.1	20.6	27.1	29.5	35.9	39.4	46.5	49.1	53.7	58.1
	Dia.of inlet/outlet(inch)	DN50	DN65	DN80	DN80	DN80	DN80	DN100	DN100	DN100	DN100
Condenser	Type	Shell and tube
	Water flow(m³/h)	20.7	28.0	36.5	39.7	48.4	53.1	62.0	65.5	71.7	77.7
	Dia.of inlet/outlet(inch)	DN50	DN65	DN80	DN80	DN80	DN80	DN100	DN100	DN100	DN100
Protection System		Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	2300	2500	2500	2500	2800	2800	3200	3200	3500.0	3500.0
	W	750	750	750	750	800	800	800	800	900	900.0
	H	1500	1500	1500	1500	1500	1500	1500	1500	1500	1800.0
Noise	dB	73.1	73.7	74.8	78.4	79.0	79.2	79.6	80.4	80.4	83.1
Weight	kg	660	700	800	975	1000	1150	1250	1400	1600	1750

Model		DGET-120W	DGET-140W	DGET-150W	DGET-160W	DGET-170W	DGET-1750W	DGET-200W	DGET-220W	DGET-240W	DGET-280W
Cooling capacity	USRT	106.2	126.4	133.4	146.1	158.2	164.3	191.3	210.1	224.3	252.8
	Kcal/h	321124	382184	403512	441782	478418	496822	578608	635454	678454	764712
	KW	373.4	444.4	469.2	513.7	556.3	577.7	672.8	738.9	788.9	889.2
Power supply		3PH-380V-50Hz
Refrigerant	Type	R22
	Control	Thermostatic expansion valve
Compressor	Type	Semi-hermetic screw
	Power(kw)	81.3	94.4	99.7	108.1	116.3	120.0	138.3	153.4	162.9	183.2
	Start	Y-△
	Capacity	25-50-75-100（%） or 25-100（%）
Evaporator	Type	Shell and tube
	Water flow(m³/h)	64.0	76.2	80.4	88.1	95.4	99.0	115.3	126.7	135.2	152.4
	Dia.of inlet/outlet(inch)	DN100	DN125	DN125	DN125	DN150	DN150	DN150	DN150	DN150	DN150
Condenser	Type	Shell and tube
	Water flow(m³/h)	85.7	101.6	107.3	117.3	126.8	131.6	153.0	168.3	179.5	202.2
	Dia.of inlet/outlet(inch)	DN100	DN125	DN125	DN125	DN150	DN150	DN80*2	DN100*2	DN125*2	DN125*2
Protection System		Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	3500	3800	3800	3800	4000	4000	4000	4000	4000	4000
	W	900	900	1200	1200	1200	1200	1200	1200	1200	1200
	H	1800	1800	1800	1800	1800	1800	1800	1800	1800	1800
Noise	dB	83.1	84.2	85.2	86.3	86.6	86.9	87.1	87.3	87.6	88.4
Weight	kg	1750	1850	2000	2000	2200	2200	2400	2400	2400	2400

Remarks:

1. Test Cooling Condition: Chilled water inlet/outlet temperature 12°C /7°C;Cooling water inlet/outlet temperature 30°C/35°C

2. Power supply: 3Ph-380V-50HZ;with voltage allowance ±10%,voltage difference between the phase lines±2%;

3. The data above is for R22, contact us if that for R134a,R407c and other refrigerant need;

4. There may be Changes for improvement without notice, confirm always before your order.

Ø Environmental friendly refrigerant R407c,R134a,R410a Available

Ø Advanced semi-hermetic 5:6 asymmetric double compressor from world-renowned brand;

Ø New screw type compressor with 20%-30% higher in efficiency;

Ø Cooling capacity control available at four steps(100%-75%-50%-25%), three steps(100%-66%-33%) or no steps control system;

Ø Stainless Steel, cast iron shell and tube evaporator (Consult Factory for specific information on your model)

Ø Electronic expansion valves for increased efficiency and precise temperature control

Ø Complete refrigerant charge from Factory

Ø Continuous Capacity control

Ø Controlled by microcomputer way

Ø Comprehensive protection system
