Description
3/5/7BBL all grain brewing system overview
All grain brewing system brewhouse system
Combination:
Mash/lauter tun +boiling/whirlpool tun+hot water tank(optional)
Mash tun+lauter tun+boiling/whirlpool tun
Mash/lauter tun+boiling tun+whirlpool tun
Heating method:steam/electric/direct fire heating
Capacity:100L-5000L, 1bbl-40bbl.
Mash tun with mixer, steam jacket, VFD motor, insulated 80mm. Stainelsss steel 304.
Lauter tun with rake system, milled false bottom, sparging spray ring,VFD motor, insulated 80mm.
Boiling tun with steam jacket, inner heated option, insulated 80mm. Stainelsss steel 304.
Whirlpool tun with Tangential whirlpool inlet. insulated 80mm. Stainelsss steel 304.
External grant, hops back, heat exchanger.Wort oxygenation system, working platform.
All the necessary pipelines and pumps.
5BBL all grain brewing system
2 tanks 3-vessel brewhouse system
All grain brewing system fermentation system(FV+BBT)
Capacity: 100L-30000L, 1bbl-100bbl, +25% Head space
Material:stainless steel 304/316
Interior shell thickness 3-6mm, Exterior shell=2mm
100% TIG welding with pure argon gas shield
Interior finish: pickled and passivated, external polished, 80mm insulated
Test pressure 3 bar, working pressure 1.5 bar
60°conical bottom for Fermenter, Shadow less side man way
Racking arm, Sample valve, Pressure relief valve on the top, Dry hopping on the top
Mechanical relief valve 3 bar on CIP arm with pressure gauge
Adjustable tank leveling pads
5BBL fermentation tanks

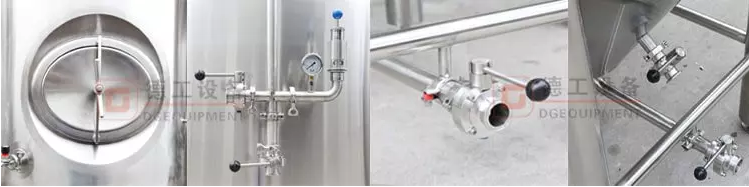

fermentation tank details(side manhole, mechanical regulation valve, drain outlet, raking arm)
What’s the advantage of welded ports?
1-Welded fittings are objectively better (thus the reason they cost more). They are stronger, more sanitary and will never fail. However not all welded fittings are the same. A popular term when talking about welded fittings is ‘sanitary welded’ or ‘back purged’.
2-When stainless steel is melted during welding it can’t come in contact with oxygen otherwise it’ll ‘sugar’ and produce a nasty compromised weld area. That is why inert argon gas is used during welding to shield the weld puddle from oxygen.
3-If you do not perform back-purge here, but sand down the “sugar” and the annoying back weld. To the naked eye this will look smooth (most of the time) however the material has been compromised and will form pits, cracks, rust, etc overtime. That’s why you’ll be able to see a weld bead on the inside of our fittings. we weld our tanks correctly and we’re proud of that beautiful looking sanitary weld.
the tanks welding
