500L small business customized craft brewery equipment 2 vessels electric beer brewhouse

Beer Brewhouse contains four function of mash,lauter,boiling,whirlpool.They can be combined freely according to customer’s cost,space……….Usually 500L beer brewhouse assembly adopted with 2-vessels: Mash/ Lauter tun and Kettle/Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.

Description

Beer Brewhouse contains four function of mash,lauter,boiling,whirlpool.They can be combined freely according to customer’s cost,space……….Usually 500L beer brewhouse assembly adopted with 2-vessels: Mash/ Lauter tun and Kettle/Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.



2-vessels beer brewhouse features


Mash/Lauter tun assembled with rakers and false bottom for grains separation.

Brew kettle assembled with mash agitator, condenser tube and also has whirpooling functions.

Hot water tank as a optional

Two stage heat exchanger used for wort cooling by city water and and glycol water.Meanwhile the heated city water(after cooling wort the water will change to hot) can be used for next brewing or cleaning tank to save energy.The system also configure with two sanitary frequency controller pumps, providing a low transfer speed for filtration and sparging and high transfer speed for intensive and effective system cleaning.All of the pipes and valve are food grade SUS304.

2-vessels beer brewhouse

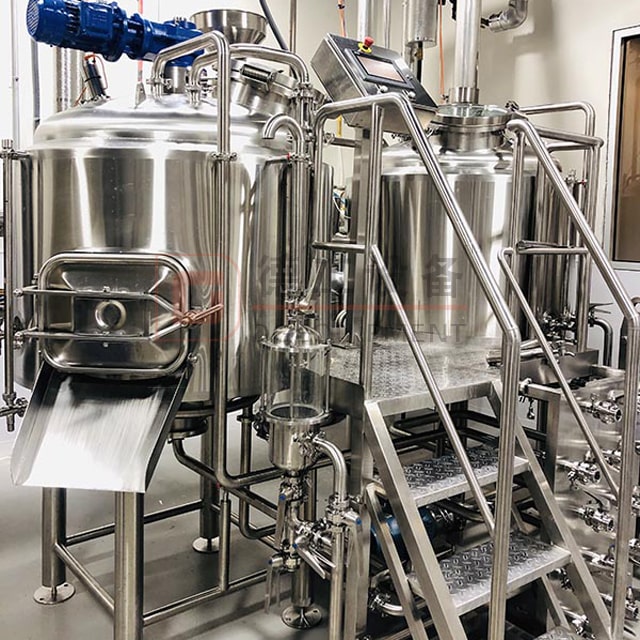

Craft brewery equipment 2-vessels beer brewhouse: Mash/lauter tank+Kettle/whirlpool tank



– All tanks are made of food grade stainless steel 304.

– Volume + ~30% headspace

– Adopting advanced world famous brand components in electric parts and operation parts.

– VFD ABB motor for wort pump, raker and blender

– PLC automatic control method

– Inner surface treatment: welds grinded to Ra 0.4µm without dead corner

– Outsourcing surface: weld polishing processing

– All welding are used argon gas protection welding. It will help to reduce the oxygenation and protect the joint. Our welders has many years experience in welding and they adopt the most popular welding way–TIG welding.

– TC connected CIP arm with 360° coverage spraying ball

– Dished top and conical bottom

– Internal 2B finishing, welds polishing to 0.4um

– steam jacket–3.0Bar designing pressure



Component of the 2-vessels 500L beer brewhouse of craft brewery equipment


1.Mash/Lauter tank

Function–mashing,lautering

Gross capacity:650L,

Useful capacity:500L

Outline size: φ1060*2150 mm(Customizable)

Inner:SS304.TH=3.0mm      Outer:SS304.TH=2.0mm

Jacket(SUS304),thickness:1.5mm;

Insulation thickness: 80mm;

Assembly:

-Top domed glass manhole

– Raker motor

– Lighted sight glass.

– Temperautre sensor probe

– Auto spent grain out by reversing rakes

– False bottom with 0.7mm gap;

-Spent grain manway;

-Wort sprinkling provided by sparging semicircle or spray balls.

2. Kettle/whirlpool tank

Gross capacity:650L,

Useful capacity:500L

Outline size: φ1060*2150 mm.

Inner:SS304.TH=3.0mm      Outer:SS304.TH=2.0mm

Jacket(SUS304),thickness:1.5mm;

Insulation thickness: 80mm;

Steam jacket–0.3MPa pressure max

Assembly:

-Top domed glass manway door.

-Agitator motor

-Lighted sight glass.

— PT100 temperautre sensor probe
