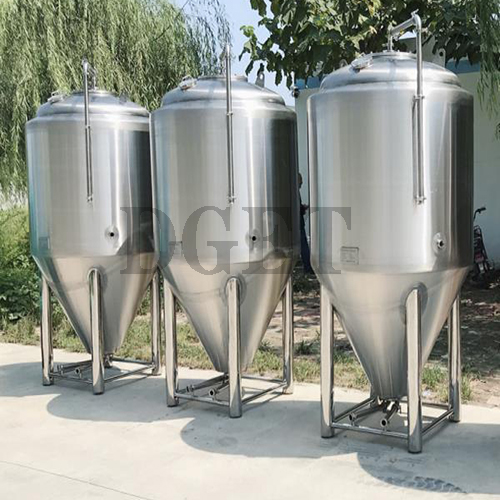

1500L Stainless Steel  Cooling Jacket Conical Fermenters


Stainless Steel  Conical Cooling Jacket Fermenters

Design pressure :0.3Mpa; working pressure:0.12-0.15Mpa

4 stainless steel legs with leveling footpads

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish bright polish to 0.6um

60 degree cone bottom, other angles can be specified during the design process

Combined drain extensions and beer port in cone are standard

25% headspace, unless a different volume is requested

Top manhole or side manhole

Dual zone in sidewall and cone dimple cooling jacket with glycol inlet and outlet

Polyurethane insulation thickness 100mm for cooling jacket on side and bottom

Fully welded exterior shell

CIP arm and rotating 360 degree reach spray ball

Solenoid relief valve, pressure relief valve (safe valve) are standard

Pressure gauge

Temperature sensor well

Sanitary sample valve and port

All clamps and gaskets to attach all accessories

Tank complete with piping, fittings, sanitary valves and all parts.

Carbonation port is available for special request (stone not included)

Ladder hooks is available for special request

Dry hop ports and/or hop bag hooks in any fermenter of any size for special request

If you are would like to change, add, remove or modify any part of the tanks, we can accommodate that.

Side manway of Cooling Jacket Fermenters

The designer of cooling jacket for brewpub or restaurant must consider,

· Aesthetic

· Space Utilization

· Safety

· Easier Operation

· Waste Water Treatment

· Lower Cost

If you are interested in our beer brewing equipment,please feel free to contact me.
