Description
Minibrewery Equipment is suitable for small brewery business who supply fresh/craft beer within their own venue such as small bars, 100-300 sets restaurants etc. Usually the breweries include more flavors of beer and sell beer with kegs or taps or directly from the fermentation tanks. To turnover the fermentation tank quickly, serving tanks are also needed.

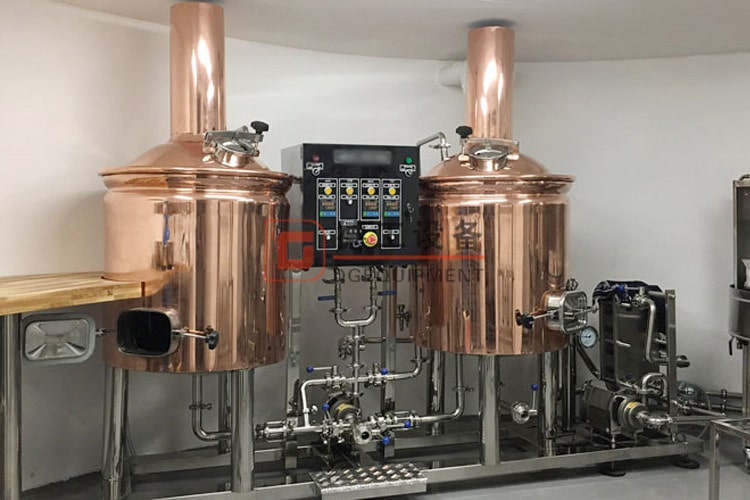

200L copper brewery equipment
|
Minibrewery Equipment |
Configuration |
Main specification |
|
Mill system |
Mill machine |
Disc type mill or roller mill The size of particle can be adjusted |
|
Brewhouse unit |
Mash/Lauter tun |
200L 25% head space Spent grain hatch sight glass CIP |
|
Boiling/Whirlpool tun |
200L 25% head space Bottom and side jacket, temperature probe Top glass manhole Control box |
|
|
Wort pump |
Stainless steel 304 food |
|
|
Operation plateform |
Stainless steel 304 |
|
|
Plate heat exchanger |
Completely 304SS corrugated plates Two stages |
|
|
Optional |
Wort grant Hopper Pneumatic valve Wort flow meter Sterile air compressor |
|
|
Fermentation unit |
Fermentation tank |
200L/400L 25% head space, Jacketed and insulated Conical bottom, Pressure valve, relief valve CO2 relief valve Coolant inlet and outlet Sample valve Top manway Top, Dry Hopping Port CIP connections Wort inlet and yeast outlet Racking arm Temperature and pressure gauges |
|
200L/400L 20% head space, Jacketed and insulated Dished head&bottom Pressure valve, relief valve Site Glass level Carbonation stone assembly Sample valve Top manway Fill/drainage port CIP connections Temperature and pressure gauges Jacketed and single wall tanks |
||
|
Cooling system |
Refrigeration unit Chiller |
for the temperature reducing |
|
Control system |
Control Cabinet |
Electrical controlling cabinet with temperature, on-off controlling for brewhouse Electrical controlling cabinet with temperature, on-off controlling for cooling parts Temperature controller, thermocouple, solenoid valves etc are included PLC with touch screen panel for special request |
|
Cleaning system |
alkali tank acid tank |
High-quality SUS304 Argon protection welding inner and outer polishing processing |
|
Packing system |
Bottle line packing system |
|
|
Packing system of cans |
Cans are made of tinplate |
|
|
Additional system |
Kieselguhr filter |
CO2 prepare pressure→fill water→exhaust→pre-coat coarse diatomite→pump the beer and diatomite mixed liquor→recycling→filter beer production→finish→push the beer→discharge the diatomite→cleaning→update diatomite |
Minibrewery Equipment Fermentation tank details
horizontal lagering tank
DEGONG advantage
1-We have certificates, like ISO, CE, TUV etc.
2-The warranty period of our equipment is three years. Before shipping, equipment (including pipes) will be marked to facilitate customer assembly.
3-DEGT is a professional company of beer brewery equipment ,nearly 10 years of beer equipment manufacturing history.(including Production→ Inspection→ Packing & Shipping→ Installation &Training → After Sales)will do its best to meet the needs of customers in all regions.
4-Since the establishment of the company, it has been well received by numerous customers.These products enable systematic execution of milling, mashing, fermentation, filtration, filling and other related processes. Before bringing these products to market, we rigorously test on each system to ensure that each brewing system is intact.
DEGONG factory
If you want to know more about minibrewery, get in touch with me any time.
