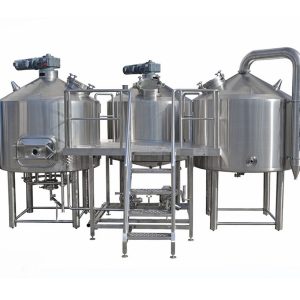

4 vessel 1000L stainless steel customized commercial brewery equipment for sale

Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

Hot water tank and cold water tank for optional in special combinations

Infusion or decoction brewing methods are designed exactly

Stainless steel are popular because of easy maintenance and clean, copper cladding for optional

Two stages or single stage heat exchanger for wort cooling

Completely stainless steel integrated work platform

Sanitary and efficiency wort pump

All pipings and fittings

Volume:500L-20000L

Design pressure: 0.3Mpa;Working pressure:0.12Mpa-0.15Mpa

Polyurethane insulation, side and bottom insulated

Dimple plate cooling jacket

Cooling stage: cylinder and cone

Exterior: stain removed, and brightened on regular margin

Interior surface: Polished, and welding joint acid cleaned

Domed top,Stainless steel leg, with adjustable leg bolt

Top fittings: CIP arm, spray ball, manhole (top or side)

Side fittings: Glycol inlet/outlet, thermometer well, sample port, manway (side or top)

Bottom fittings: Drain valve, beer outlet, carbonation unit (optional),CIP arm including pressure gauge, pressure regulating valve

Dry hopping port on top(optional)

1.Inner thickness:3.0mm;outer thickness:2.0mm

2.Jacket thickness:1.5mm

3.Inner surface treatment:welds grinted to Ra 0.6um

4.Mirror surface finish inside.

5.Insulation: Polyurethane-tjickness 100mm

6.cone 60 degree resist compression design,dripping

7.Heat exchange area: 5.1 m²

8.Vessel pressure：1.5 bar/3.0 bar
