500L micro craft brewing equipment Restaurant/Brewpub used electric heating beer brewery kettle

DEGONG provides a full adjustment of the pub brew and rest brew craft micro brewery with 1hl-10hl batch/day according to the customer pub/restaurant location with turnkey solution.The pub/restaurant brewery are developed and produced according to the individual design and beer consumption in the project place in order to maximize customer profit.

Description



500L micro craft brewing equipment

DEGONG provides a full adjustment of the pub brew and rest brew craft micro brewery with 1hl-10hl batch/day according to the customer pub/restaurant location with turnkey solution

The pub/restaurant micro craft brewing equipment are developed and produced according to the individual design and beer consumption in the project place in order to maximize customer profit. Composition of copper, stainless steel or copper with stainless steel dish heads provide beautiful look of pubs and restaurants with non-compromising quality of the beer.Classic micro brewery produced from 2HL to 20HL with 2 or 3 vessels mash system and electric or steam heating.

craft brewing equipment

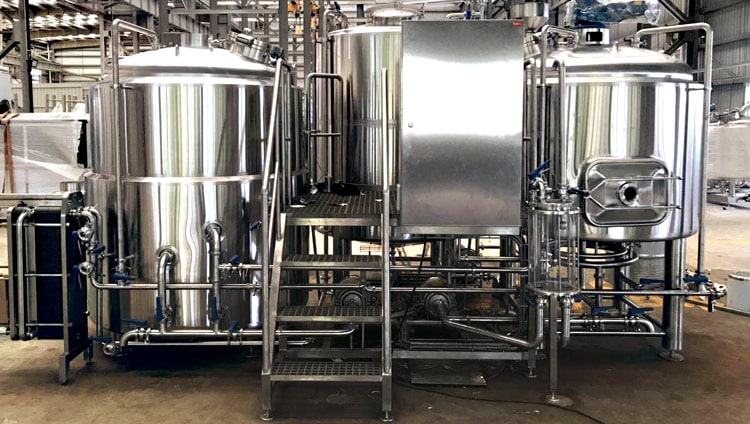

Stainless steel micro craft brewing equipment beer brewhouse



Items

Technical Parameters

Working capacity

500L per batch

Brewhouse type

MLT+KWT, M+L+KWT, M+L+K+W, Customized.

Raw Material

Food grade stainless steel or red copper cladding.

Heating way

Electric heating, Steam heating, Direct fire.

Insulation

Rock wool / 80-100mm

Tank wall

Outer wall 2mm / inner wall 3mm

Plate gap

Milling sieve plate ≤0.6mm; Material is SUS 304. (false bottom)

Polishing

Polishing precision up to mirror polish; better than Ra0.4µm

Platform

Food grade Stainless steel 304



Beer fermentation system of craft brewing equipment

Fermentation tankbright beer tanks and beer serving tanks produced by DEGONG are double jacketed, cooled, insulated by 100 mm of polyurethane and equipped with all needed accessories for successful beer fermentation. Our fermentation tanks produced as “Uni Tanks” and can be used as bright beer tanks also. Manholes can be side or up located according to the customer wishes.
Our fermentation and bright beer tanks have two separate cooling zones at cylinder and the cone of the tanks.

微信图片_20201013162615-min

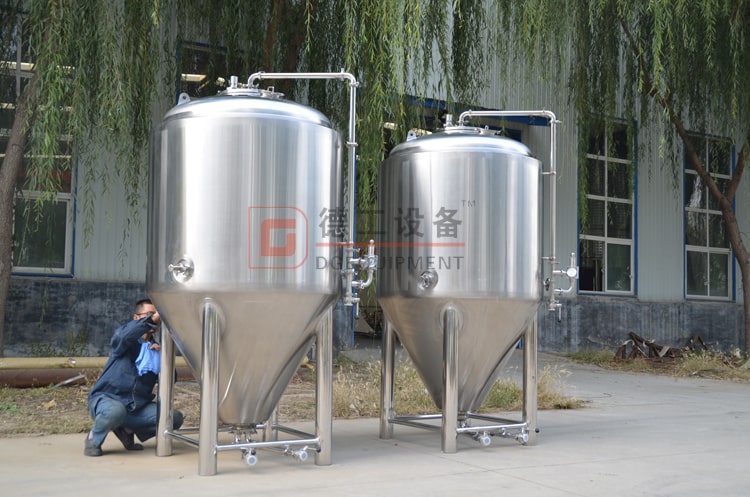

Beer fermentation tank

7BBL-brite-tank-new-1024x681-min

Vertical brite tank

QQ截图20200803161038

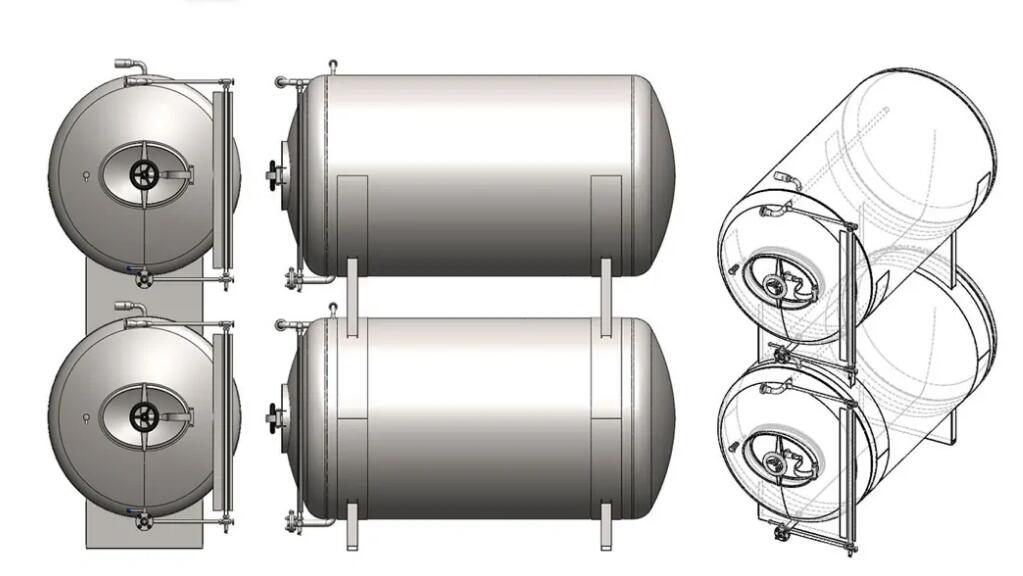

Horizontal brite tank

Useful capacity

Total capacity

Inner/outer diameter(mm)

Total height(mm)

100L

130L

500/640

1300

200L

260L

600/740

1750

300L

370L

700/840

1850

500L

630L

800/960

2150

1000L

1300L

1100/1300

2550

1500L

1800L

1200/1400

2900

2000L

2500L

1300/1500

3150

3000L

3850L

1500/1700

3750

5000L

6250L

1800/2000

4350



company introduction_副本servide

If you have interest in beer brewing industrial,welcome to contact me freely
