Storage tank Bright beer tank 4000L cylindrical stainless steel tank

Description

Also known as serving or druck tanks, these are cylindrical vessels with an arched head and “dish” bottom. They are designed for the storage of finished beer under pressure until it is ready to be packaged or served. Available in vertical and horizontal (with inliners) versions.

Tank body
• Tanks are made with torispherical top and bottom
• Service manhole with thermal insulated cover: whatever the position of the manhole you choose, it is perfectly embedded into the tank body leaving no blindsides for a jet of cleaning agents
• Tanks are produced of the stainless steel material: Wnr. 1.4301 (X5CrNi18-10)
• The inside surface is etched and passivated with an average roughness minimum 0.6 µm to avoid hardly cleanable infection points inside the tank

Bright beer tank 4000L beer brewery equipment

Chilling
• Depending on the size, each tank is equipped with 1,2 or 3 cooling jackets
• Cooling jackets are made with advanced technology “pillow” by means of plasma spot welding, which provides high-pressure resistance of the jacket with less material

Coating, thermal insulating
• For more efficient energy saving, all tanks have 100 mm polyurethane foam for thermal insulation
• Tanks are produced with stainless steel pressure casing effected by means of automatic welding
• Optional outside surface quality• Basic version of a tank has thermal insulated and coated cylindrical body and bottom

Function : storage
Product applications : for beer
Material :stainless steel
Type : cylindrical
Applications : industrial
Other characteristics: vertical, horizontal, with level sensor, high-pressure
Capacity: Max.: 50,000 liters ; Min.: 500Liters

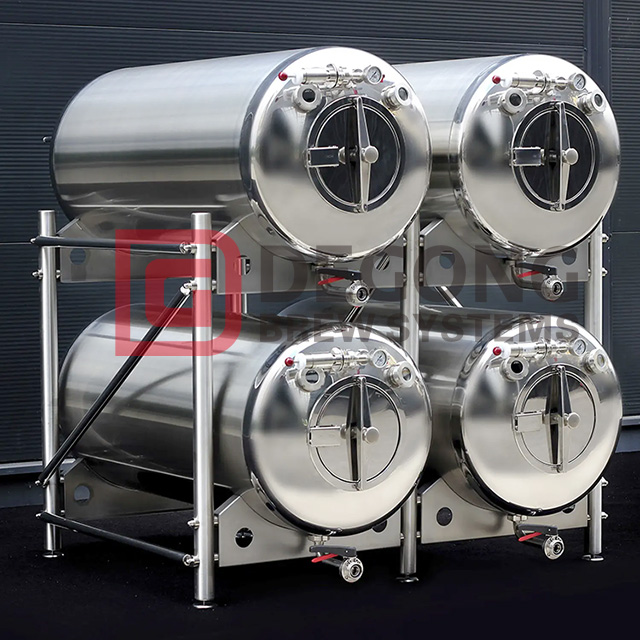

Stackable horizontal tanks bright beer tanks



Bright beer tank Details:

● Domed top and bottom
● With 10-20% head space for Beer storage
● Wall thickness: 3-5mm, depending on tank size
● Pressure: 2-3 bar / 15-30PSI
● Dimple plate cooling jacket on cylinder, Polyurethane insulation, thickness: 80-100mm
● Four adjustable legs, with leg bolts
● Diaphragm pressure gauge with CIP arm
● Top: with CIP arm, breathe valve, optional dry hopping port
● Cylinder: Glycol inlet / oulet, side manway, PT100 / 200, sample valve, level tube (optional)
● Bottom: bottom beer / yeast outlet

Optional:
● PED certification
● Kieseman bunging valve
● Side or top manway
