1000L brewing system commercial turnkey craft beer brewery equipment manufacturer

1000l brewing system is widely used in restaurants, pub and bars. DEGONG micro brewing equipment has high production efficiency and can produce delicious craft beer. The brewery equipment design of equipment has greater flexibility and can adapt to the actual layout of different bars, restaurants. If craft is the soul of brewing, then the equipment is the skeleton of brewing.

Description

1000L brewing system is widely used in restaurants, pub and bars. DEGONG 1000l brewing system has high production efficiency and can produce delicious craft beer.

The 1000l brewing system design of equipment has greater flexibility and can adapt to the actual layout of different bars, restaurants. If craft is the soul of brewing, then the equipment is the skeleton of brewing.

DEGONG 1000l brewing system in brewpub





1000L brewing system introduction

Beer brewhouse bacic configuration-1000l brewing system
MASH/LAUTER TANK

• Volume + ~30% headspace
• Inner-shell (SUS304), thickness: 3.0mm;
• External-shell (SUS304), thickness: 2.0mm;

•Jacket(SUS304),thickness:1.5mm;

•Cone bottom thickness: 3.0mm;
•Insulation thickness: 100mm;
• Internal 2B finishing, welds polishing to 0.4um
•Mash rakes
•Auto spent grain out by reversing rakes
• Sparge arm; False bottom with 0.7mm gap;
• PT100 Temperature sensor probe;
• Spent grain manway;

• Top glass manhole
• CIP spray ball

BOILING/WHIRLPOOL TANK

• Volume + ~30% headspace
• Inner-shell (SUS304), thickness: 3.0mm;

•Jacket(SUS304),thickness:1.5mm;
• External-shell (SUS304), thickness: 2.0mm;
• Cone bottom thickness: 3.0mm;
• Insulation thickness: 100mm;
• Internal 2B polishing, welds polishing to 0.4um

• Tangential port
• Sight glass manhole

•Boiling agitator

• PT100 Temperature sensor probe;
•CIP spray ball

               2 vessels beer brewhouse
HLT

• Volume + ~15% headspace
• Inner-shell (SUS304), thickness: 3.0mm;
• External-shell (SUS304), thickness: 2.0mm;

•Jacket(SUS304),thickness:1.5mm;
• Dish bottom thickness: 3.0mm;
• Insulation thickness: 100mm;
• 2B finish, welds polishing to 0.4um
• Sight glass
• PT100 Temperature sensor probe;
• Top manhole
• CIP spray ball

CLT

• Volume + ~10% headspace
• Inner-shell (SUS304), thickness: 3.0mm;
• External-shell (SUS304), thickness: 2.0mm;

•Jacket(SUS304),thickness:1.5mm;
• Dish bottom thickness: 3.0mm;
• Insulation thickness: 100mm;
• 2B finish, welds polishing to 0.4um
• Sight glass
• PT100 Temperature sensor probe;
• Top manhole
• CIP spray ball

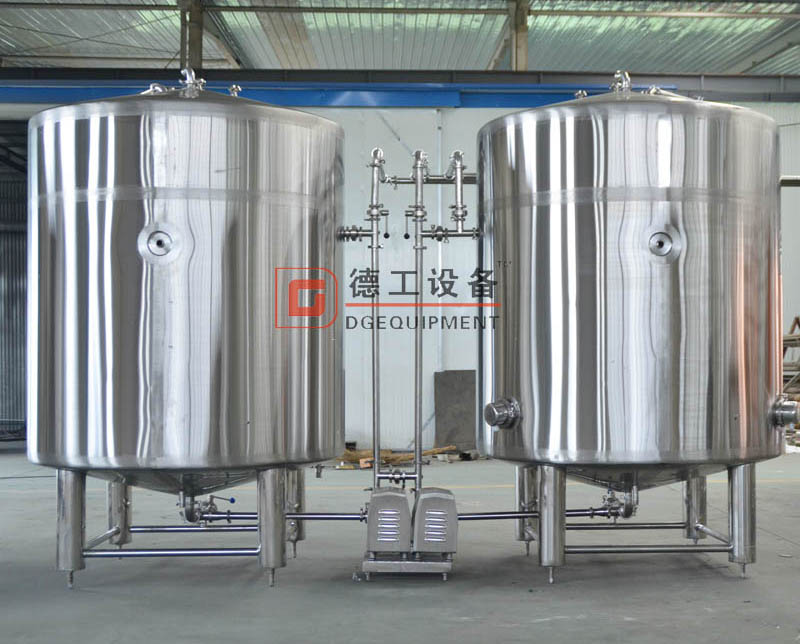

              hot water tank and cold water tank
STANDARD ACCESSORIES OF BREWHOUSE

• Operate Platform
• Stainless steel Pipes, valves, clamps & seal
• Heat exchanger
• Transfer Pump

•Control panel

•Grant/Hop back



2.Fermentation tank-1000l brewing system

•Material Inner (AISI304)thickness: 3.0mm; Outer(AISI304)thickness:2.0mm

•External-Jacket(AISI304) thickness: 1.5mm;

•Oval head cone bottom, thickness: 3.0mm.

•Inner Surface: Mirror polishing

•Inner surface treatment: welds grinded to Ra 0.6μm (attached 360 degree Omni cleaning ball).

•Vessel Pressure: 1.5 bar / 3.0 bar

•Insulation: Polyurethane-thickness100 mm.

•Equipment with : cone 60°resist compression design

•Heat exchange area:2.69㎡

•Side mahole

•Cleaning ball

•CIP pipe

•Lifting ear

•Cooling jacket,two cooling zone

•Temperature sensor

•Pressure guage

•Machinery regulator

•Breathing valve

•Hops adding hole

•Simple valve

•Raking arm

•carbonation stone

fermentation tank

未标题-2ff-min





























































Our service

  • As owning an experienced and creative engineering team, we could offer you professional solutions for your plant and equipment.
  • If you already have solutions, we would fabricate the equipment exactly as per your request.
  • We could offer you training of brewing craft beer and operating equipment if needed.
  • Equipment can be customized according to your request.
  • We also offer you 36 months warranty.

QQ图片20180314134103















Company information

DEGONG Brewery equipment can used in commercial brewery or brewpub or restaurant.DEGONG can provide any type of brewing equipment according to your requirement.If you have interest,please get in touch with me freely.
